Janisol Fenster Arte 2.0

Filigranes Stahl-Fenster mit attraktiven Werkstoffoptionen – stilgerecht Renovieren und modern Bauen

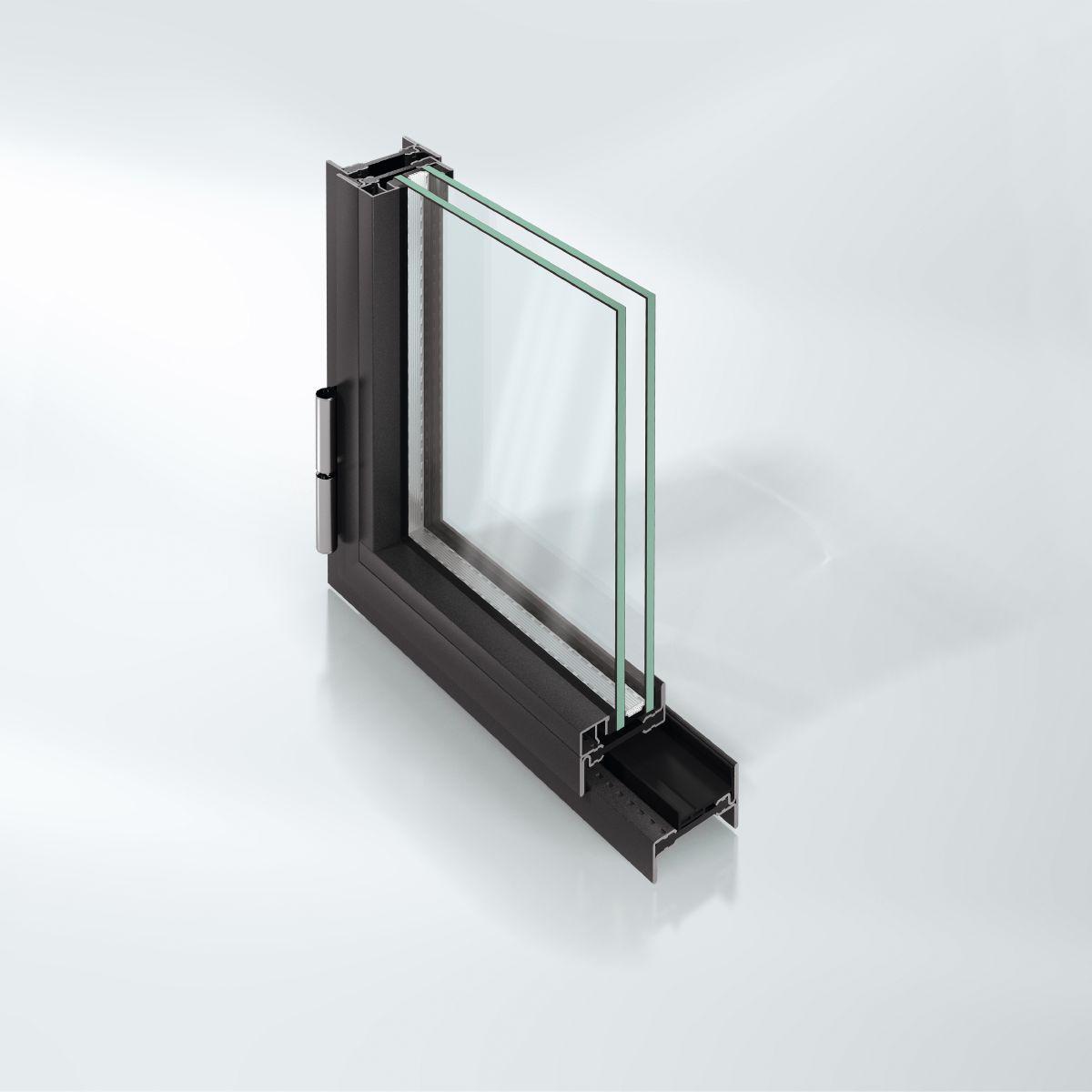

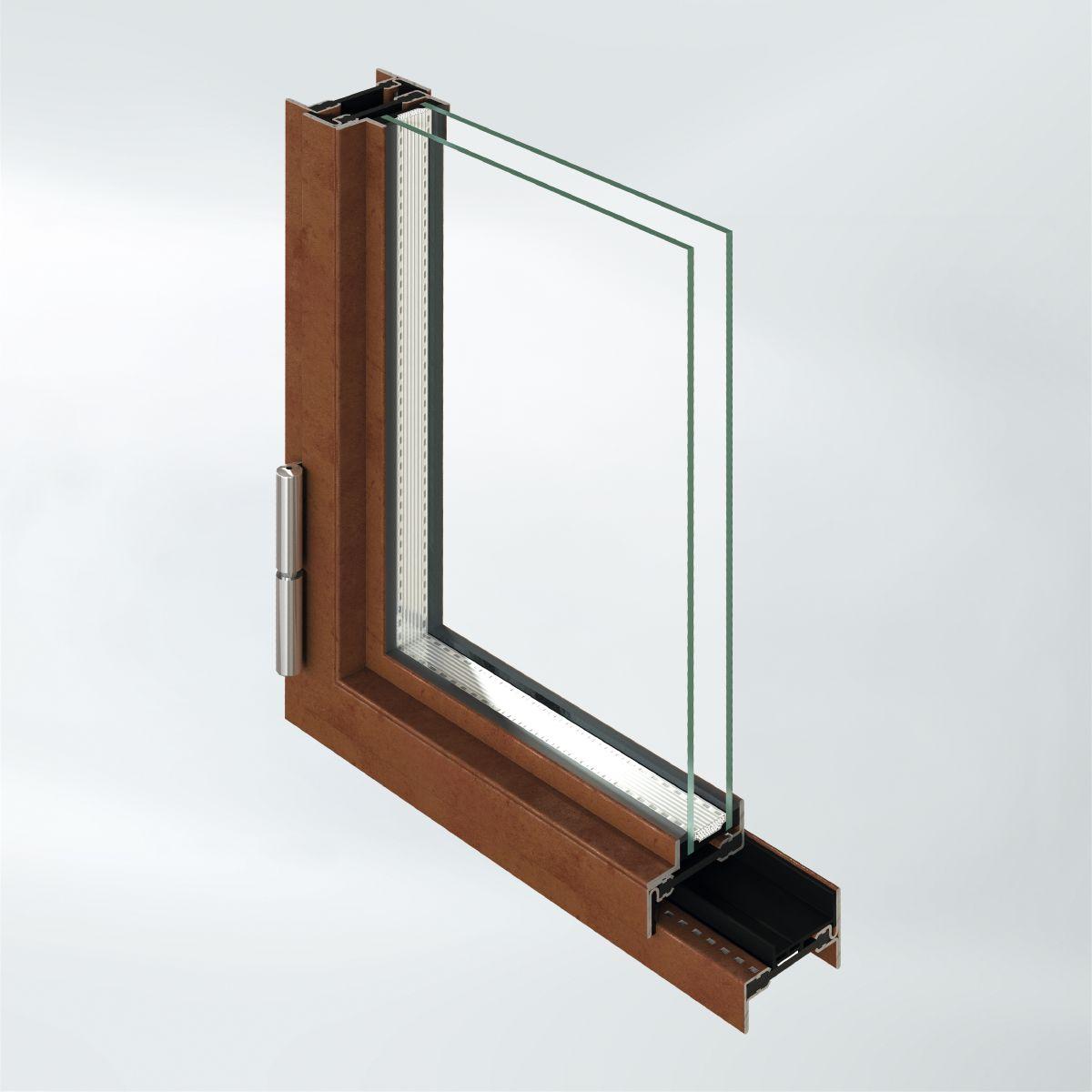

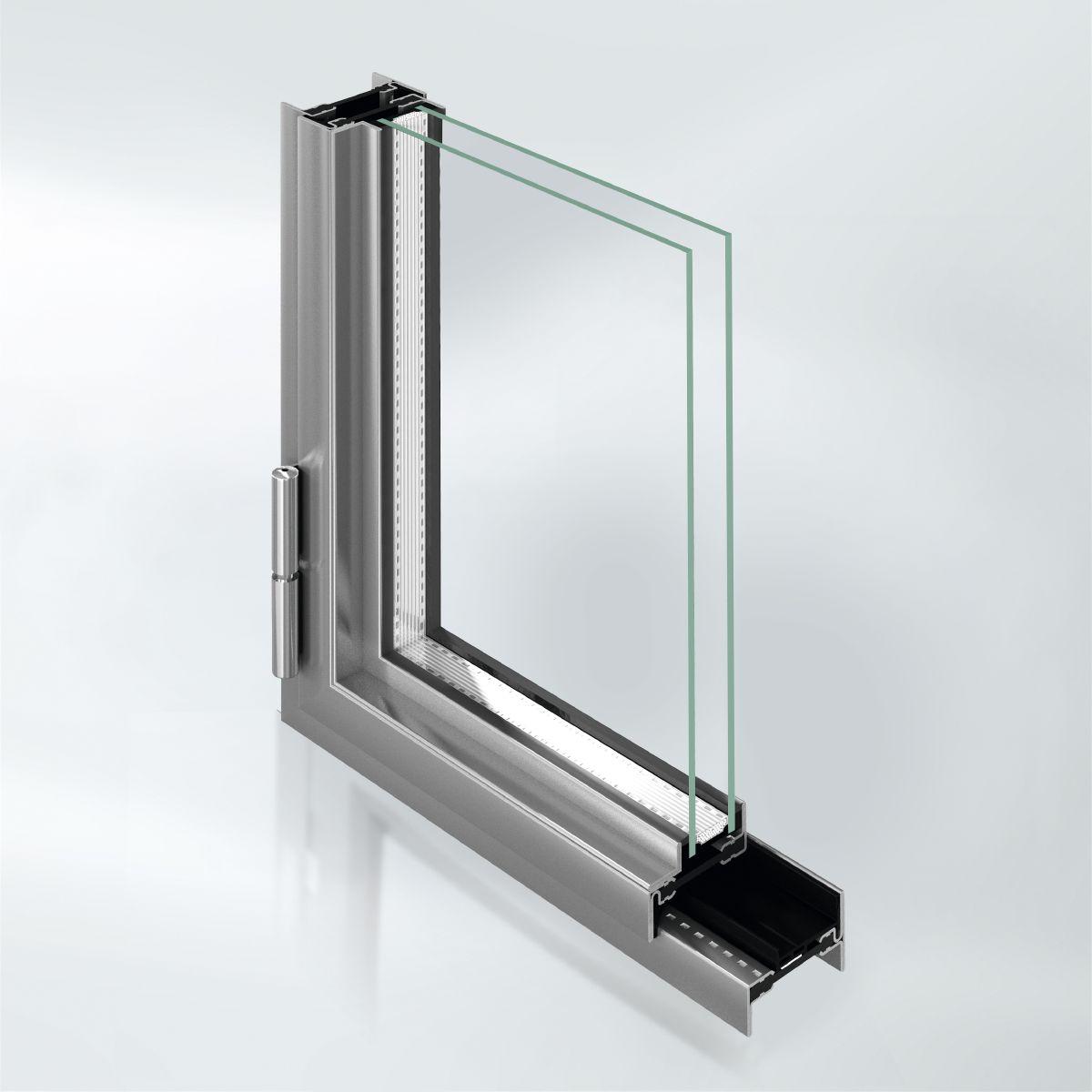

Das Stahl-Profilsystem Janisol Arte 2.0 ist speziell für die denkmalgerechte, werterhaltende Renovierung von Industrie- und Loftverglasungen konzipiert. Für ein Plus an Designspielraum sorgt die erweiterte Werkstoffpalette mit Profilausführungen in Edelstahl und Cortenstahl.

Ein breites Spektrum an Öffnungsarten ermöglicht die nahezu perfekte Rekonstruktion historischer, nach innen oder außen öffnender Dreh-, Stulp-, Kipp-, Klapp-, Senkklapp-, Schiebe- oder Schwing-Fenster – mit exzellenter Wärmedämmung und Stabilität.

Dank schmaler Profilansichtsbreiten mit größtmöglichen Glasanteilen können attraktive filigrane Fensterlösungen realisiert werden – auch für den Einsatz im modernen Wohnbau.

Umfangreiche Systemprüfungen unter Berücksichtigung aller statischen, bauphysikalischen und sicherheitstechnischen Anforderungen gewährleisten eine sichere Planung, Verarbeitung und Montage.

  • Umfangreiche Werkstoffpalette: Profilausführungen in Stahl, Edelstahl und Cortenstahl
  • Große Vielfalt an Öffnungsarten für nach innen und nach außen öffnende Fenster
  • Schmalste Ansichtsbreiten
  • Variantenreiche Profilgeometrien ermöglichen eine flexible Planung
  • Umfangreiches Glasleisten-Sortiment für historische und moderne Fensteroptiken

Min face width

45 mm

Max. glass/panel thickness

47 mm

Max. vent width

1000 mm

Max. vent height

2400 mm

Max. sound reduction index Rwp

45 dB(A)

Air permeability

Class 4

Watertightness

Class 9A

Burglar resistance

Up to RC 2

Wind load resistance

Class C4

CE marking

Yes

Total basic depth

60 mm

Width of vent frame

60 mm

Max. vent weight

150 kg

Min.-max. vent height

370...2400 mm

Min.-max. vent width

370...1000 mm

Outer frame face width

25 mm

Vent frame face width

45 mm

Max. face width of mullion

80 mm

Min.-max. face width of mullion

40...80 mm

Max. face width of meeting stile

60 mm

Min.-max. face width of meeting stile

60 mm

Min.-max. glass/panel thickness

10...47 mm

Area of application

External use, Residential projects, Commercial projects, Window

Concealed fittings system

Surface finishes

Stainless steel, RAL, Powder, Paint, Corten steel

Glass composition

Triple glazing

Barrier-free operating forces in accordance with DIN 18040

TipTronic

Opening type: TipTronic, inward-opening

Opening type: manual, inward-opening

Side-hung, Bottom-hung, Double-vent side-hung / side-hung, Toplight, Horizontal pivot, Vertical pivot, Horizontal/vertical pivot, Fixed light

Opening angle

180 °

Mechanical strength

Class 4

Proof of durability

Class 4

Corrosion protection class for fittings

Ug value of glass (≤)

0.5 W/(m²·K)

Drainage levels

2

Integrated sun shading

Security glazing

Yes

Suitable for safety barrier loading

Yes

Colour-independent

Yes
