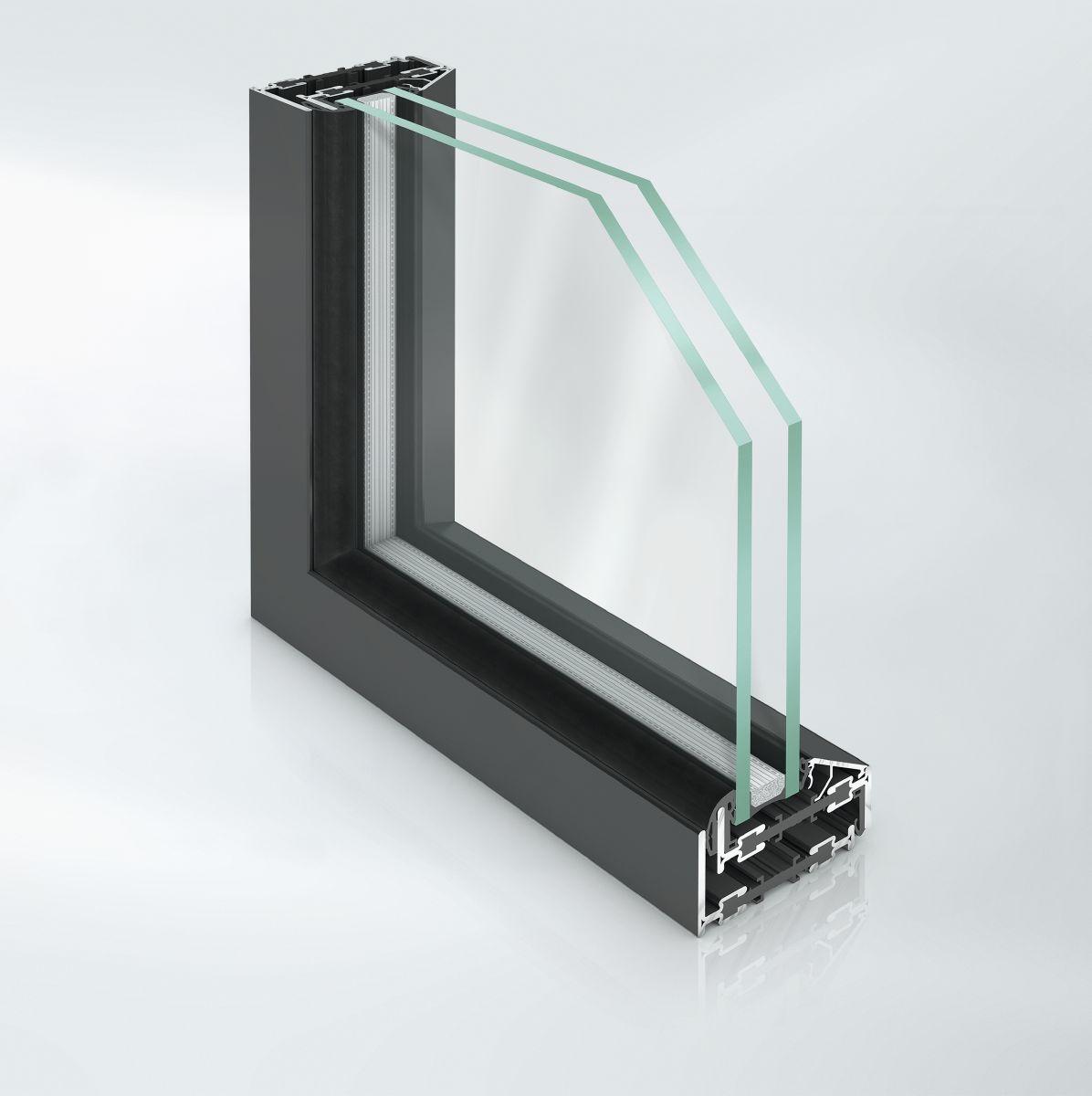

Jansen Fineline 70 Fenster

Filigranes Stahl-Fenstersystem mit umfangreichen Designoptionen

Hervorragende Kombination aus Design und Performance ermöglicht Ihnen die Verwirklichung von eleganten und klassischen bis hin zu modernen Stilrichtungen

Variable Gestaltungsmöglichleiten von Stahl mit größtmöglichen Spannweiten bei idealen statischen Werten

Extrem schlanke Stahlprofile schaffen Transparenz und kreieren eine lichtdurchflutete Wohnatmosphäre und ein angenehmes Raumklima

  • optisch ansprechende Blockflügelvariante
  • vielfältige Glasleistenvarianten zur individuellen Gestaltung
  • Umfangreiches Beschlagsortiment vom historisch aufliegenden Beschlag bis hin zu modernem verdeckt liegenden Beschlag
  • umfangreiches Griffsortiment inklusive verdeckt liegender Rosette
  • Schallschutzwerte bis 50dB
  • verdeckt liegende Entwässerung

Min face width

45 mm

Max. glass/panel thickness

54 mm

Max. vent width

1250 mm

Max. vent height

2250 mm

Max. sound reduction index Rwp

50 dB(A)

Air permeability

Class 4

Watertightness

Class 9A

Burglar resistance

Up to RC 2

Wind load resistance

Class C4 / B4

CE marking

Yes

Total basic depth

70 mm

Width of vent frame

70 mm

Max. vent weight

120 kg

Min.-max. vent height

300...2250 mm

Min.-max. vent width

360...1250 mm

Outer frame face width

25 mm

Vent frame face width

40 mm

Max. face width of mullion

55 mm

Min.-max. face width of mullion

40...55 mm

Max. face width of meeting stile

75 mm

Min.-max. face width of meeting stile

75 mm

Min.-max. glass/panel thickness

9...54 mm

Area of application

External use, Residential projects, Commercial projects, Window

Concealed fittings system

Yes

Surface finishes

Glass composition

Triple glazing

Barrier-free operating forces in accordance with DIN 18040

TipTronic

Opening type: TipTronic, inward-opening

Opening type: manual, inward-opening

Turn/tilt, Side-hung, Bottom-hung, Toplight, Vertical pivot

Opening angle

90 °

Mechanical strength

Class 4

Proof of durability

Class 2

Corrosion protection class for fittings

Class 4

Ug value of glass (≤)

0.5 W/(m²·K)

Drainage levels

3

Integrated sun shading

Security glazing

Yes

Suitable for safety barrier loading

Yes

Colour-independent

Yes

FAQ zu Aluminiumfenstern und türen

Aluminum windows are categorized into: casement windows, sliding windows, fixed glazing, and folding systems. Choosing the right window type requires careful consideration and knowledge of its various features and parameters. Learn more about the different types of aluminum windows and select the perfect solution for your needs.

Highly energy-efficient windows are those with a special insulating layer inside, usually made of polyamide. This material is a poor conductor of heat and therefore prevents energy loss. Learn more about highly energy-efficient aluminum frames and their advantages.

Aluminum frames require minimal maintenance due to their material properties. To keep your doors and windows looking like new and further extend their lifespan, a few basic care tips should be followed.
