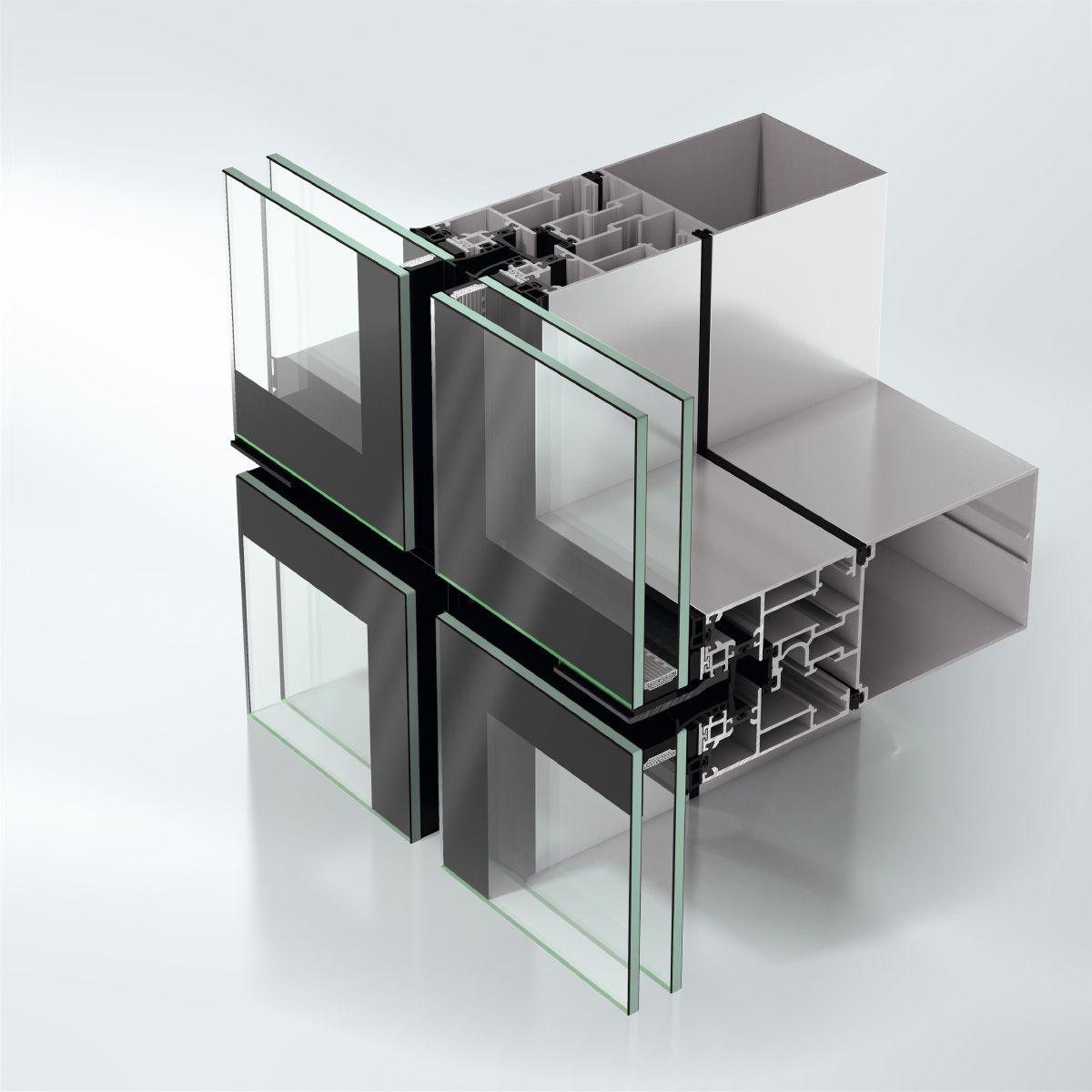

Schüco Fassadensystem SFC 85 SG

Designfassade mit Structural-Glazing-Optik für maximale Transparenz

Das Schüco Fassadensystem SFC 85 SG (Stick Frame Construction Structural Glazing) ist eine Variante der Ganzglasfassaden – mit flächenbündig in die Fassade verbauten Festfeldern und Öffnungselementen, die von außen und innen nicht als Einsatzelemente erkennbar sind. Das Ergebnis: elegante Designfassaden in Structural-Glazing-Optik mit maximaler Transparenz bei gleicher Ansichtsbreite von Festfeld und Fensterflügel.

Die vollständig in das Tragwerk integrierten Einsatzelemente können in besonders großen Festfeld- oder Flügelformaten mit hohen Elementgewichten realisiert werden.

Die bewährte Structural-Glazing-Fassade ist mit Zweifach- und Dreifachverglasung durch die ETA-07-0120 europäisch zugelassen.

  • Komplett ins Tragwerk integrierte Festfelder und Öffnungselemente: als Einsatzelement von außen und innen nicht erkennbar Alle Einsatzelemente in drei verschiedenen Verglasungsvarianten erhältlich: Structural-Glazing-Stufenisolierglas (Typ A), Structural-Glazing-Standardisolierglas (Typ B) und Standardisolierglas mit umlaufenden Glasleisten (Typ C)
  • Öffnungselemente als Senkklapp- und Parallel-Ausstell-Fenster mit hohen Flügelgewichten realisierbar, auch in Kombination mit verdeckt liegendem Motorantrieb
  • Großdimensionierte Elementformate bieten hohe Transparenz
  • Einfaches Einhängen der Festfelder in das Tragwerk gewährleistet eine besonders rationelle Montage

Min face width

85 mm

Max. glass/panel thickness

55 mm

Max. vent width

Max. vent height

Air permeability

AE

Watertightness

RE 1200

Burglar resistance

Wind load resistance

CE marking

Yes

Total basic depth

Width of vent frame

Max. vent weight

250 kg

Min.-max. vent height

Min.-max. vent width

Outer frame face width

Vent frame face width

Max. face width of mullion

Min.-max. face width of mullion

Max. face width of meeting stile

Min.-max. face width of meeting stile

Min.-max. glass/panel thickness

28...55 mm

Area of application

Concealed fittings system

Yes

Surface finishes

Powder, Paint

Glass composition

Barrier-free operating forces in accordance with DIN 18040

TipTronic

Opening type: TipTronic, inward-opening

Opening type: manual, inward-opening

Opening angle

Mechanical strength

Proof of durability

Corrosion protection class for fittings

Ug value of glass (≤)

Drainage levels

3

Integrated sun shading

Security glazing

Suitable for safety barrier loading

Colour-independent
