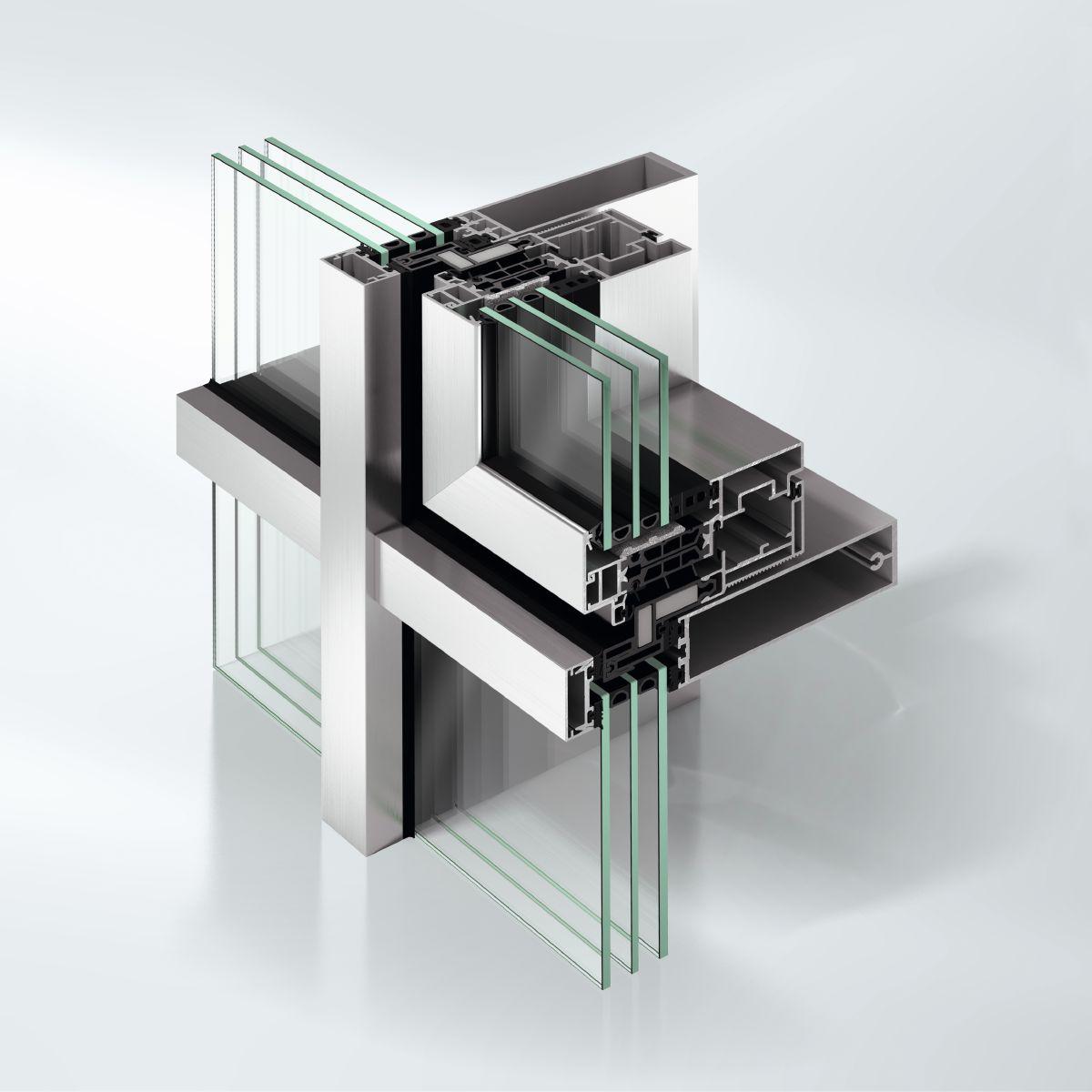

Schüco Fenstersystem AWS 114.SI

Variantenreiches Fassadenfenster mit höchster Wärmedämmung und einfacher Montage

Das Schüco Fenstersystem AWS 114.SI (Super Insulated) kombiniert beste Wärmedämmung auf Passivhausniveau mit hoher Effizienz in Herstellung, Montage und Betrieb – ausführbar als Parallel-Ausstell- oder als Senkklapp-Fenster.

Mit seinen großen Flügelformaten lässt sich das funktionelle System optisch nahtlos in unterschiedlichste Fassadengeometrien integrieren – auch mit hohen Flügelgewichten.

Das Einsatzelement bietet als höchstwärmegedämmtes Fassadenfenster mit Dreifachisolierglas vielfältige Gestaltungsoptionen bei der Integration in nahezu alle Schüco Fassadensysteme.

  • Optisch nahtlose Integration in nahezu alle Schüco Fassadensysteme ohne Beeinträchtigung der gleichmäßigen Fassadengeometrie
  • Öffnungsvarianten: Senkklapp- und Parallel-Ausstell-Fenster auch mit hohen Flügelgewichten
  • Innovatives Beschlagsortiment: optimal ausbalanciertes manuelles Beschlagsystem mit nur geringen Bedienkräften; optional auch Bedienung per verdeckt liegendem Motorantrieb Schüco TipTronic realisierbar
  • Beste Wärmedämmung auf Passivhausniveau
  • Hohe Transparenz durch großzügig planbare Flügelmaße und -gewichte für manuelle sowie Schüco TipTronic Beschläge
  • Optimiert ausbalanciertes System mit geringen Bedienkräften

Min face width

52 mm

Max. glass/panel thickness

52 mm

Max. vent width

2700 mm

Max. vent height

3600 mm

Max. sound reduction index Rwp

45 dB(A)

Air permeability

Class 4

Watertightness

E 1200

Burglar resistance

Up to RC 2

Wind load resistance

C5/B5

CE marking

Yes

Total basic depth

Width of vent frame

Max. vent weight

250 kg

Min.-max. vent height

Min.-max. vent width

Outer frame face width

Vent frame face width

Max. face width of mullion

Min.-max. face width of mullion

Max. face width of meeting stile

Min.-max. face width of meeting stile

Min.-max. glass/panel thickness

28...52 mm

Area of application

Concealed fittings system

Surface finishes

Powder, Anodised, Paint

Glass composition

Barrier-free operating forces in accordance with DIN 18040

TipTronic

Opening type: TipTronic, inward-opening

Opening type: manual, inward-opening

Opening angle

Mechanical strength

Proof of durability

Corrosion protection class for fittings

Ug value of glass (≤)

Drainage levels

1

Integrated sun shading

Security glazing

Suitable for safety barrier loading

Colour-independent
