Schüco CT 70
The PVC-U system Schüco CT 70 AS with rebate gasket is based on a 5-chamber technology. Excellent thermal insulation properties and narrow face widths in three different vent contours are the distinctive features of this system. The two drainage levels guarantee optimum protection agains wind, rain and noise
Schüco CT 70 AS door systems are suitable for a wide variety of uses in both new-build and renovation projects. An extensive range of accessories ensures a high level of system security.
Also, the system is integrated into the Schüco colour concept with Schüco TopAlu and Schüco UnlimitedFinish.

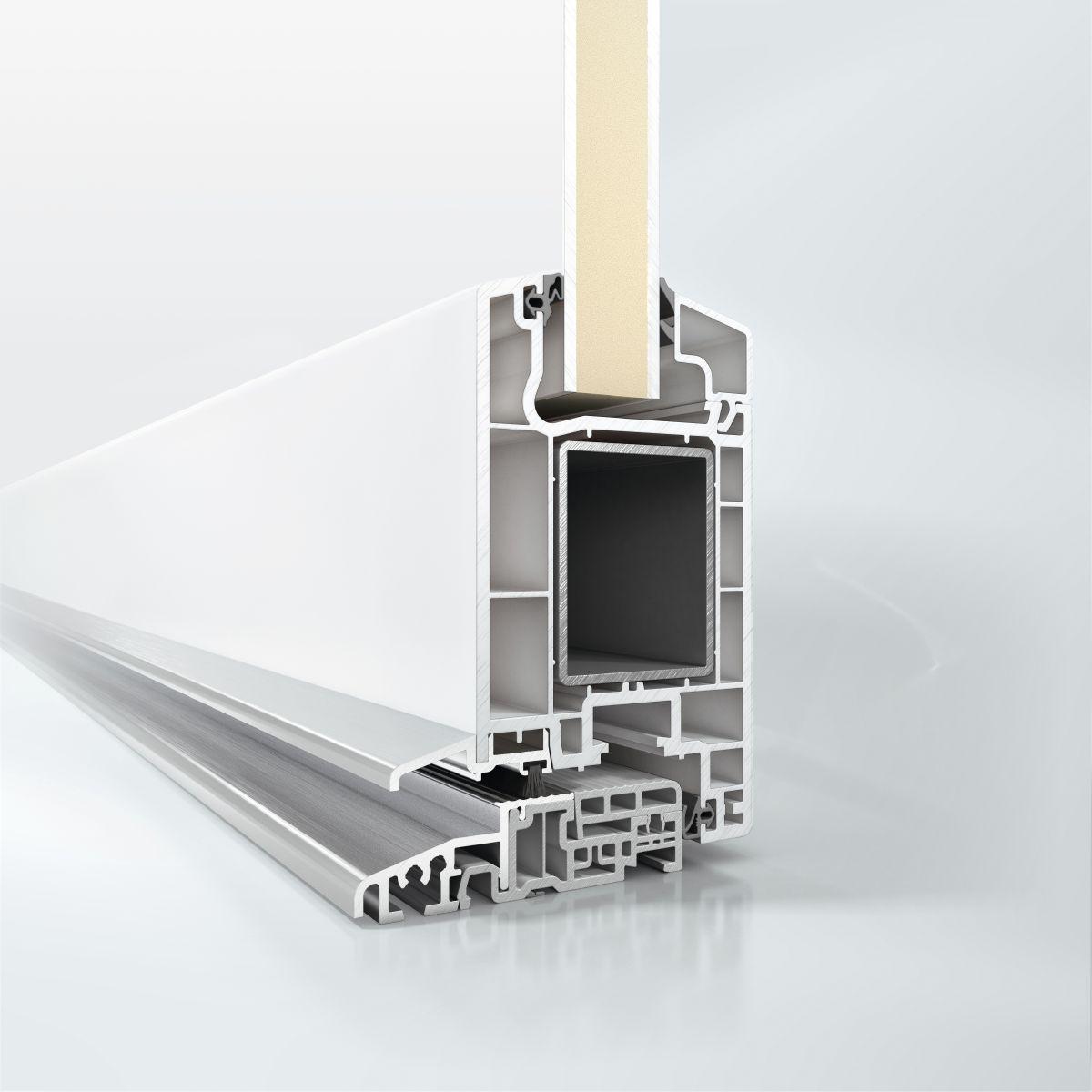

Schüco CT 70 AS Rondo, thermally insulated PVC-U side entrance door system

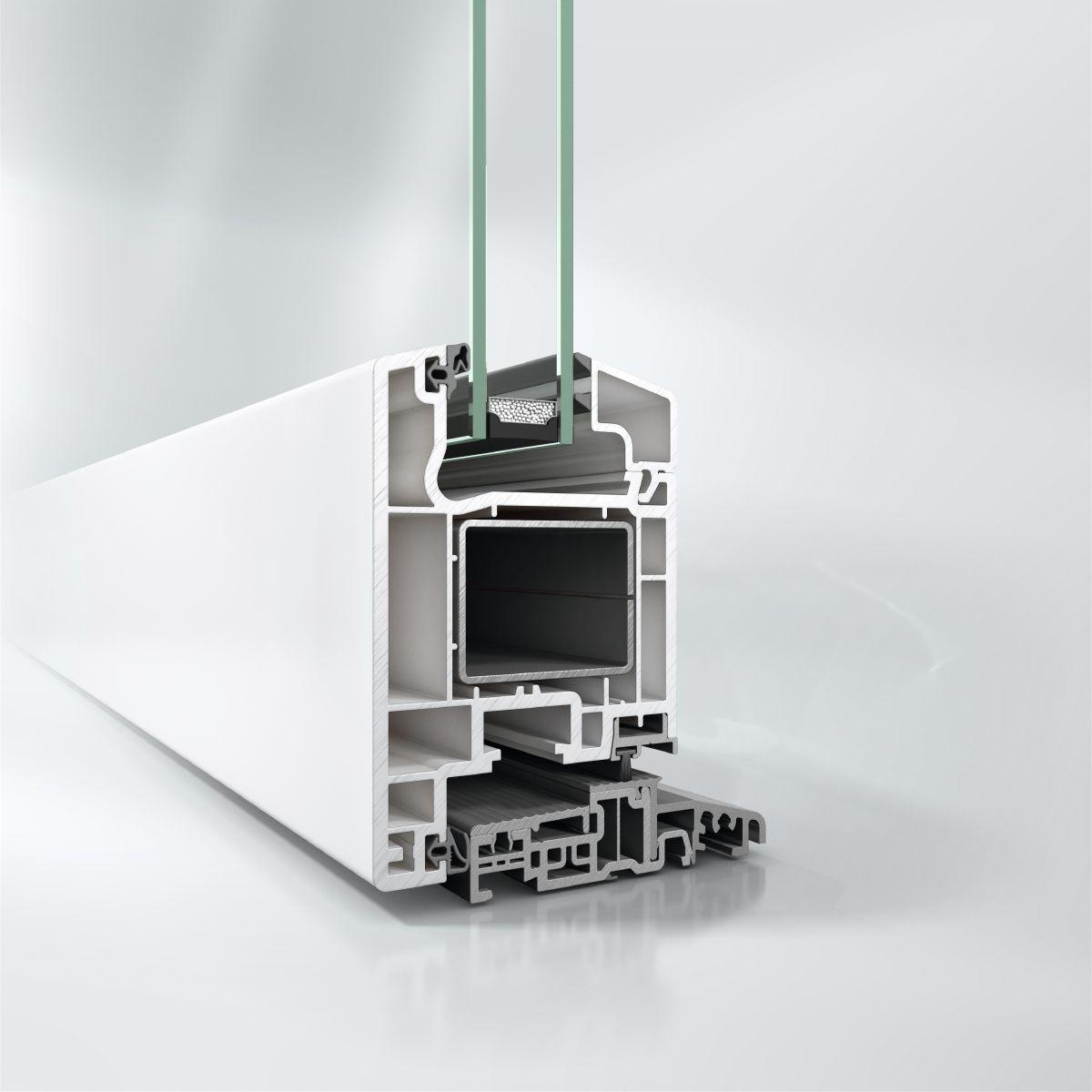

Quarter-rebated system with a basic depth of 70 mm
Rebate gasket system with the following design features:
5 chamber construction with galvanised steel reinforcements
Glazing and rebate gaskets, EPDM, flush-fitted to the profile, UV and weather-resistant, silver-grey
20 mm rebate on room side between leaf frame and frame level
Uniform 8 mm leaf overlap, 18 mm glass edge cover, all profile edges are rounded
External quarter-rebated, half-rounded leaf frame.
Profile depths:
Outer frame, mullion, transom: 70 mm
Leaf frame: 78 mm
Profile face widths:
Outer frame: 78 mm
Mullion / transom: 110 mm
Leaf frame, door (outside view): 72 mm
Meeting stile profile: 70 mm
Leaf mid-rail: 147 mm

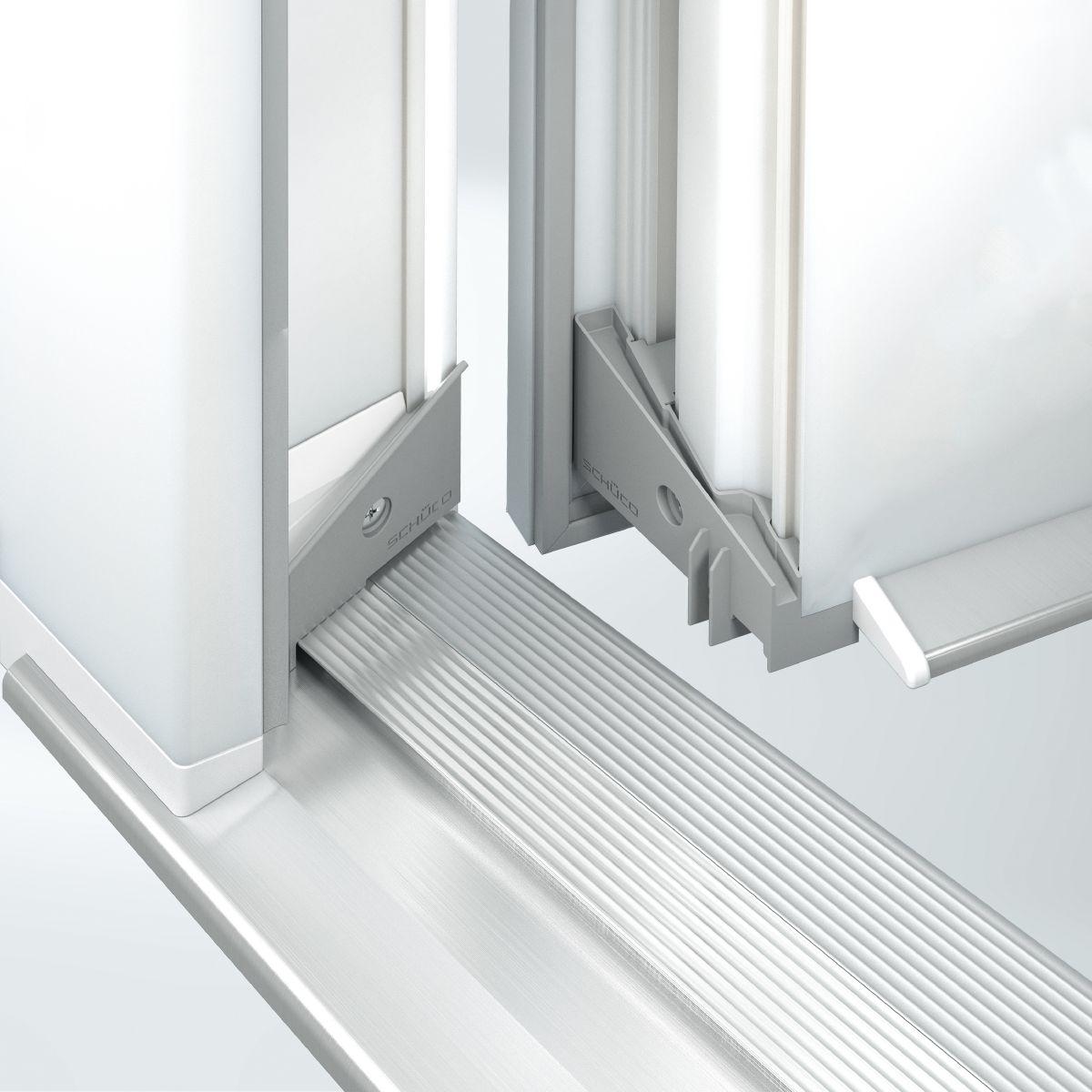

Door threshold:
Maximum construction height 20 mm for easy access construction in accordance with DIN 18025. Screw fixing for sill concealed in rebate area. RAL approved attachment to building structure through use of basic and connecting profiles which match the system. Use of a lower centre locking point for installation heights above 20 m. Where there are side sections, continuous threshold for uninterrupted foil attachment to sill.
Available as thermally broken aluminium threshold in E6/EV1, E6/C35 (black) or as glass fibre-reinforced plastic threshold (polyamide, black).
Sill rail:
Use of upper and lower add-on profiles in side section for manufacture of identical face widths in comparison with door construction. Use of drip bars on leaf profile to repel splash water.
