Schüco Sun Shading System CCB

Motorised Venetian blind – concealed in the Schüco AWS 120 CC.SI composite window system

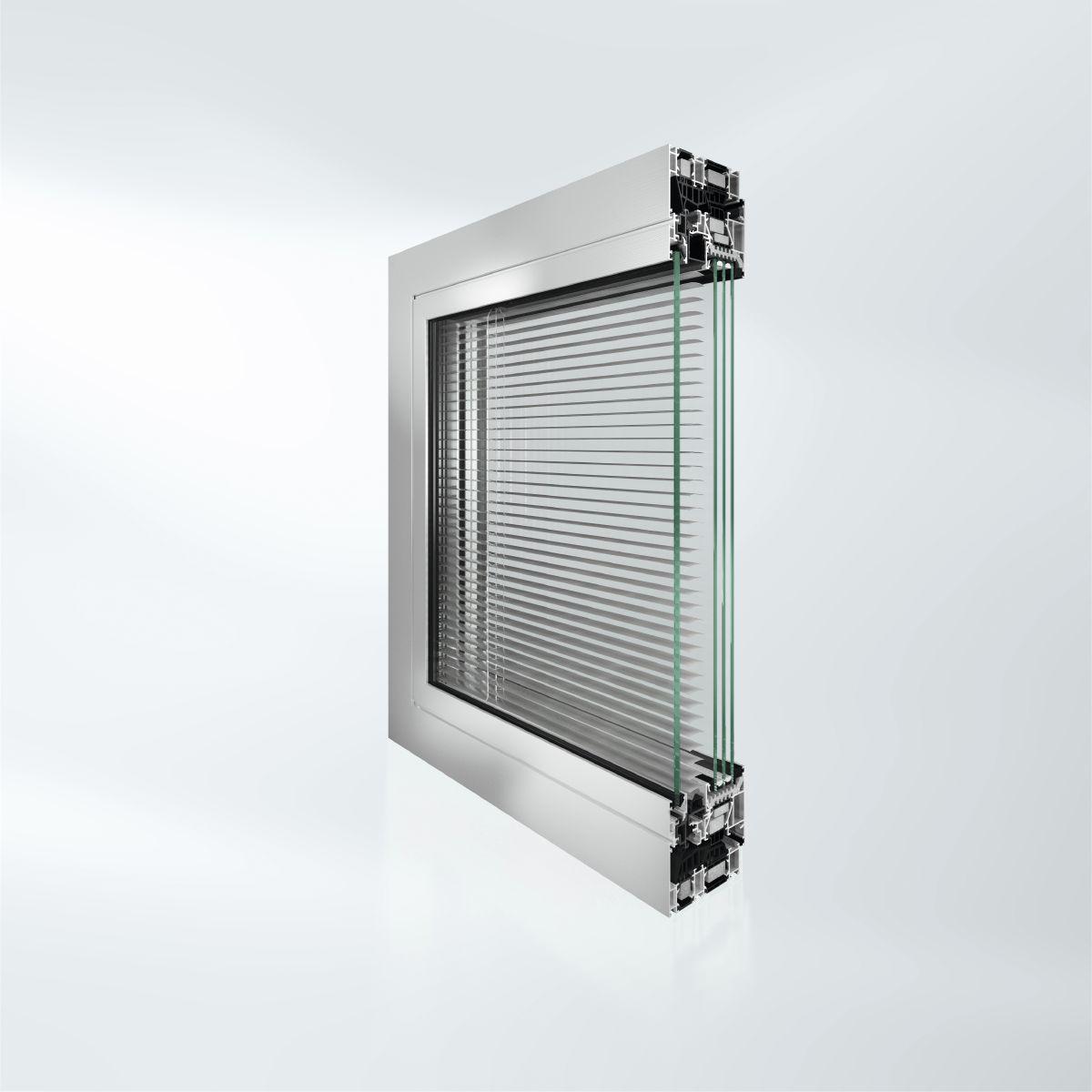

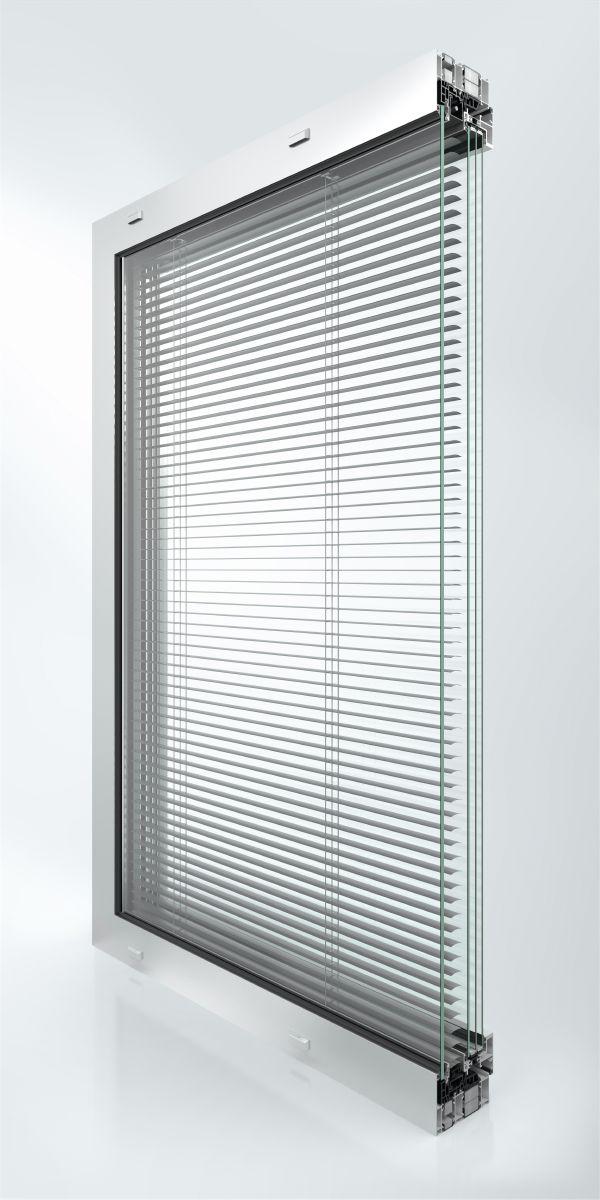

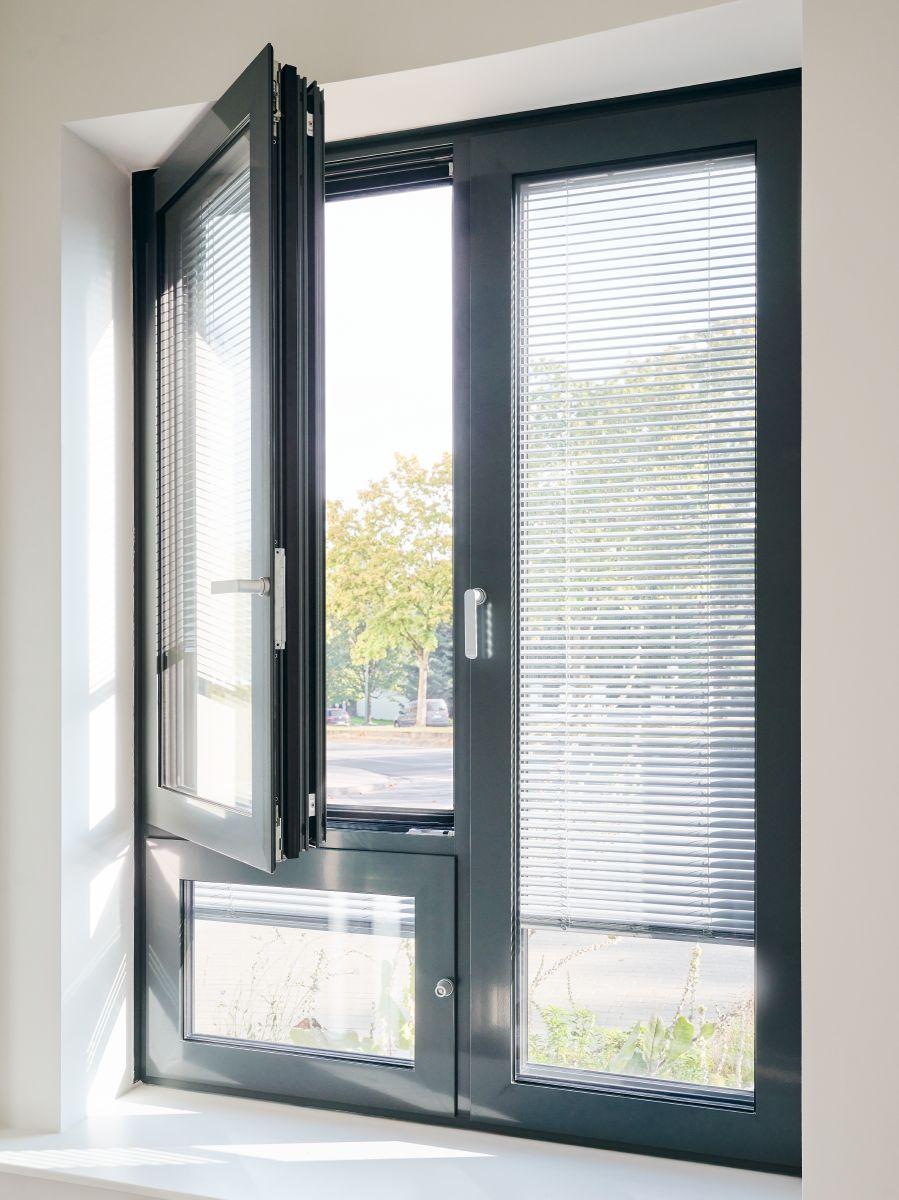

The Schüco CCB (Concealed Composite Blind) sun shading system is a Venetian blind, fully integrated in the Schüco AWS 120CC.Si (Composite Construction Super Insulation) composite window system, which can be used regardless of wind loads and weather influences due to its protected position.

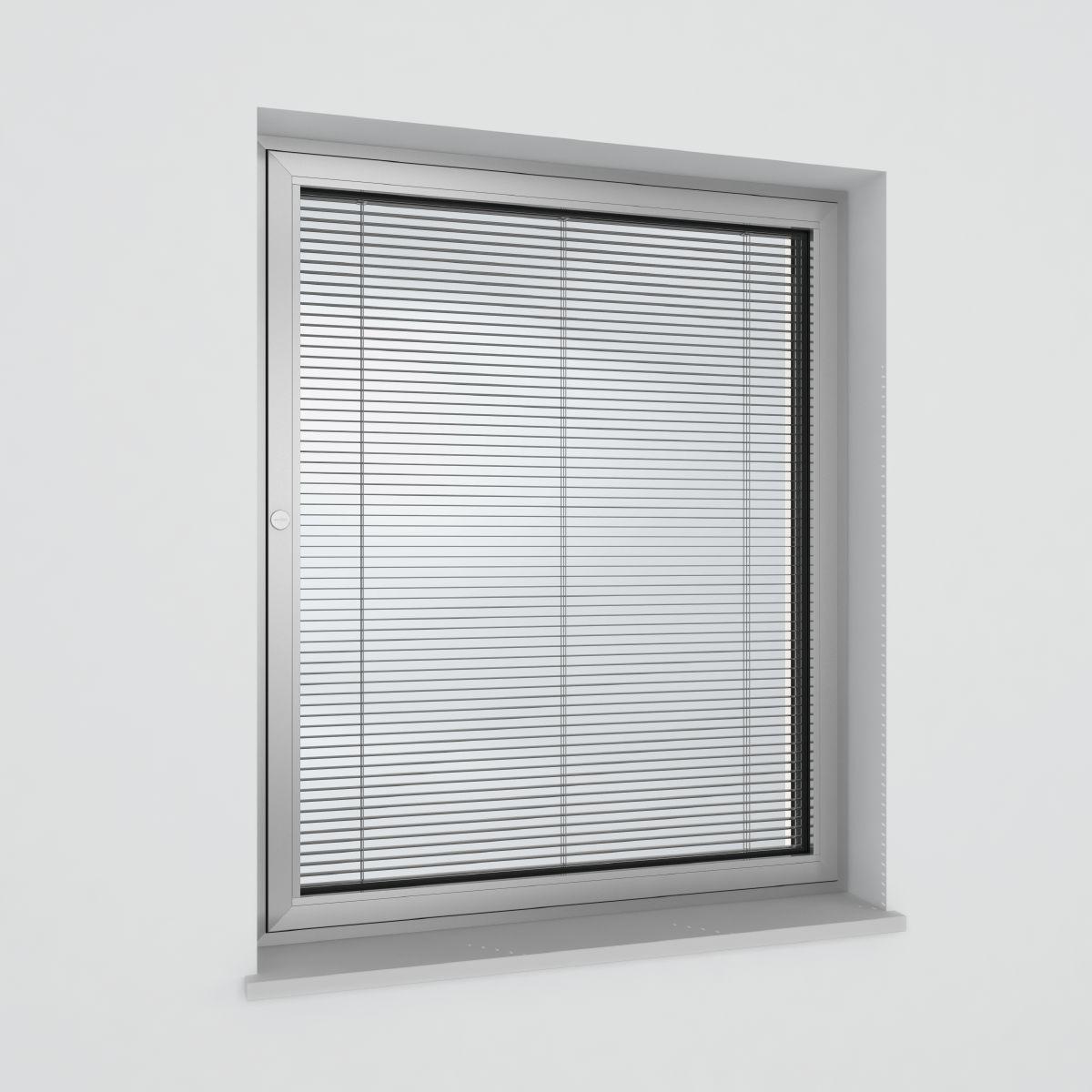

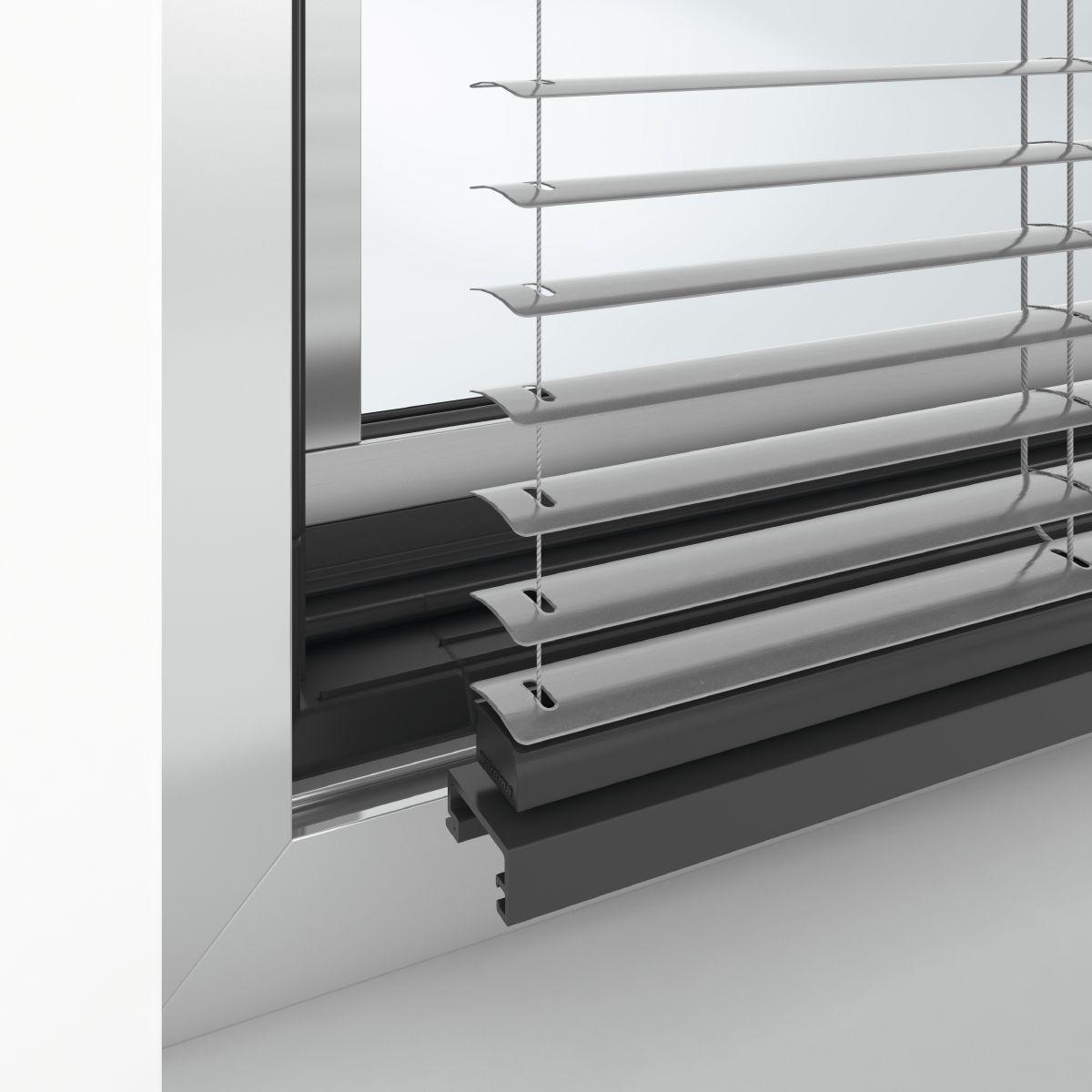

The aluminium louvre blades made of a special alloy can be raised and lowered, as well as opened and closed in any position. In this way, the attractive, high-quality system with high functionality offers efficient sun shading, glare protection and screening alongside the best views to the outside.

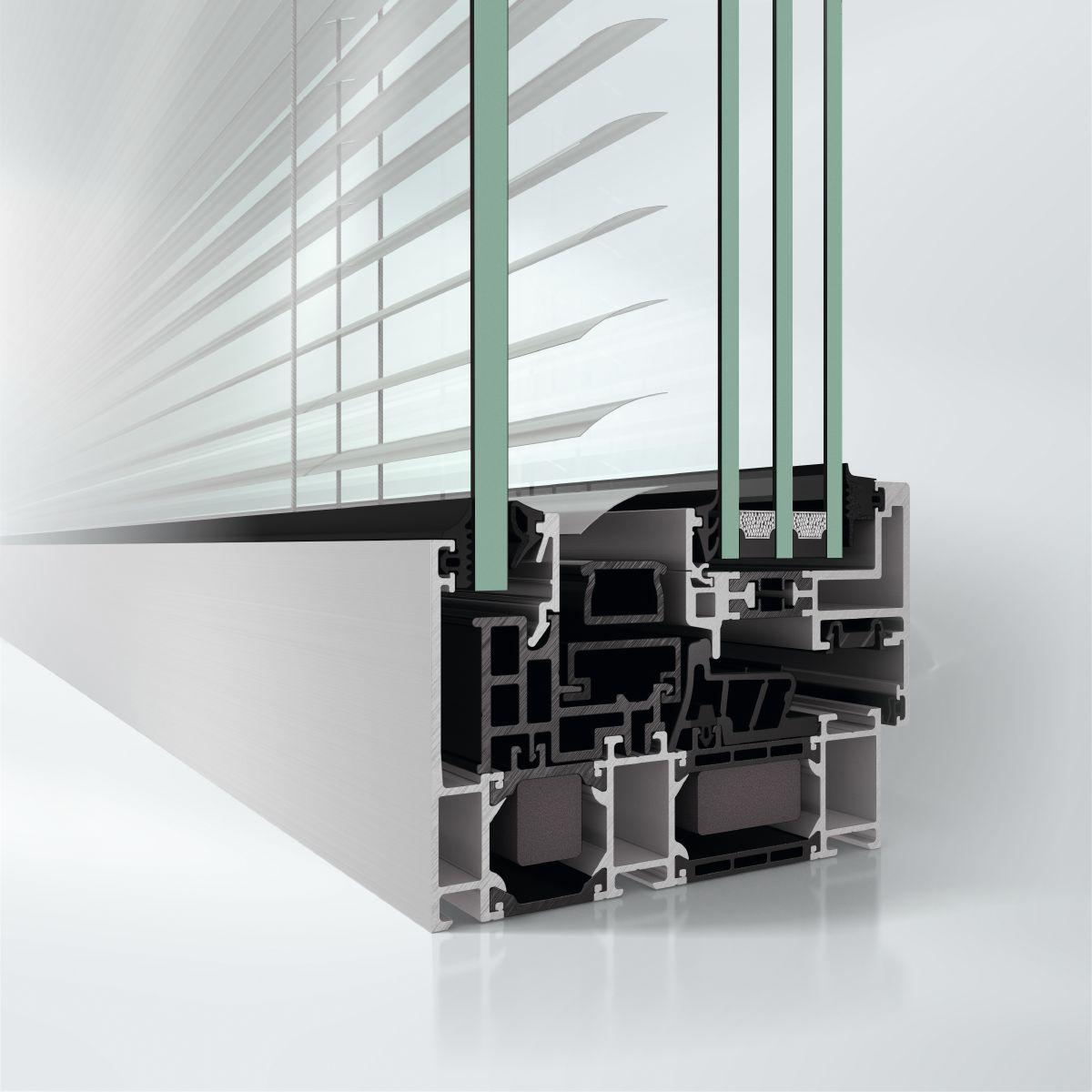

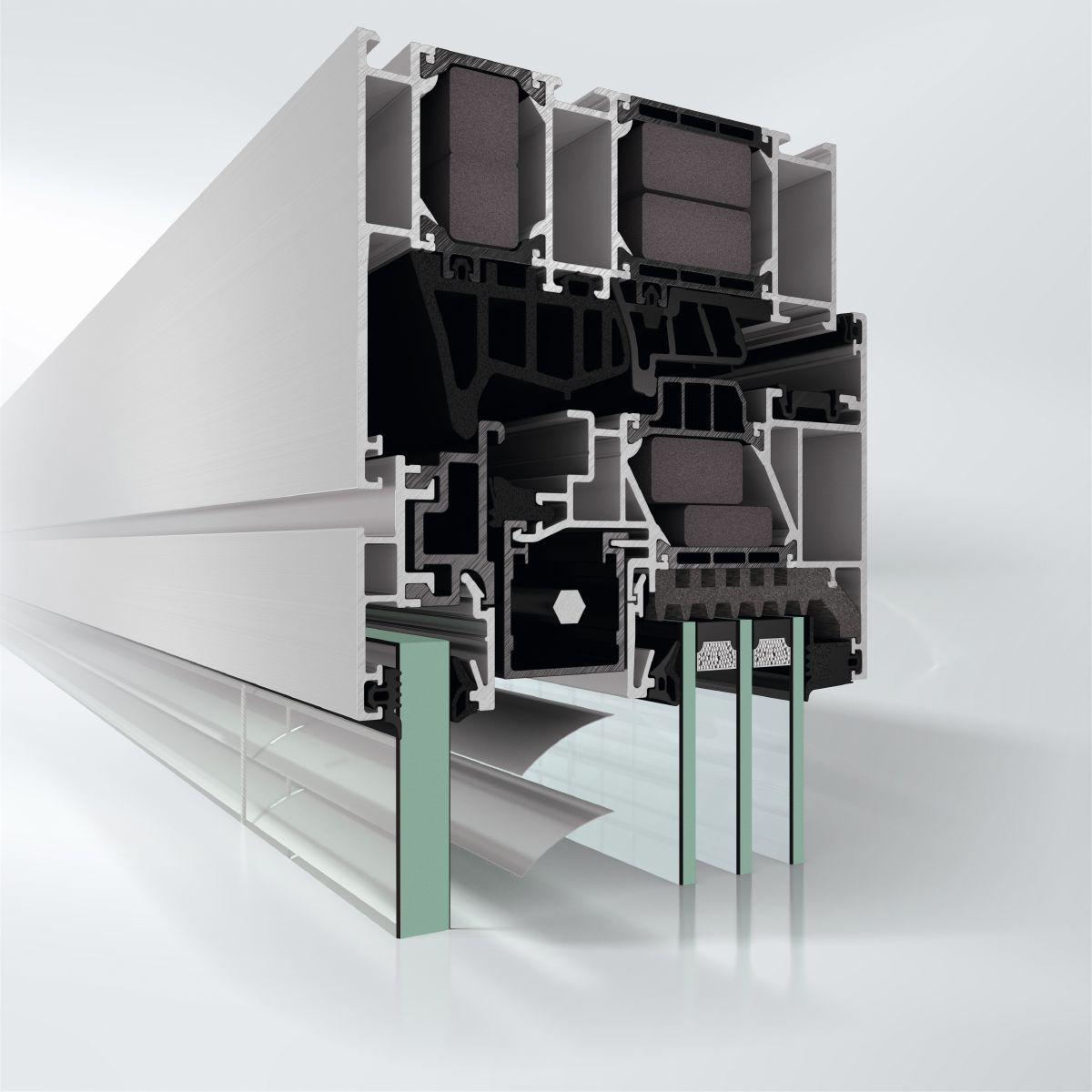

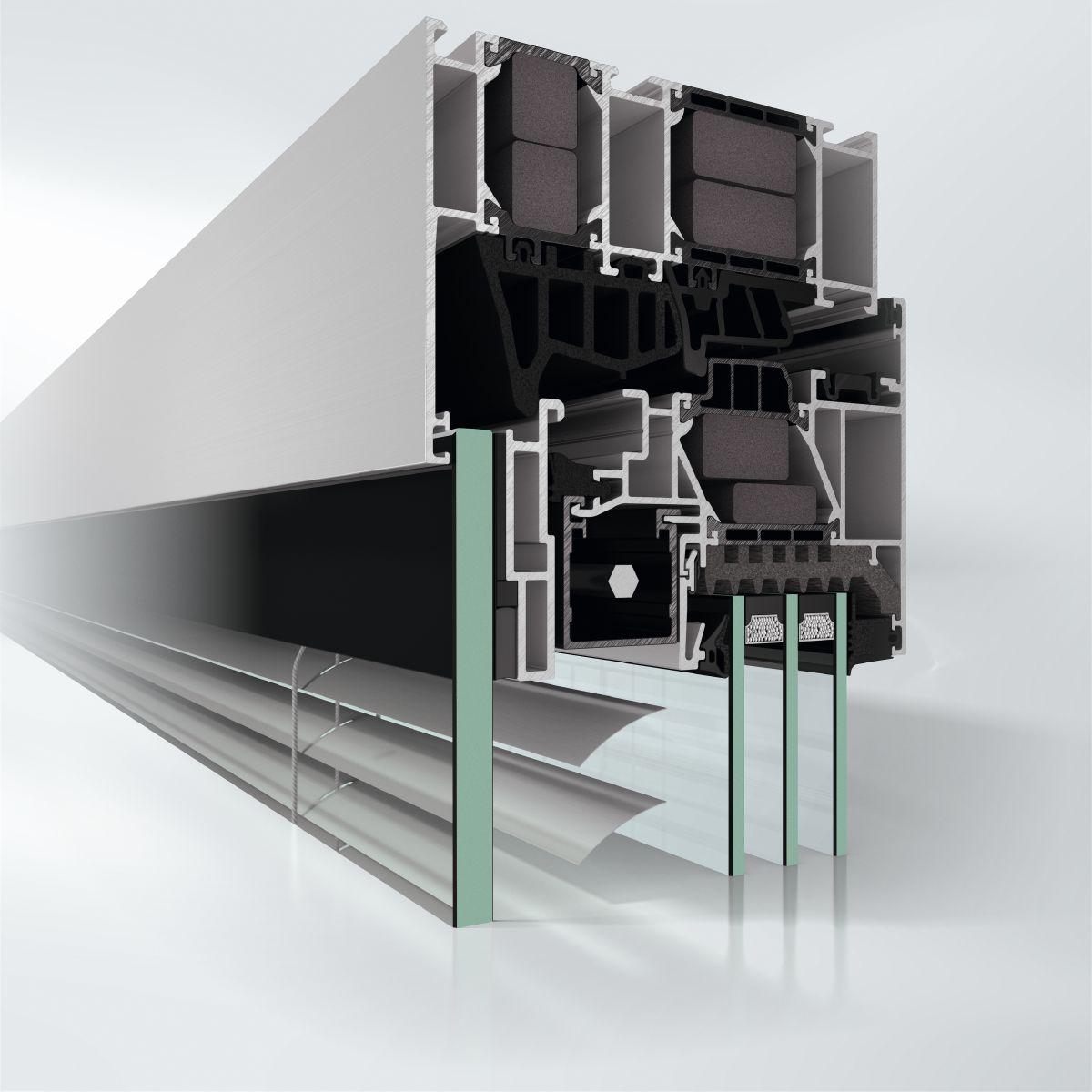

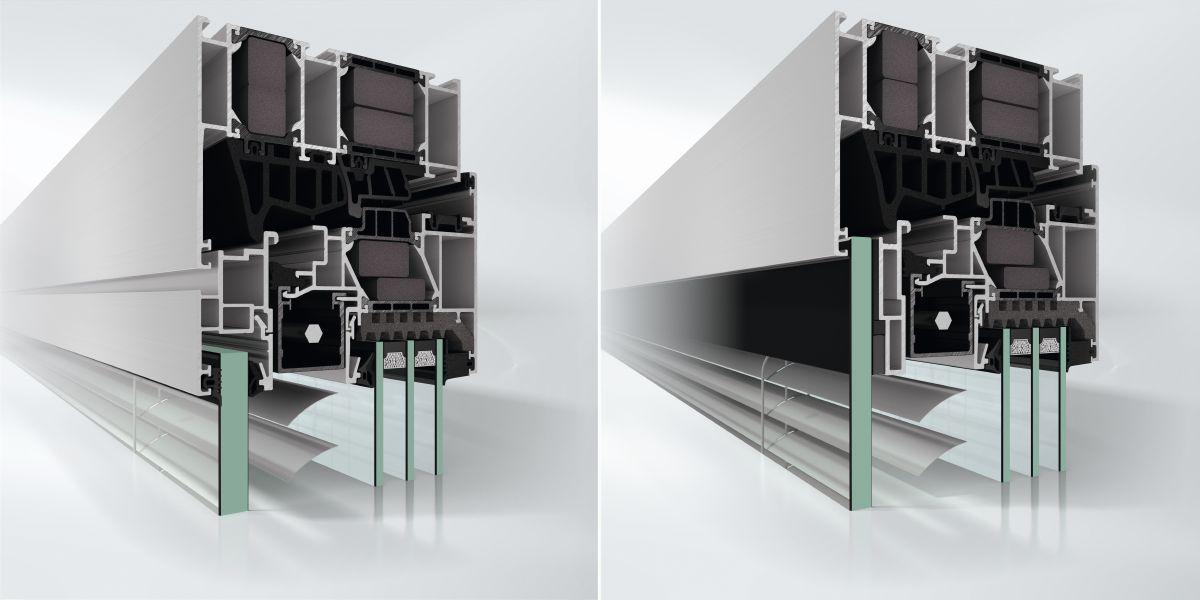

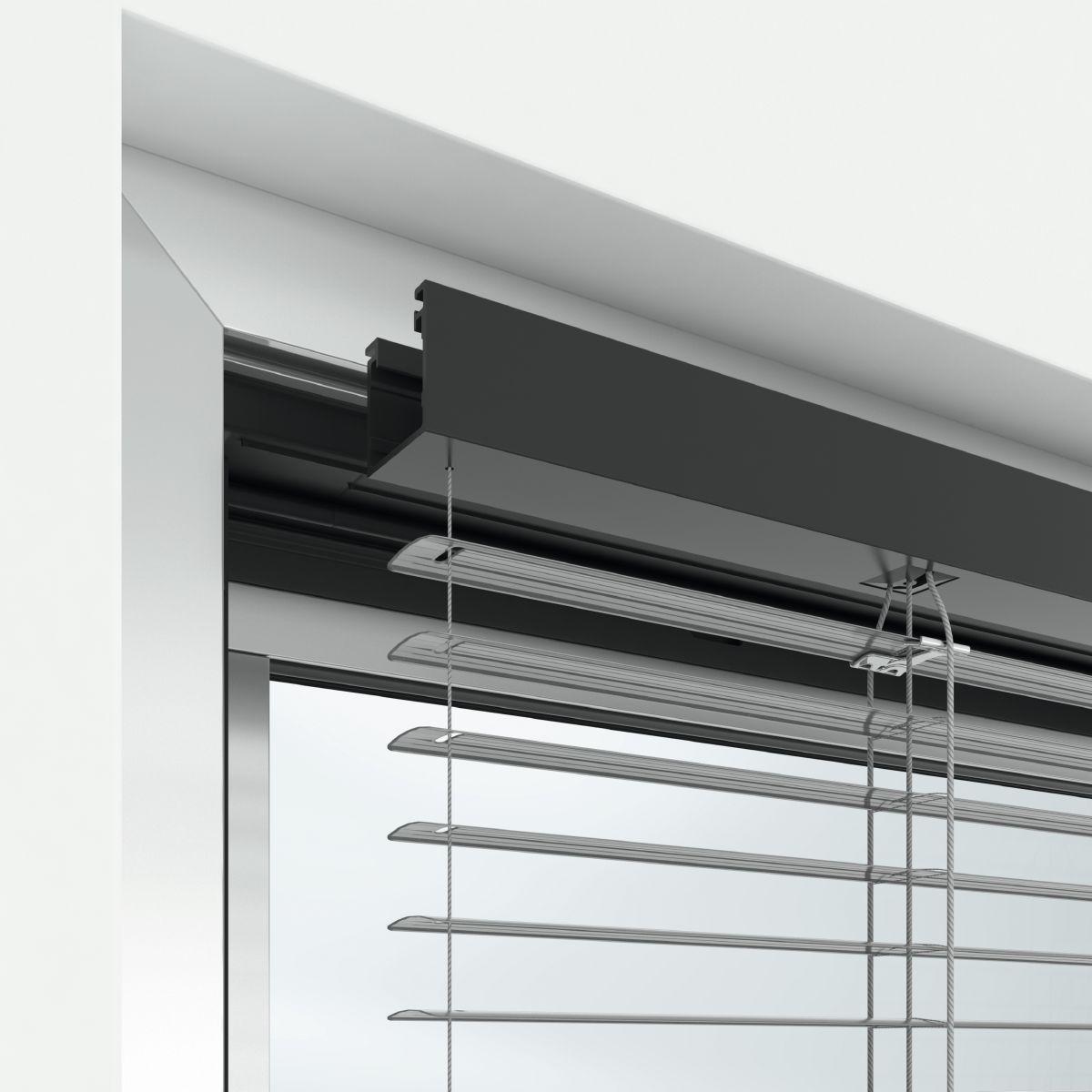

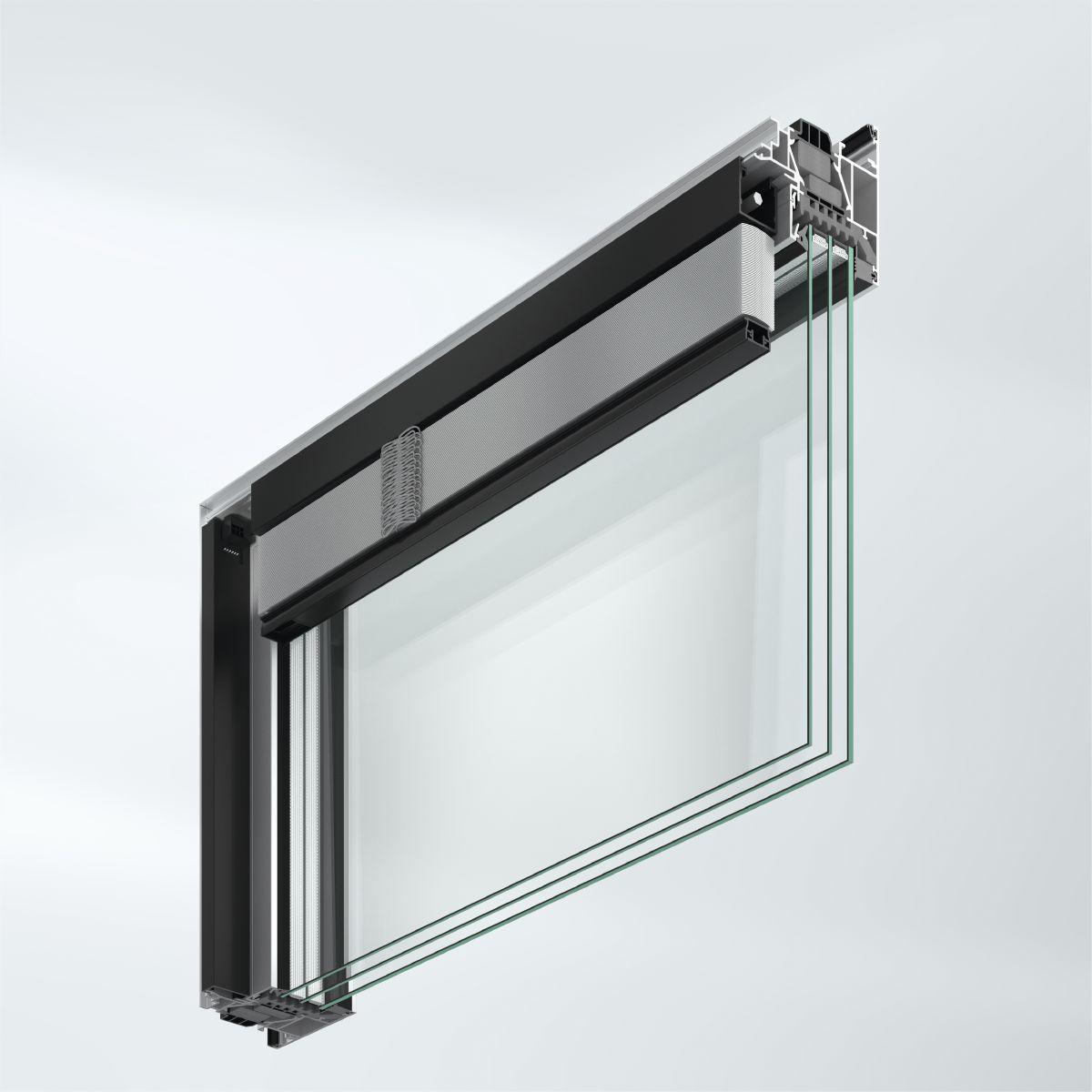

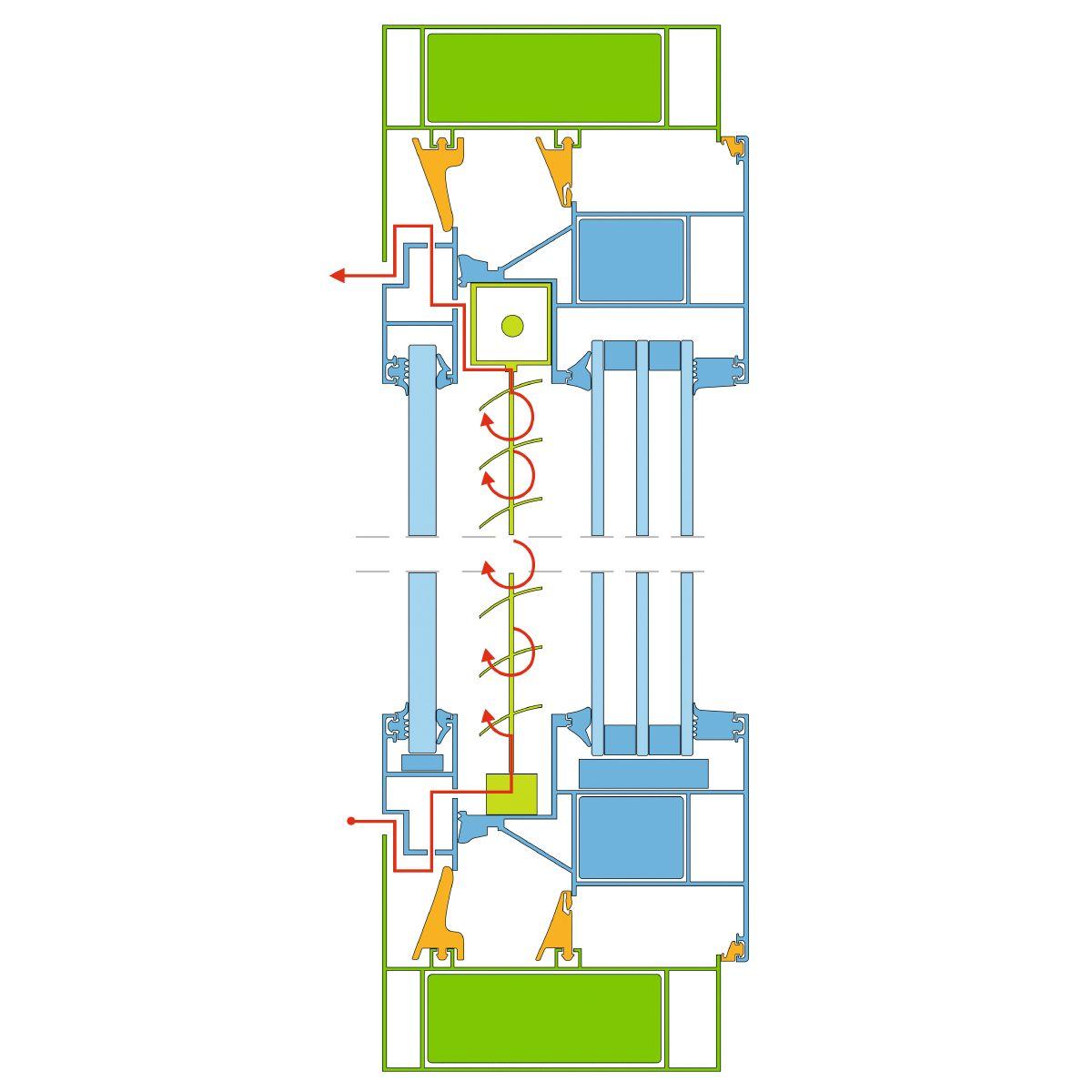

In addition, installation in the vent in the space between the single glazing on the outside and the insulating glazing on the inside means that the top profile of the Venetian blind is completely concealed. Furthermore, a minimal stack height is achieved when the Venetian blind is raised and, when the blind is lowered, it prevents light coming through the sides.

Planning benefit

Integration of the system in the composite window provides a high degree of planning reliability

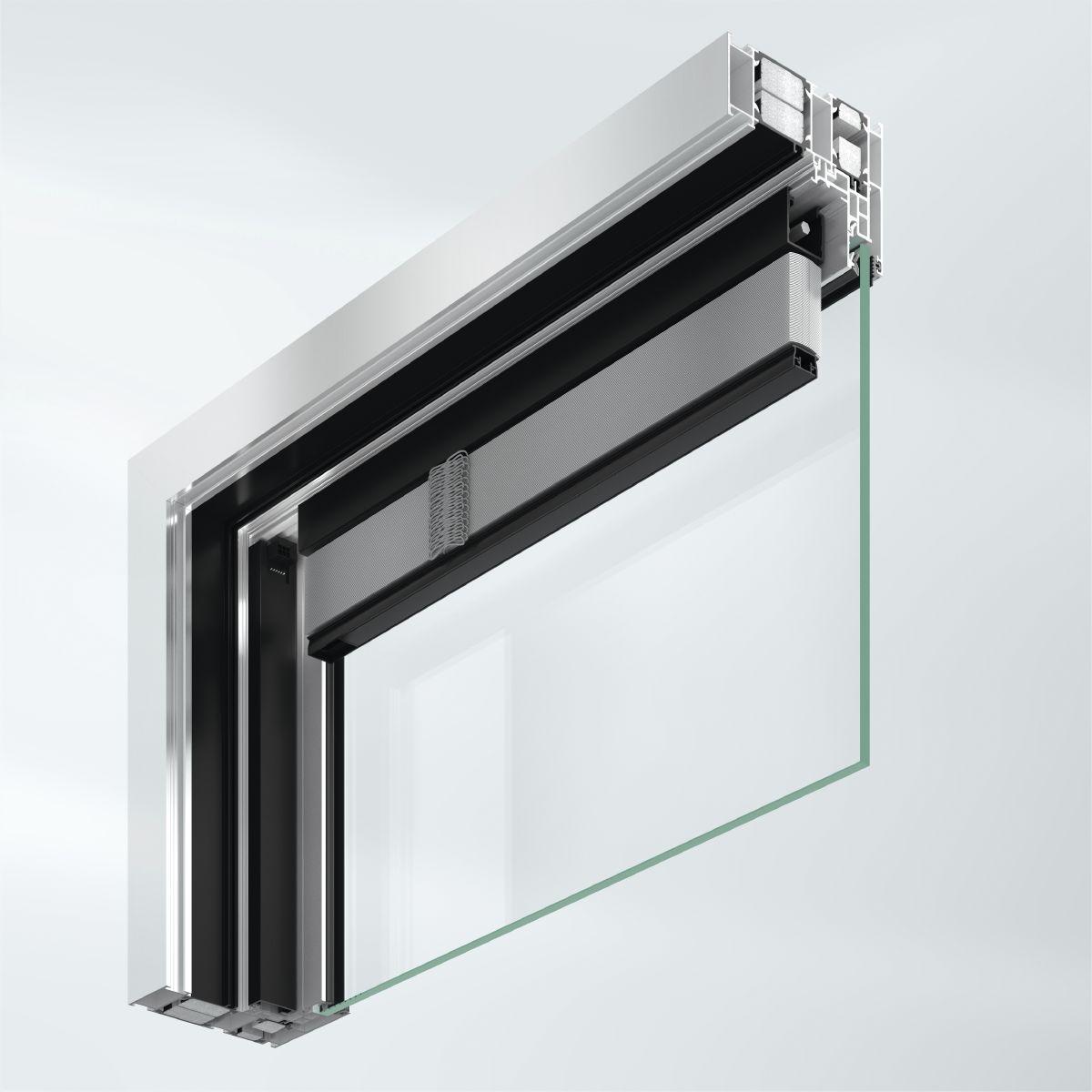

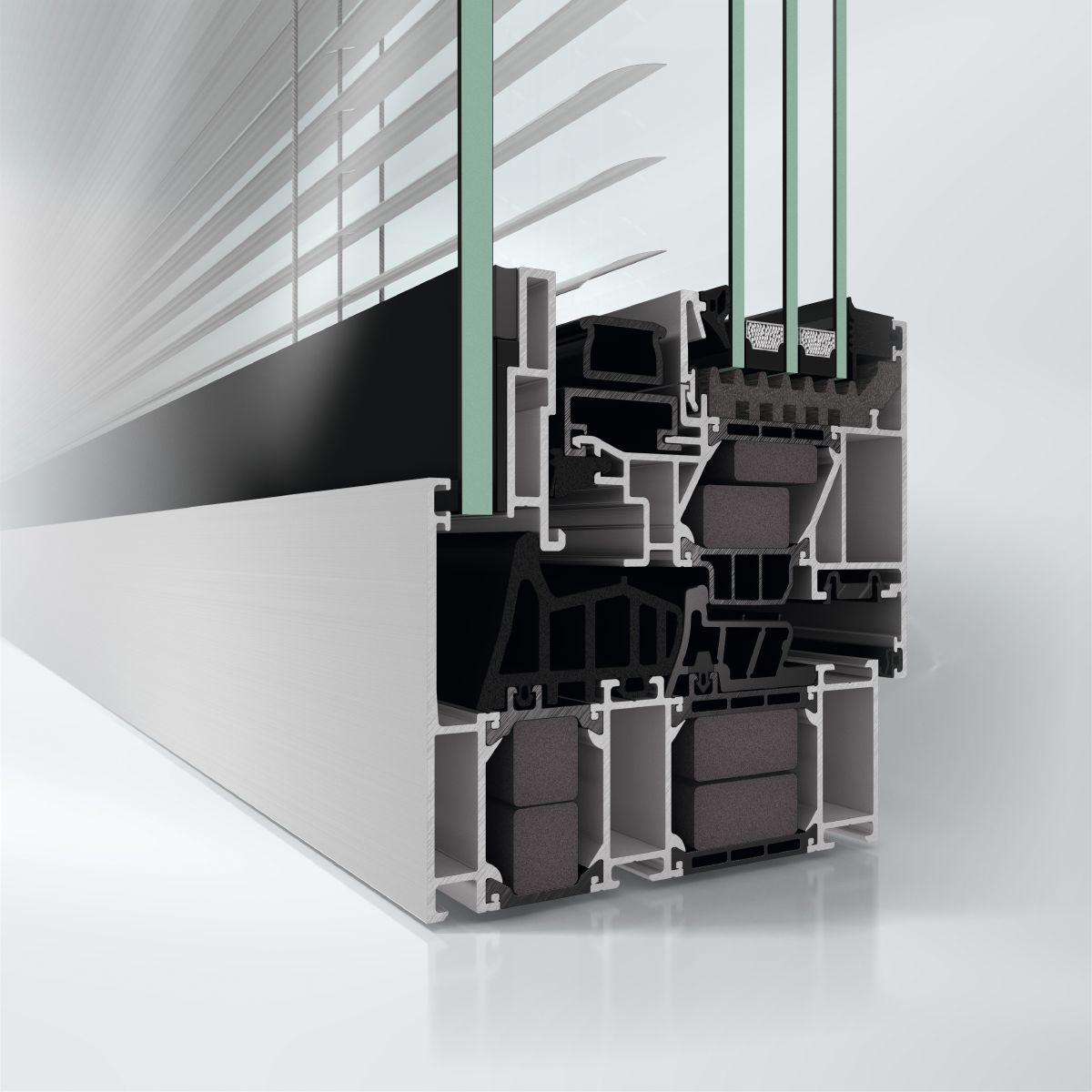

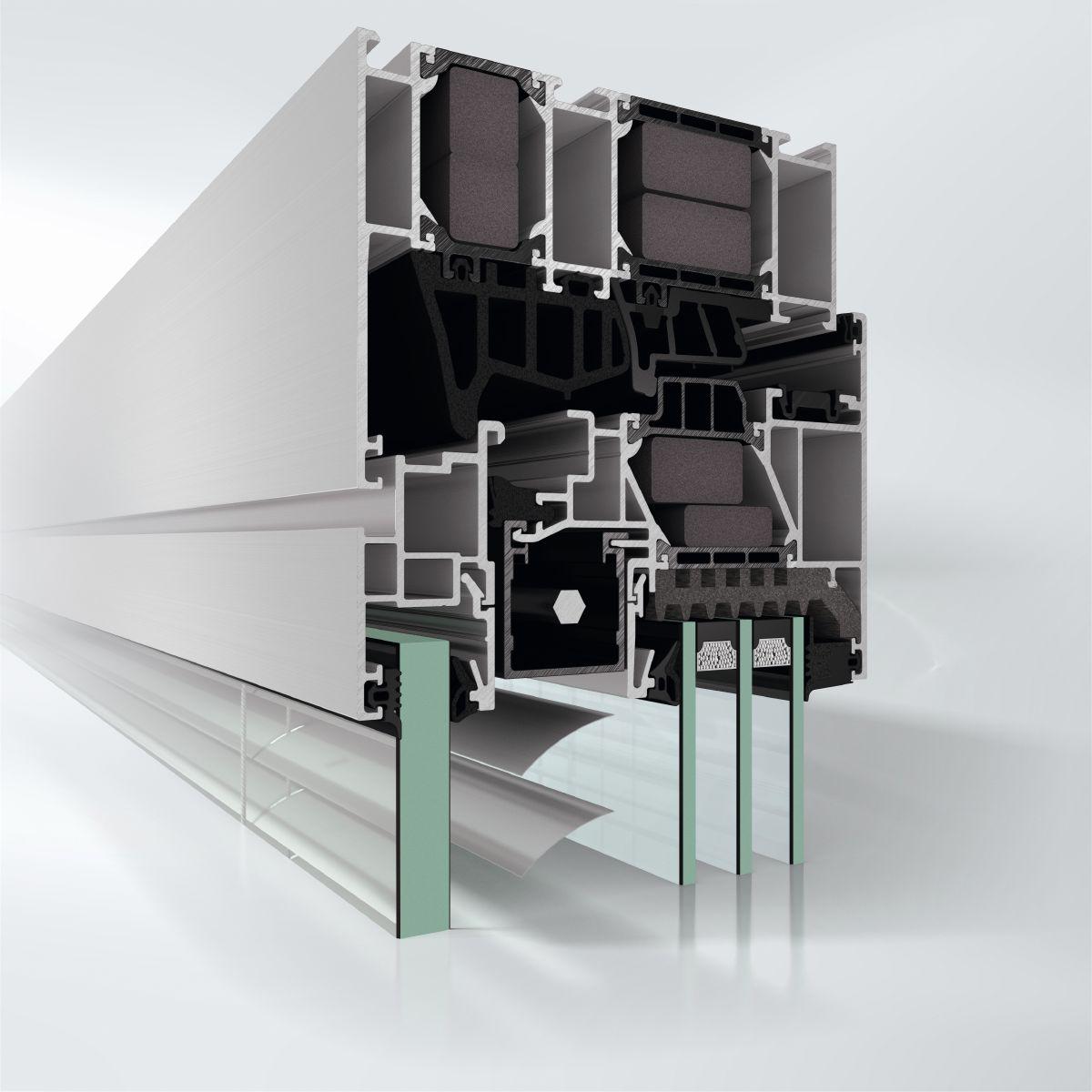

Plastic top profile supplements the insulation and optimises the U value of the composite window

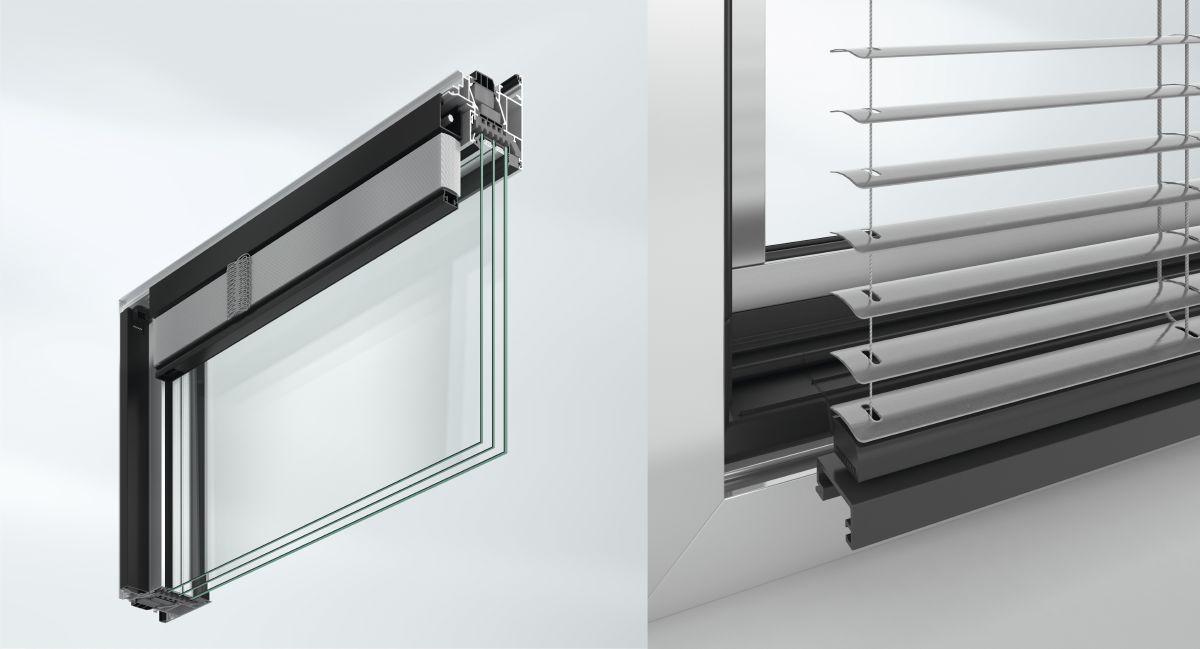

Concealed lateral guide in the rebate space prevents light entering from the sides
Use irrespective of wind loads and weather factors
Variety of design options: 14 colours and two coating types available
High system reliability: motor and Venetian blind components are specially designed for temperature fluctuations from -20°C to +85°C occurring in the space between the panes of the composite window
