Highly thermaly insulated block window with concealed vent for sophisticated design requirements
With outstanding thermal insulation values and a slimline design without visible vent contours, Schüco AWS 75 BS.HI+ (Block System High Insulation) meets the highest energy-efficiency and architectural requirements with the greatest possible transparency.
The aluminium block window system is part of the Schüco AWS modular system for the 75 mm basic depth and features optimised characteristics in terms of function, energy efficiency and design.
Thanks to a high level of system flexibility, attractive design solutions are possible for a wide range of architectural requirements in the building envelope: as a punched opening, ribbon window or insert unit in Schüco façade systems as well as a “floating window”.
The wide range of opening types includes designs such as side-hung and turn/tilt vents as well as bottom-hung toplights.
Another benefit of the block window series is the wide range of profiles for the system, including corner mullions, structural mullions, symmetrical and asymmetrical mullions, as well as TipTronic vent profiles. They enable the use of the Schüco TipTronic SimplySmart generation of electrical fittings, a fully integrated drive for numerous opening types.
The window system thereby sets standards in terms of planning and design flexibility for the construction of energy-efficient, stylish building envelopes.

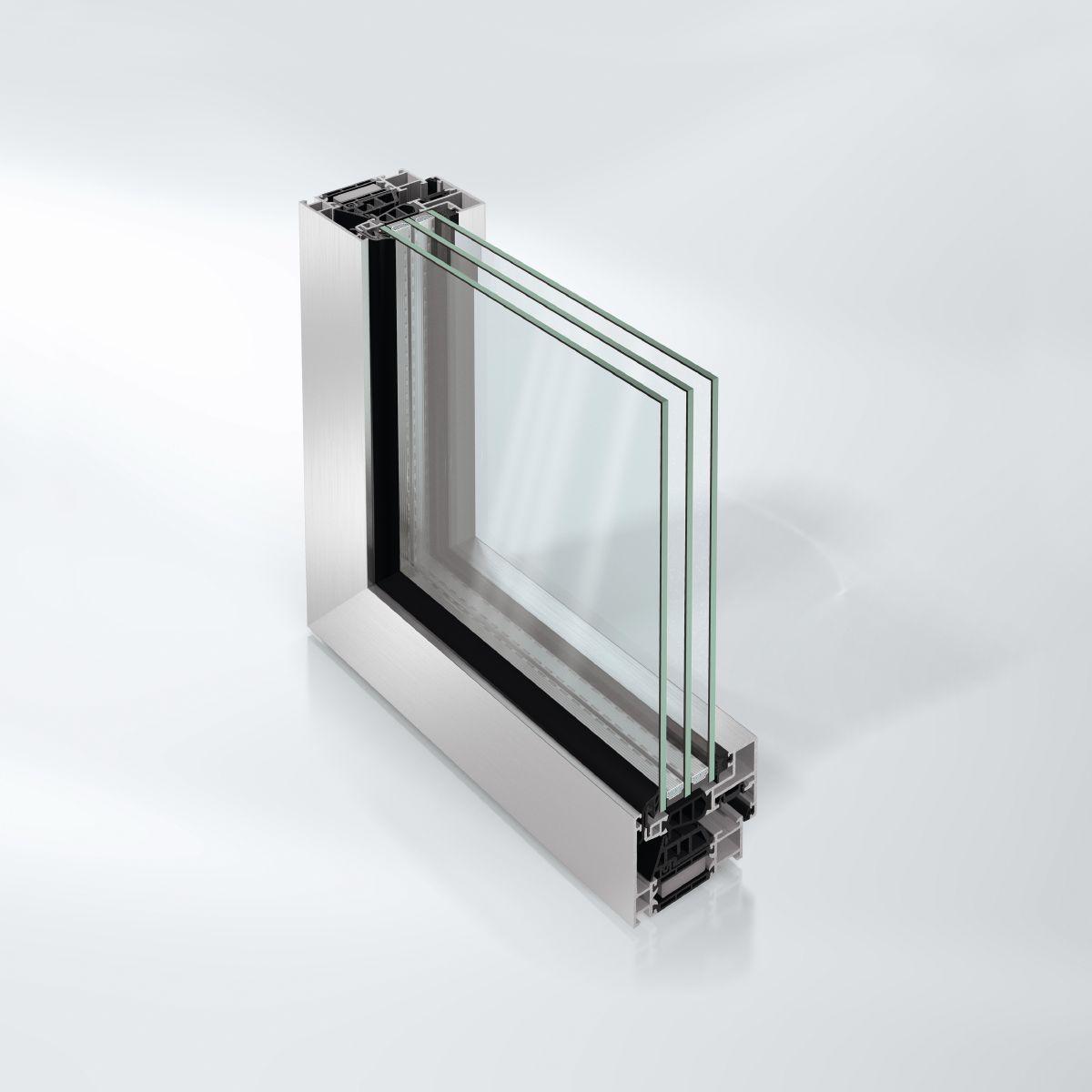

Schüco AWS 75 BS.HI+, highly thermally insulated aluminium block window system
With 75 mm basic depth.
Design features:
Integrated system, the vent frames are positioned behind the rebate of the outer frames.
The clear dimension of the opening vents is identical to that of the fixed glazing and/or infill.
Face-fitted vent frame on the room side rebated by 10 mm from the frame edge.
Thermally insulated insulating bars with three hollow chambers form the rebate for the co-extruded, double hollow chamber centre gasket fitted with a foam core.
For improved separation of heat transfer, this must also be designed with a fin.
The joints of the external glazing retention beads are covered by the glazing gasket, which is designed as a vulcanised gasket frame.
The glazing gaskets with fins on the room side also seal off the glazing rebates.
Profile basic depths:
Outer frame, mullion, transom 75 mm
Vent frame (face-fitted window) 80 mm
Profile face widths:
Outer frame, bottom 91.5 mm
Outer frame 66.5 mm
Insert outer frame 50 mm
Mullion 107 mm
Transom 91.5 mm
Double-vent profile 83 mm
