Multifunctional solution for large-format commercial doors with high continuous loads
The Schüco ADS 75 HD.HI (Heavy Duty High Insulated) aluminium door system combines high durability with multiple functions and attractive design options – perfect for challenging commercial buildings with high security requirements.
The extremely stable Heavy Duty system is designed specifically for heavy or oversized door leafs with large opening widths and high continuous loads. As a further benefit, the system can also be used as a multifunctional door – including integration in building security and automation systems, e.g. as a panic door in office and public buildings, hospitals or schools.
Together with its narrow face widths, diverse design options and increased burglar resistance and sound reduction, the system makes flexible door solutions possible for the starkly differing requirements of commercial construction.

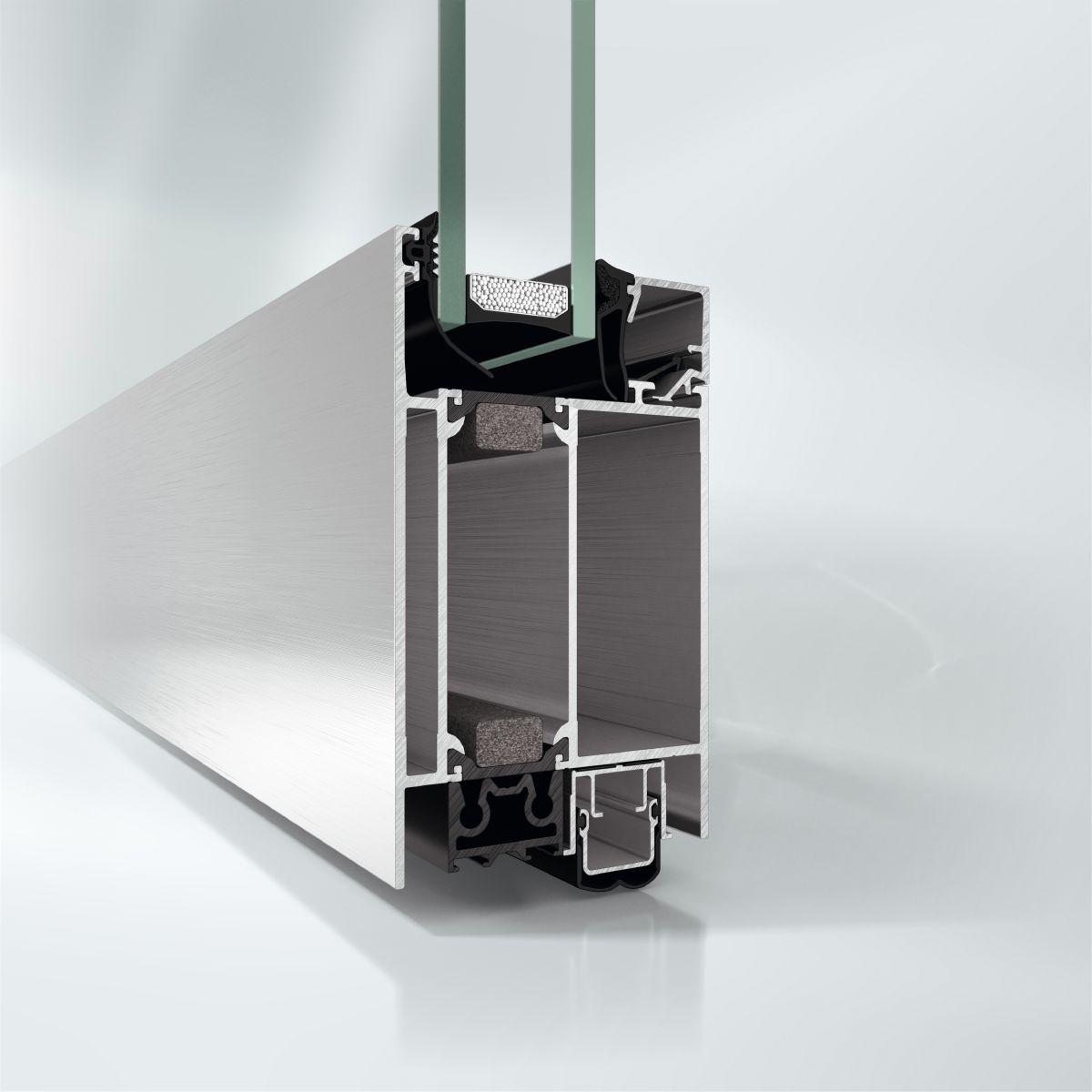

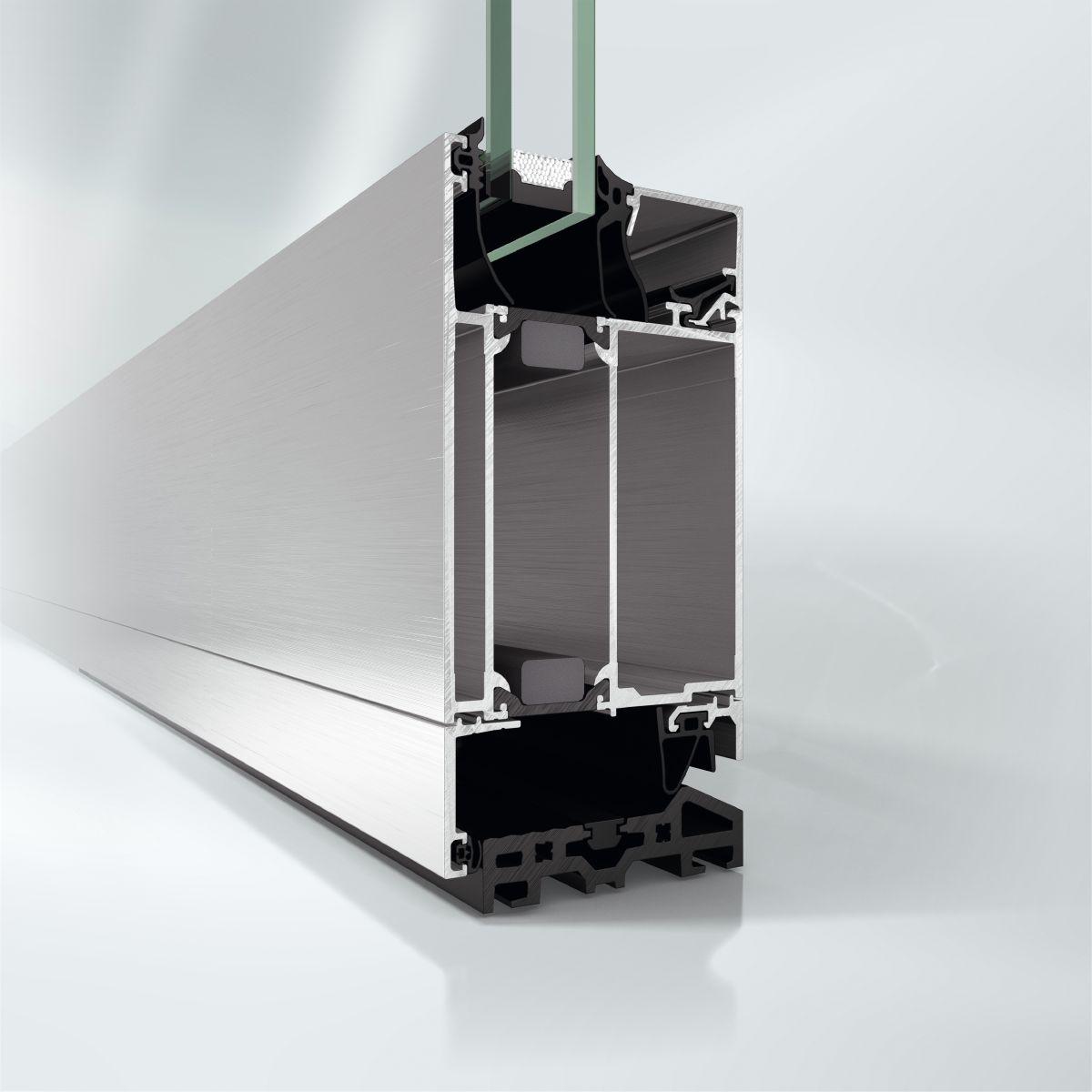

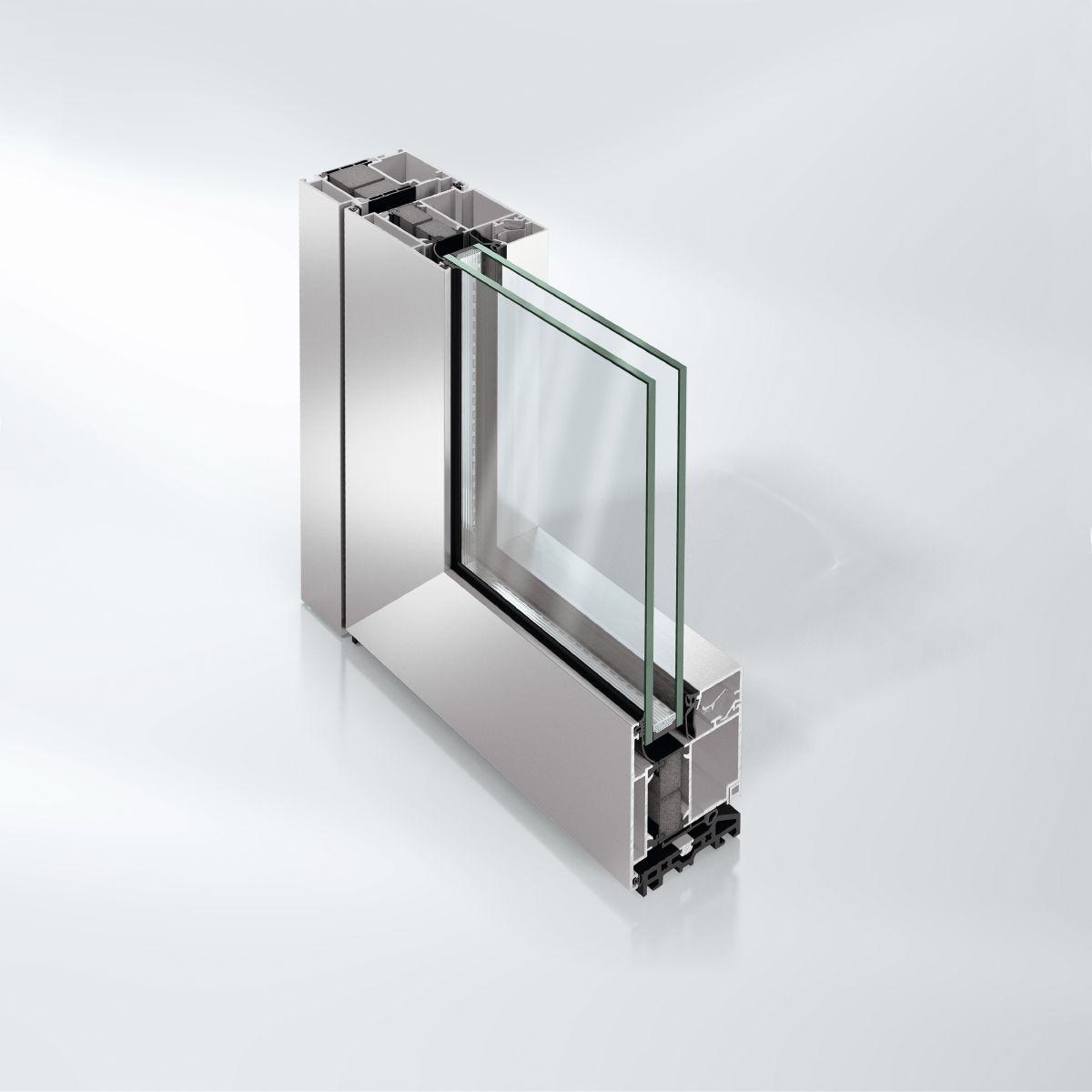

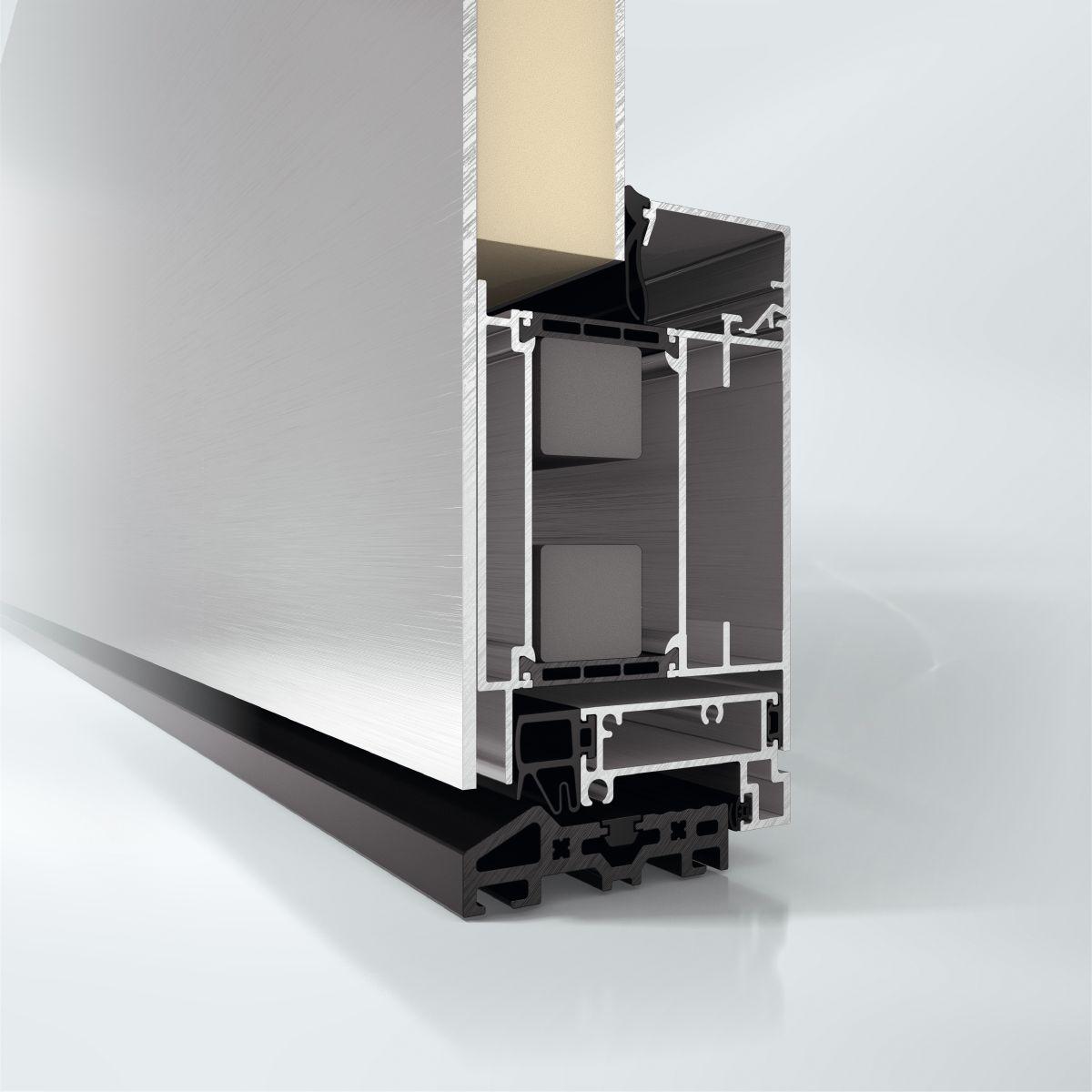

Schüco ADS 75 HD.HI, highly thermally insulated aluminium door system
With 75 mm basic depth, for particularly heavy and oversized leaves subject to high continuous loading
Design features:
Internal and external flush-fitted door constructions with 5 mm shadow joint on both sides; with 11 mm shadow joint for double-leaf panic doors.
The thermal breaking split insulating bars are fitted with foam insulation for high thermal insulation.
The door leaf profiles are fitted with thermal breaking split insulating bars.
The door leaves must have a four-sided mitre-cut leaf profile.
The system must be fitted with square glazing beads.
For increased thermal insulation, glazing gaskets with fins must be used.
If there are no other requirements specified for the sill by standards / guidelines / local building regulations, the bottom door sill must be fitted with an aluminium/plastic rebate threshold, height 20 mm, and a gasket system for sealing at a test pressure of up to 150 PA in accordance with DIN EN 12208.
Profile basic depths:
Outer frame, mullion, transom 75 mm
Leaf frame (door), flush-fitted 75 mm
Profile face widths:
Insert outer frame, inward-
opening door 51 mm
Insert outer frame, outward-
opening door 26 mm
Outer frame / sill, bottom 106 mm
Outer frame, side and top 79 mm
Mullion 94 mm
Transom 94 mm
Inward-opening leaf frame,
flush-fitted inside and outside,
continuous 73 mm
Outward-opening leaf frame,
flush-fitted inside and outside,
continuous 98 mm
