Schüco doors

Economy 50 Door System

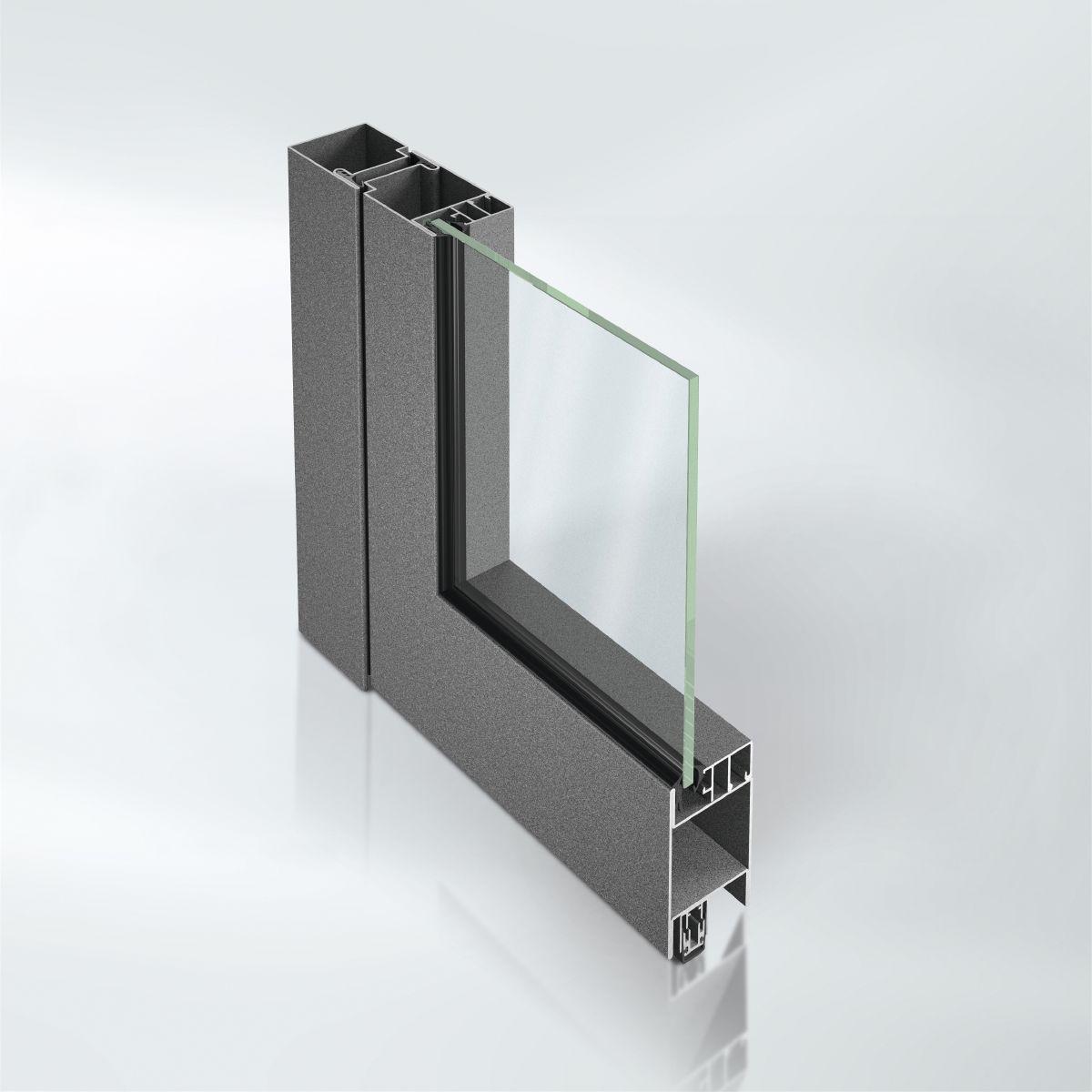

Non-insulated steel profile system for flush-fitted door constructions in indoor areas

The perfect solution for flush-fitted single and double-leaf door constructions as well as fixed glazing in indoor areas – 50 mm basic depth. The continuous shadow gaps on the inside and outside grant the slimline door constructions an elegant appearance.

The system compatibility of the non-insulated system guarantees visually uniform solutions in combination with thermally insulated Janisol doors as well as Janisol smoke and fire doors. This allows uniform face widths for different planning requirements.

Planning benefit

High mechanical stability for heavily used doors, for example in public areas
Structural alternation between tubular frame construction and cladding
Profile-integrated finger protection on the secondary closing edge
Slimline door construction with continuous outside shadow gaps
Comprehensive sound reduction expert report
Optional: Swing door design possible

Technical information

CE marking

Yes

Barrier-free (≤) 20 mm

Yes

Zero-level threshold

Yes

Mechanical strength

Class 4

Proof of durability

200,000 cycles in accordance with DIN EN 12400

Certificates

EPD

FUNCTIONS

Single-vent, Double-vent, Single-vent with toplight and side section, Double-vent with toplight and side section

Max. width

2440 mm

Max. height

2500 mm

Opening type

Inward and outward, Single and double-vent

Min.-max. height

1915...2500 mm

Min.-max. width

530...2440 mm

Gallery

Specification texts

Economy 50 door
Steel profile system for doors and partition walls with 50 mm basic depth, for indoor components and components without thermal insulation requirements.

Design features:
All corner and T-joints are securely welded together.
Glass and/or infills of 4 mm to 35 mm can be used.
Door leaves flush-fitted inside and outside with a 5 mm shadow gap on all sides.
Double, continuous rebate weatherstrip on three sides. Transition to automatic floor seal without using special seals.
Please select the required type of glazing and delete the alternatives.
The glazing of the construction is arranged around the centre (depth of glazing beads identical inside and outside), glazing bead: ???
A glazing bead is used on one side of the glazing.
Glazing bead: ???
End of selection of glazing type
Please select the required type of seal and delete the alternatives.
The infills are sealed using EPDM weatherstrips. Specially designed glazing beads must be used for this purpose. (Important: dry, internal areas only)
The infill is sealed in using double-sided tape and sealing is by means of permanently elastic sealing compound.
End of seal selection

Profile depths:
Outer frame, mullion, transom 50 mm
Leaf frame (door) 50 mm

Profile face widths:
Outer frame (door) 63 mm
Z trim (door) 43 mm
Outer frame (glazing) 90 mm
Sill rail profile (glazing) 90 mm
Mullion 80 mm
Transom 80 mm
Leaf frame (door) 63 mm
Sill rail profile (door) 90 mm
