Schüco Door System AD UP Design Edition Gen2

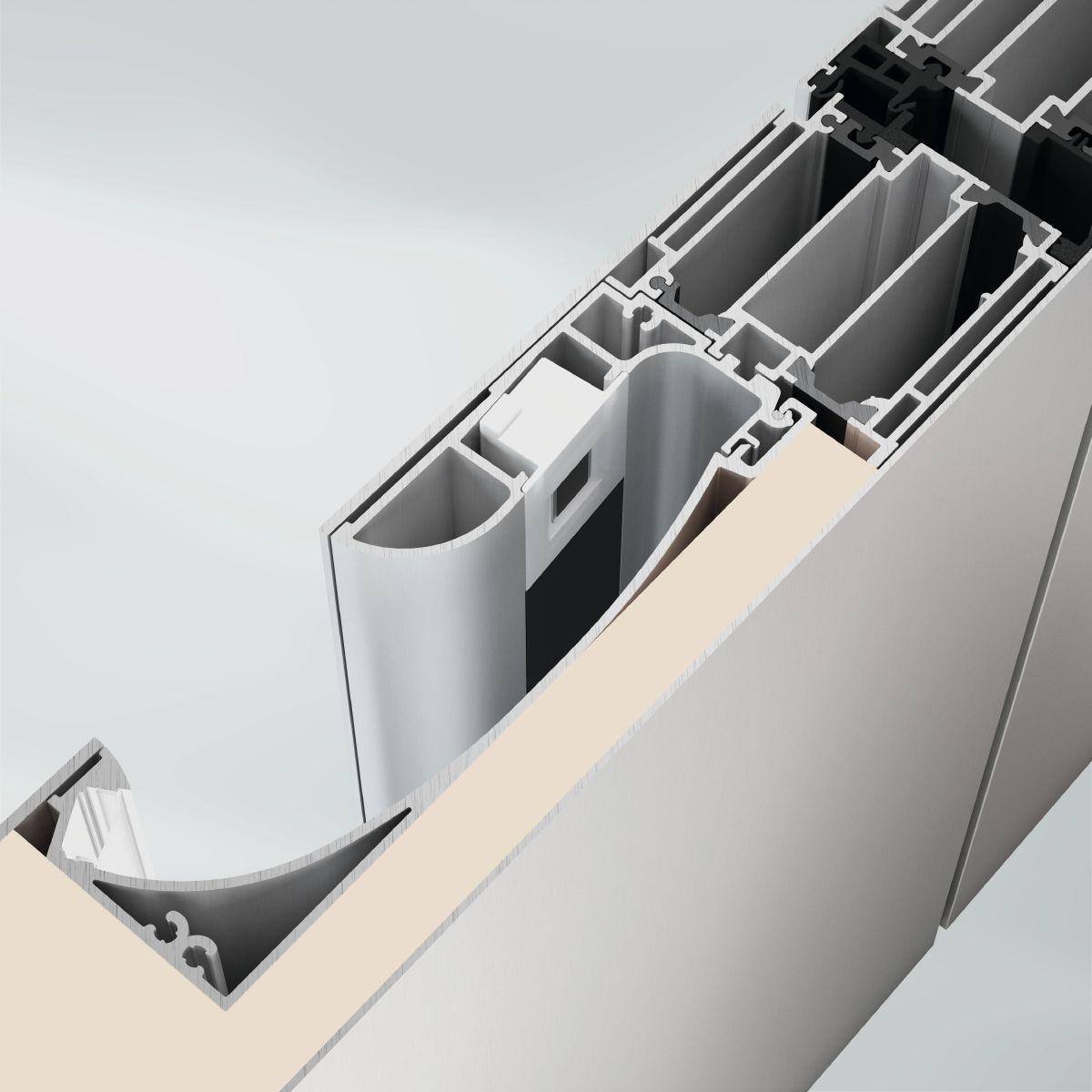

The new Schüco flush pull grip 2.0 combines timeless design with ergonomics and intelligence

The new flush pull grip for doors is ergonomically adjusted to your hand. This ensures a gripping motion that feels more comfortable and secure.

The controllable LED light strips integrated in the flush pull grip can be incorporated into the smart home system in combination with a gateway with Zigbee control (Alexa, Philips Hue, TRÅDFRI etc.) and operated via an app. This enables users to adjust the colour temperature and intensity to the environment and set lighting times.

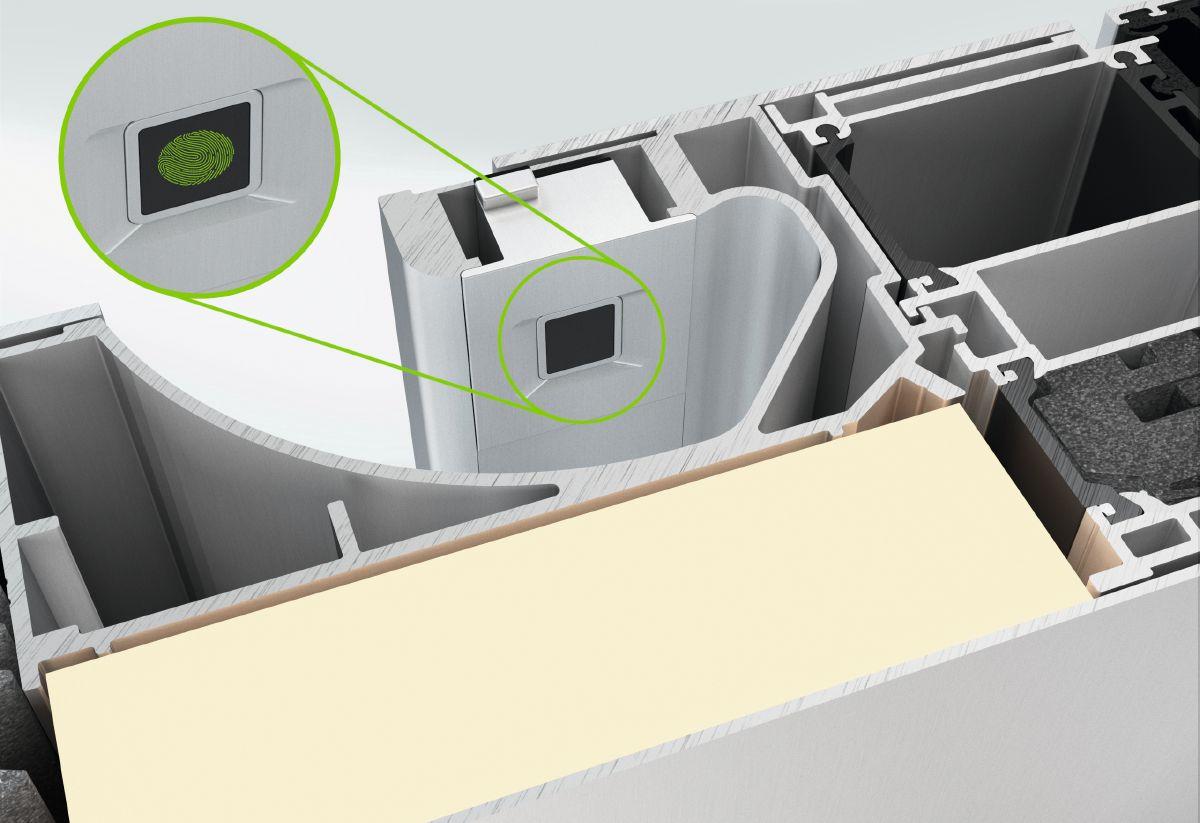

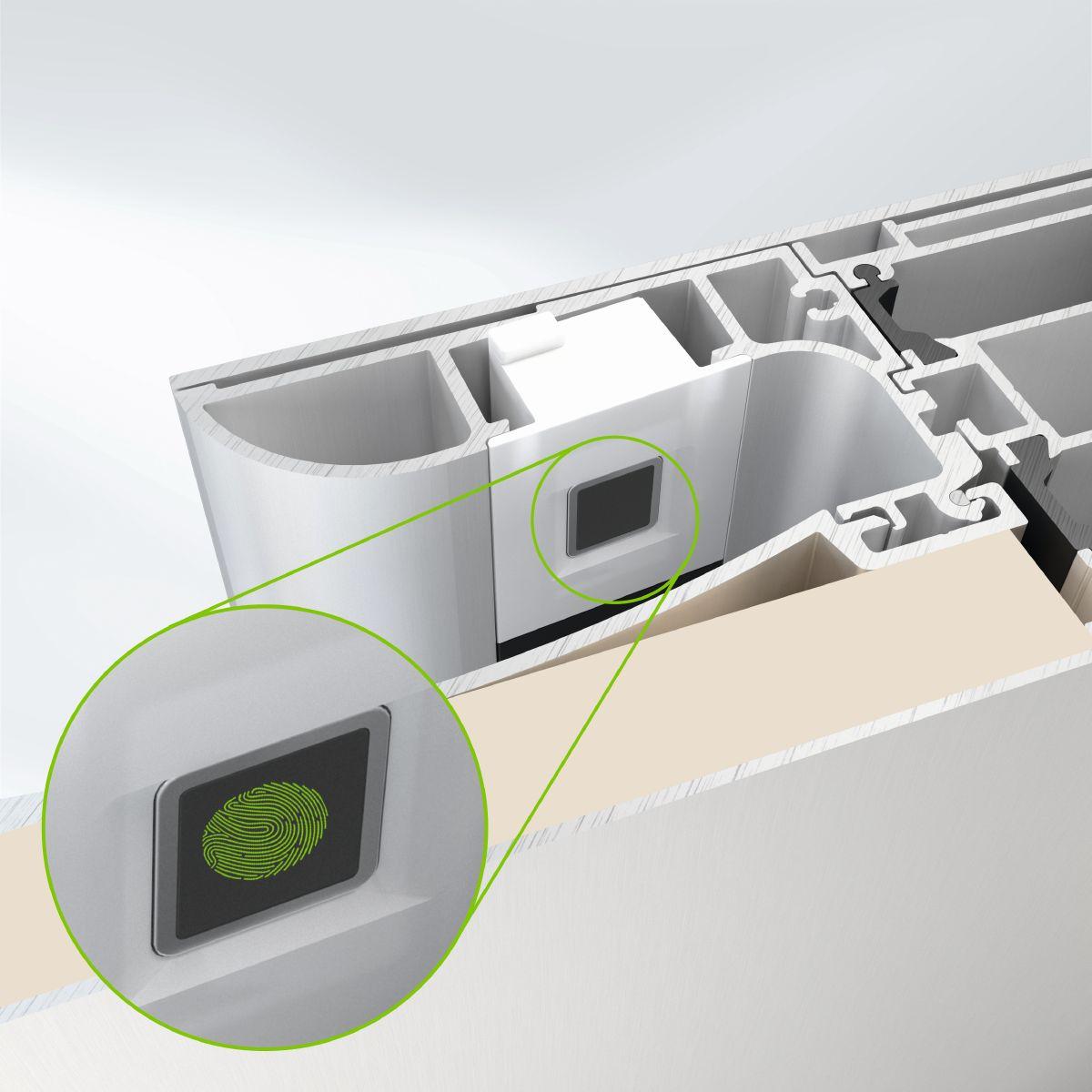

There is also the option of integrating one of the new generation of fingerprint sensors into the flush pull grip. This can be used to unlock and open the door in just one hand movement. The fingerprint sensor can be adjusted in any vertical position and can be adapted to the individual needs of the end user at any time.

Planning benefit

Concealed integration provides a clean aesthetic while also increasing protection against vandalism at the same time
Combining the fingerprint sensor with the ergonomic flush pull grip means the door can be locked and opened in one hand movement – increasing ease of use in the process
Being able to connect to Smart Home and change the electrical components means that user requirements are met at all times, even if they change

Technical information

CE marking

Yes

Min.-max. glass/panel thickness

75...90

Area of application

Residential projects, Commercial projects

Mechanical strength

Class 3

Proof of durability

Class 7, Class 8

FUNCTIONS

Single-vent, Double-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left

Max. width

1250 mm

Max. height

2500 mm

Opening type

Side-hung, Outward, Inward

Min.-max. height

...2500

Min.-max. width

...1250
