Schüco aluminium windows

Schüco Window System AWS 75.SI+ optimized

Schüco AWS optimized window system: a comprehensive, high-performance window system for sustainable buildings

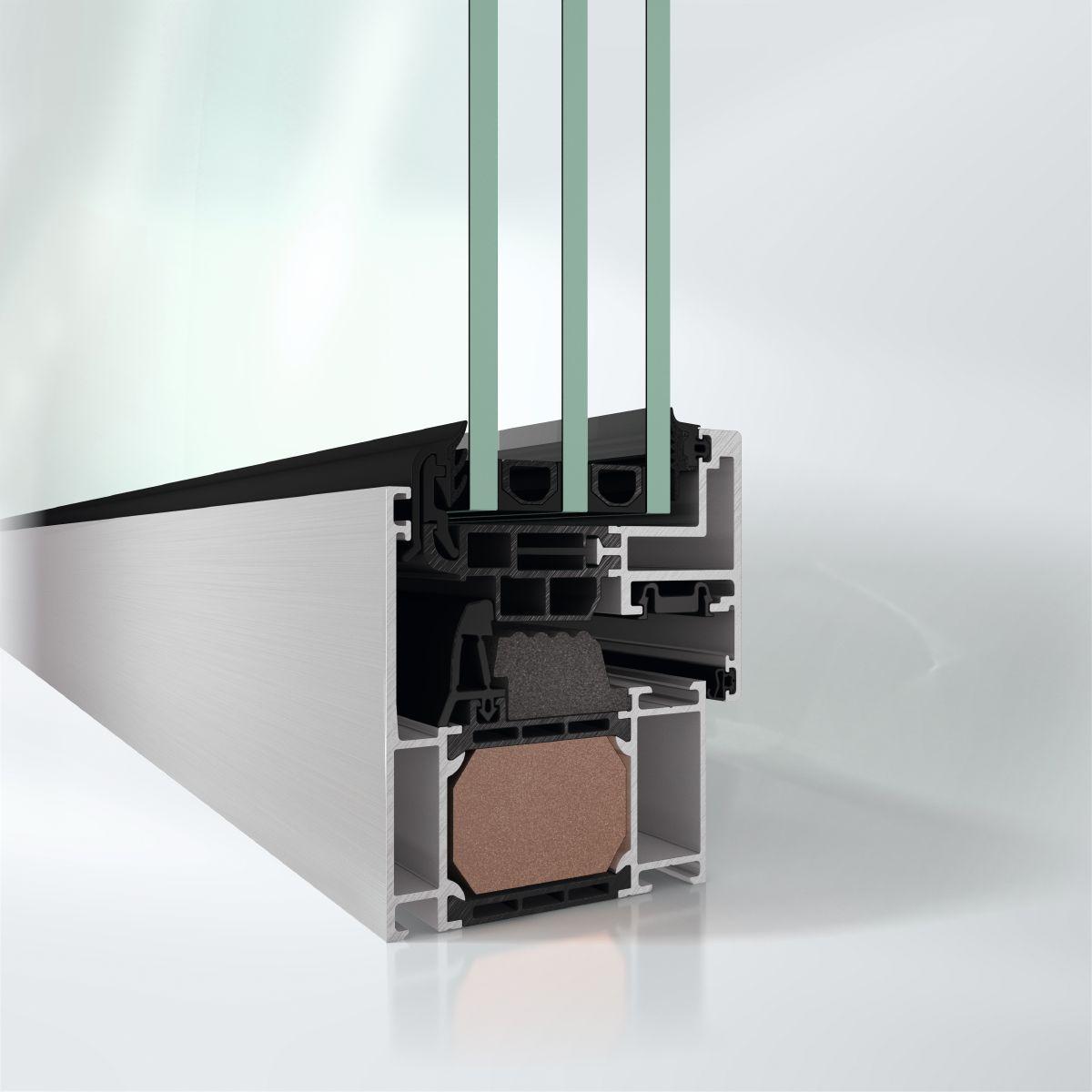

The Schüco AWS 75.SI+ optimized (Super Insulated) window system for the 75 mm basic depth is part of the Schüco AWS system platform and allows high energy efficiency and architectural requirements to be fulfilled through its future-oriented, optimised U values.

The window system has been passive house-certified from a face width of 178 mm by the PHI Darmstadt.

Thanks to newly developed thermal insulation technology, our optimised systems achieve a high level of energy efficiency. This significantly improves the thermal performance values compared to the AWS standard system.

AWS 75.SI+optimized is a comprehensive and high-performance vent and frame system with numerous solutions.

Planning benefit

With the performance characteristics of the “optimized” product series, we are ideally equipped for the diverse structural and architectural requirements of sustainable building
A wide range of design options in the AWS profile modular system
Functionality with the AvanTec SimplySmart system fittings
Security and burglar resistance to RC1N / RC2 / RC2N / RC3 in accordance with DIN EN 1627
Diverse range of handles with numerous special solutions and lockable options
Attractive upgrade options, e.g. with the Integralmaster internal sun shading, glare protection and screening system.

Technical information

Min. face width

59 mm

Max. glass/panel thickness

57 mm

Uf value of frame (≥)

0,63 W/(m²·K)

Max. vent width

1700 mm

Max. vent height

2500 mm

Max. sound reduction index Rwp

48 dB(A)

Air permeability

Class 4

Watertightness

Class 9A

Burglar resistance

Up to RC3

Wind load resistance

Class C5 / B5

CE marking

Yes

Total basic depth

85 mm

Width of vent frame

85 mm

Max. vent weight

200 kg

Min.-max. vent height

540...2500 mm

Min.-max. vent width

450...1700 mm

Outer frame face width

59 mm

Vent frame face width

48 mm

Max. face width of mullion

250 mm

Min.-max. face width of mullion

84...250 mm

Max. face width of meeting stile

203 mm

Min.-max. face width of meeting stile

148...203 mm

Min.-max. glass/panel thickness

14...57 mm

Barrier-free (≤) 20 mm

Area of application

External use, Residential projects, Commercial projects, Window, Healthcare, Education, Accommodation facilities, Industrial buildings

Concealed fittings system

Yes

Surface finishes

RAL, Powder, Anodised, Paint, Duraflon, Decorative foils

Glass composition

Triple glazing

Opening type: manual, inward-opening

Turn/tilt, Side-hung, Bottom-hung, Double-vent turn/tilt / side-hung, Double-vent side-hung / side-hung, Tilt/slide, Toplight, Tilt-before-turn, Fixed light

Opening angle

180 °

Mechanical strength

Class 4

Proof of durability

Class 3

Corrosion protection class for fittings

Class 5

Ug value of glass (≤)

0.5 W/(m²·K)

Drainage levels

Security glazing

Yes

Suitable for safety barrier loading

Yes

Toplight

Yes

Schüco sun shading possible

Yes

Electronic monitoring

Yes

Certificates

Passive house certificate

Passive house class

phC

Gallery

Specification texts

Schüco AWS 75.SI+ optimized aluminium window system to passive house standard
With a basic depth of 75 mm.

Design features:
Face-fitted vent frame on the room side rebated by 10 mm from the frame edge, flush-fitted outer side.
The outer frame contains a highly thermally insulated insulation zone. The vent profiles feature a four-headed insulating bar and an optimised, highly thermally insulated insulation zone. The system also consists of a thermally insulated centre gasket and structurally advanced glazing rebate insulation.
The system must be fitted with rectangular glazing beads.
The glazing beads are installed using plastic clips which take up tolerances.

In order to best meet the respective thermal and production requirements, three different gasket combinations can be used.
– Two-part centre gasket combination consisting of a TPE centre gasket and a PE insulation profile.
– Single-part TPE centre gasket
– Single-part centre gasket or gasket frame made of microcellular rubber

Profile basic depths:
Outer frame, mullion, transom 75 mm
Vent frame 85 mm

Profile face widths:
Continuous outer frame from 59 mm
Mullion from 84 mm
Transom from 84 mm
Vent frame (window) from 41 mm
Vent frame (window door) from 41 mm
Double-vent profile from 52 mm
