Schüco Window System AWS 90 AC.SI

Natural window ventilation with simultaneous sound reduction

Urban noise is not just disturbing, it also impacts on quality of life and in cases of constant noise exposure even leads to illness. The WHO (World Health Organization) guidelines on environmental noise state that it is one of the most important environmental risks to the physical and psychological health of the population.

We are faced with a constant dilemma – either close the windows for sound reduction or open them for ventilation but be faced with the associated noise pollution.

The solution: An acoustic window solution that can be opened for ventilation and keeps disturbing traffic noise outside.

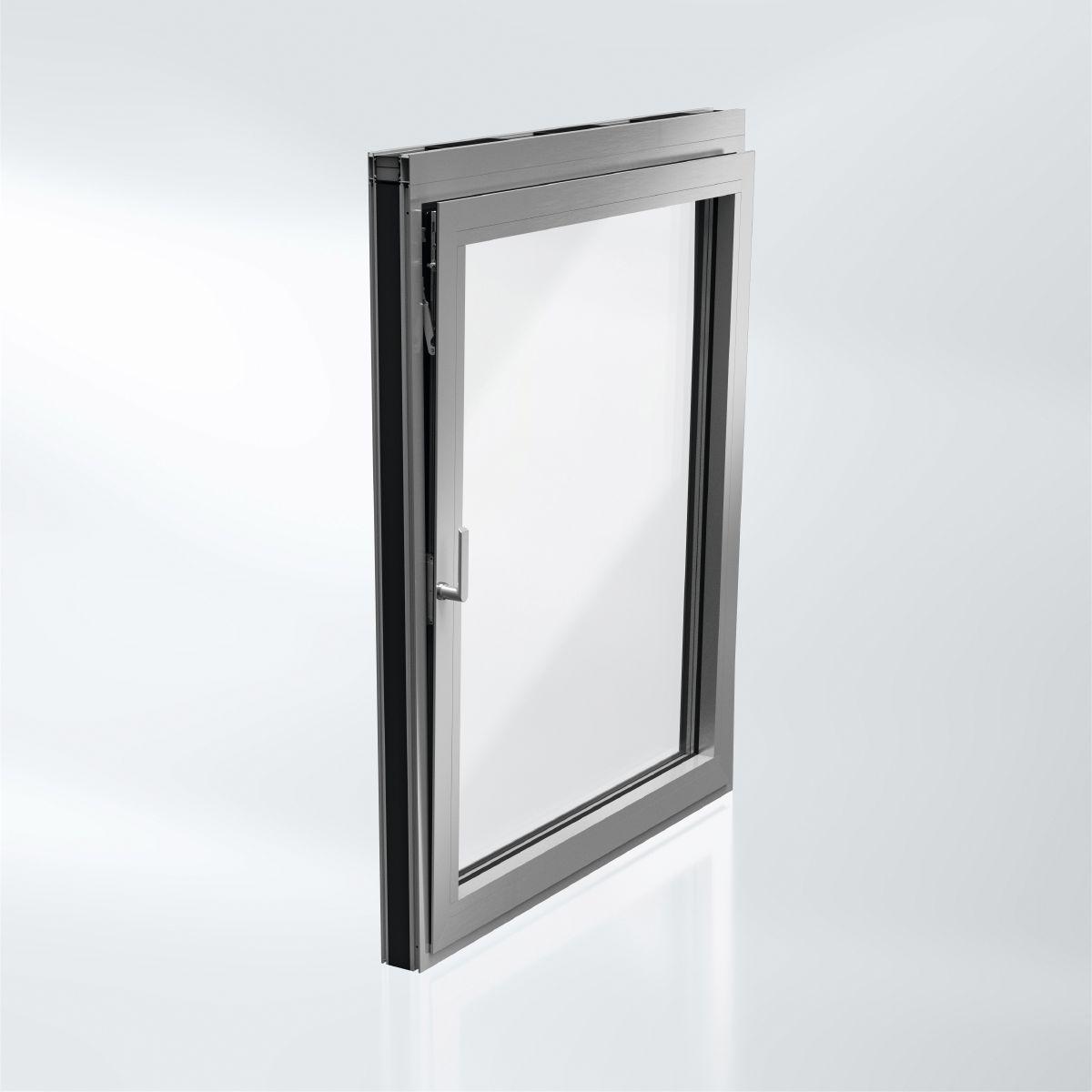

AWS 90 AC.SI is a window system that is particularly suitable for buildings in noisy environments. Especially sensitive rooms, such as bedrooms and children’s rooms on the façade sides facing the street, can be naturally ventilated with this window system, without being disturbed by traffic noise.

  • Single-skin window solution for natural window ventilation with simultaneous sound reduction in the tilted position

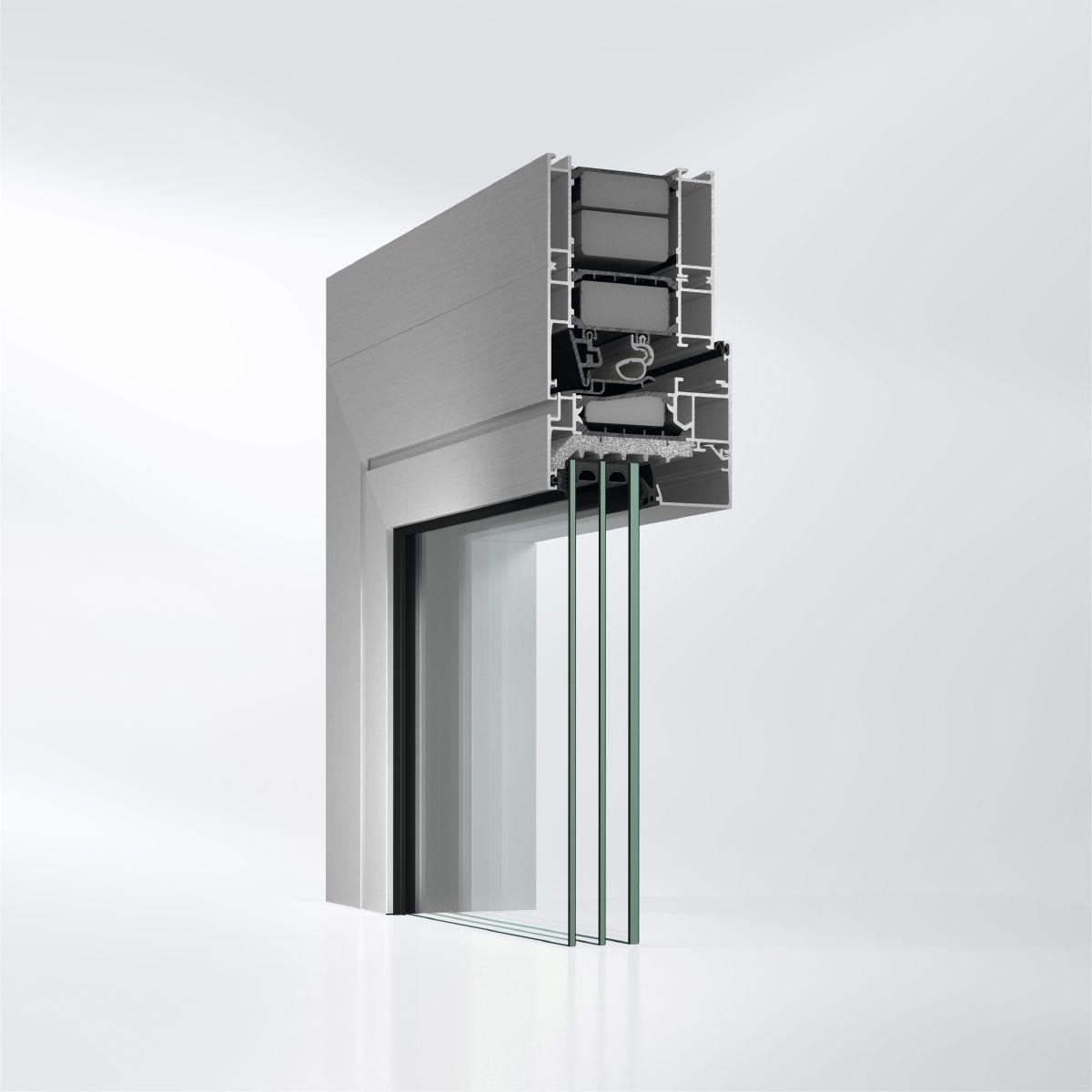

  • With a tilted vent, air is guided via the pre-fabricated cassettes in the upper outer frame
  • The window can be swung fully open for brief transverse ventilation or cleaning of the outer glass pane and an opening angle of 180° is made possible in combination with the concealed Schüco AvanTec SimplySmart system fittings.
  • Moved into the acoustic position from the tilt position by means of limiting stays
  • Simple maintenance from inside the building, with easy replacement of filter cartridges when the vent is swung open
Min. face width
99 mm
Max. glass/panel thickness
68 mm
Uf value of frame (≥)
0.76 W/(m²·K)
Max. vent width
1700 mm
Max. vent height
2500 mm
Max. sound reduction index Rwp
47 dB(A)
Air permeability
Class 4
Watertightness
Class 9A
Burglar resistance
Up to RC 2
Wind load resistance
Class C5 / B5
CE marking
Yes
Total basic depth
100 mm
Width of vent frame
100 mm
Max. vent weight
250 kg
Min.-max. vent height
780...2500 mm
Min.-max. vent width
470...1700 mm
Outer frame face width
64 mm
Vent frame face width
43 mm
Max. face width of mullion
260 mm
Min.-max. face width of mullion
94...260 mm
Min.-max. glass/panel thickness
28...68 mm
Area of application
External use, Residential projects, Commercial projects
Concealed fittings system
Yes
Surface finishes
Powder, Anodised, Paint
Glass composition
Triple glazing
Operating forces
Class 1
Barrier-free operating forces in accordance with DIN 18040
No
Opening type: manual, inward-opening
Turn/tilt, Side-hung
Opening angle
180 °
Mechanical strength
Class 4
Proof of durability
Class 3
Corrosion protection class for fittings
Class 5
Ug value of glass (≤)
0.5 W/(m²·K)
Drainage levels
3
Security glazing
Yes
Suitable for safety barrier loading
Yes
Colour-independent
Yes
