Schüco Window System AWS 90.SI+ optimized

Schüco AWS optimized window system: ideally equipped for the requirements of sustainable passive houses

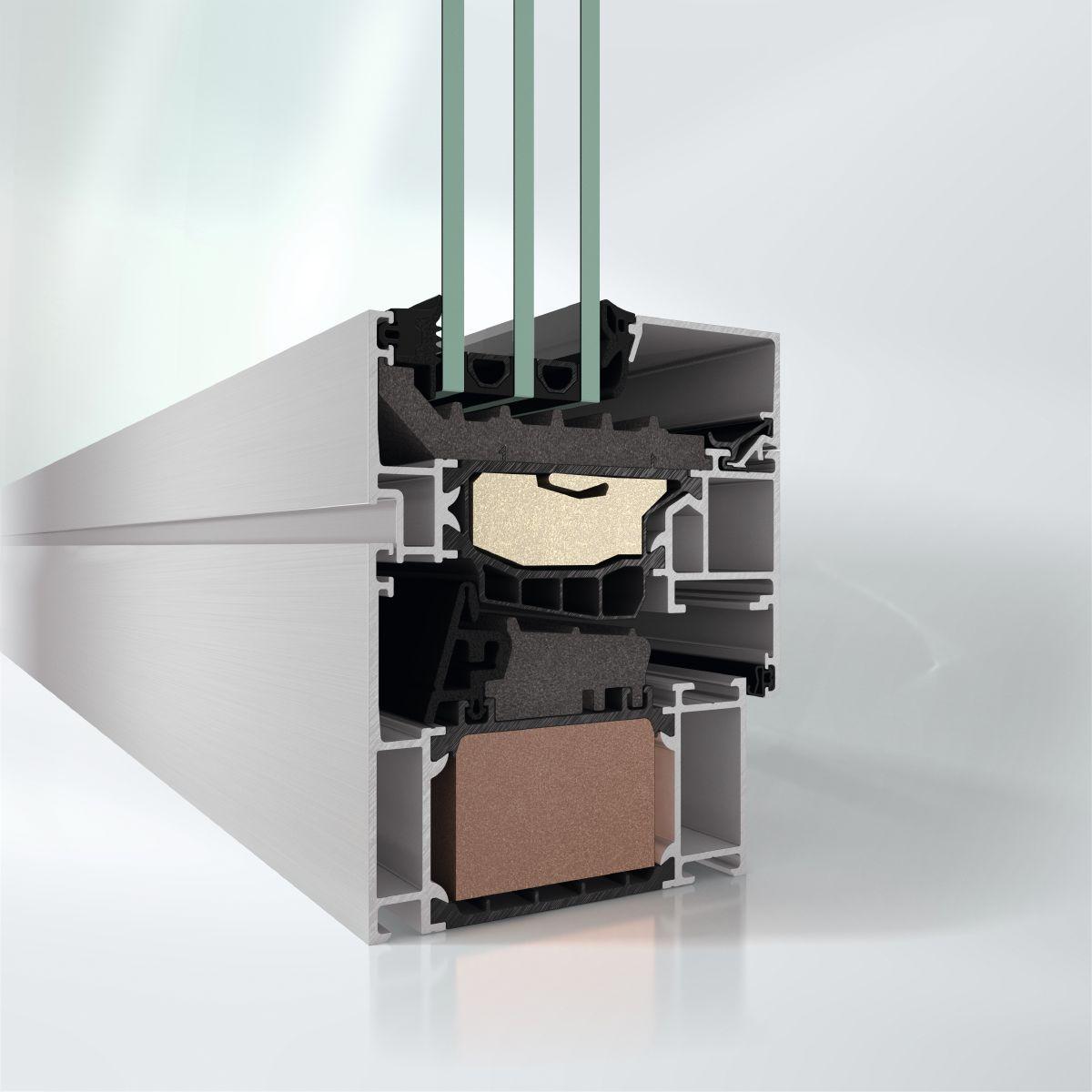

The highly thermally insulated Schüco AWS 90.SI+ optimized (Super Insulated) window system for the 90 mm basic depth is part of the Schüco AWS system platform and enables the highest energy efficiency, architectural and structural requirements to be fulfilled through its future-oriented, optimised U values.

The window system has been passive house-certified from an external face width of 117 mm by the PHI Darmstadt.

Thanks to newly developed thermal insulation technology, our optimised systems achieve a high level of energy efficiency. This significantly improves the thermal performance values in comparison to the AWS standard system.

AWS 90.SI+ optimized is a comprehensive, high-performance vent and frame system with numerous solutions for an energy-efficient and sustainable building envelope.

Planning benefit

Certified passive house window with a Uf value of 0.80 W/(m2K) (117 mm external face width)
With the performance characteristics of the “optimized” product series, we are ideally equipped for the diverse structural and architectural requirements of constructing sustainable passive houses
A wide range of design options in the AWS profile modular system
Functionality with the concealed Schüco AvanTec SimplySmart system fittings
Security and burglar resistance to RC1N / RC2 / RC2N / RC3 in accordance with DIN EN 1627
Diverse range of handles with numerous special solutions and lockable options
Attractive upgrade options, e.g. with the Integralmaster internal sun shading, glare protection and screening system.

Technical information

Min. face width

112 mm

Max. glass/panel thickness

64 mm

Uf value of frame (≥)

0.51 W/(m²·K)

Max. vent width

1700 mm

Max. vent height

2500 mm

Air permeability

Class 4

Watertightness

Class 9A

Burglar resistance

Up to RC3

Wind load resistance

Class C5 / B4

CE marking

Yes

Total basic depth

100 mm

Width of vent frame

100 mm

Max. vent weight

200 kg

Min.-max. vent height

540...2500 mm

Min.-max. vent width

470...1700 mm

Outer frame face width

64 mm

Vent frame face width

43 mm

Max. face width of mullion

260 mm

Min.-max. face width of mullion

94...260 mm

Max. face width of meeting stile

163 mm

Min.-max. face width of meeting stile

148...163 mm

Min.-max. glass/panel thickness

24...64 mm

Area of application

External use, Residential projects, Commercial projects, Window, Healthcare, Education

Concealed fittings system

Yes

Surface finishes

RAL, Powder, Anodised, Paint, Duraflon

Glass composition

Triple glazing

Operating forces

Class 1

Opening type: manual, inward-opening

Turn/tilt, Side-hung, Bottom-hung, Double-vent turn/tilt / side-hung, Double-vent side-hung / side-hung, Tilt/slide, Toplight, Tilt-before-turn

Opening angle

180 °

Mechanical strength

Class 4

Proof of durability

Class 3

Corrosion protection class for fittings

Class 5

Ug value of glass (≤)

0.5 W/(m²·K)

Drainage levels

Integrated sun shading

Yes

Security glazing

Yes

Suitable for safety barrier loading

Yes

Colour-independent

Yes

Shear bond

Yes

Toplight

Yes

Schüco sun shading possible

Yes

Electronic monitoring

Yes

Certificates

Passive house certificate

Passive house class

phB

Gallery

Specification texts

Schüco AWS 90.SI+ optimized aluminium window system, passive house certified (by the Passive House Institute in Darmstadt)
With a basic depth of 90 mm.

Design features:
Face-fitted vent frame on the room side rebated by 10 mm from the frame edge, flush-fitted outer side
The outer frame contains a highly thermally insulated insulation zone. The vent profiles feature a four-headed insulating bar and an optimised, highly thermally insulated insulation zone. The system also consists of a thermally insulated centre gasket and structurally advanced glazing rebate insulation.
The system must be fitted with rectangular glazing beads.
The glazing beads are installed using plastic clips which take up tolerances.

In order to best meet the respective thermal and production requirements, three different gasket combinations can be used.
– Two-part centre gasket combination consisting of a centre gasket made of microcellular rubber
and a PE insulation profile
– Single-part TPE centre gasket
– Single-part centre gasket or gasket frame made of microcellular rubber

Profile basic depths:
Outer frame, mullion, transom 90 mm
Vent frame 100 mm

Profile face widths:
Continuous outer frame from 64 mm
Mullion from 94 mm
Transom from 94 mm
Vent frame (window) from 36 mm
Double-vent profile from 62 mm
