Schüco AWS Window System 70.HI barrier-free

Barrier-free window system with zero threshold and low operating forces

The innovative system extension in the Schüco AWS system installation depths 70 mm offers both high planning flexibility and process-reliable processing. A special feature of this system extension is the barrier-free zero threshold with intelligent sealing system:

It offers high driving rain tightness with large sash formats. In addition, the lowering seal with delayed hydraulic lowering ensures a optimal, force-free closing process.

There are various solutions for barrier-free windows in turn and turn-tilt versions with a horizontal handle as an additional option with a known processing principle of the sash and frame.

  • Zero threshold with driving rain tightness up to 9A
  • Roll-over capability class 6 according to ift guideline
  • Adjustable and verifiable operating forces according to DIN 18040-2- 30 N
  • Child’s play handle operation (5 Nm) due to optimised seal geometry
  • Can be used with commercially available drainage systems

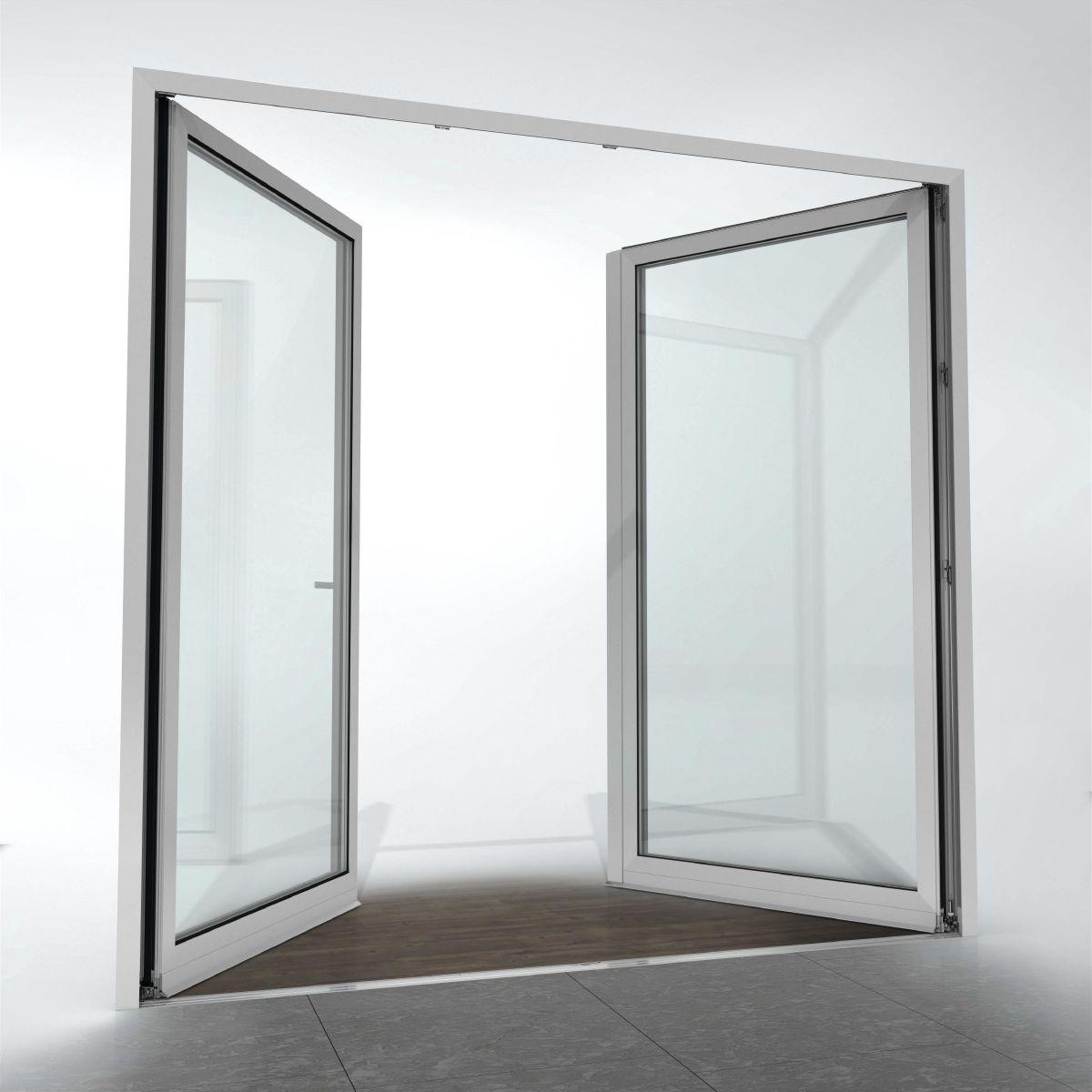

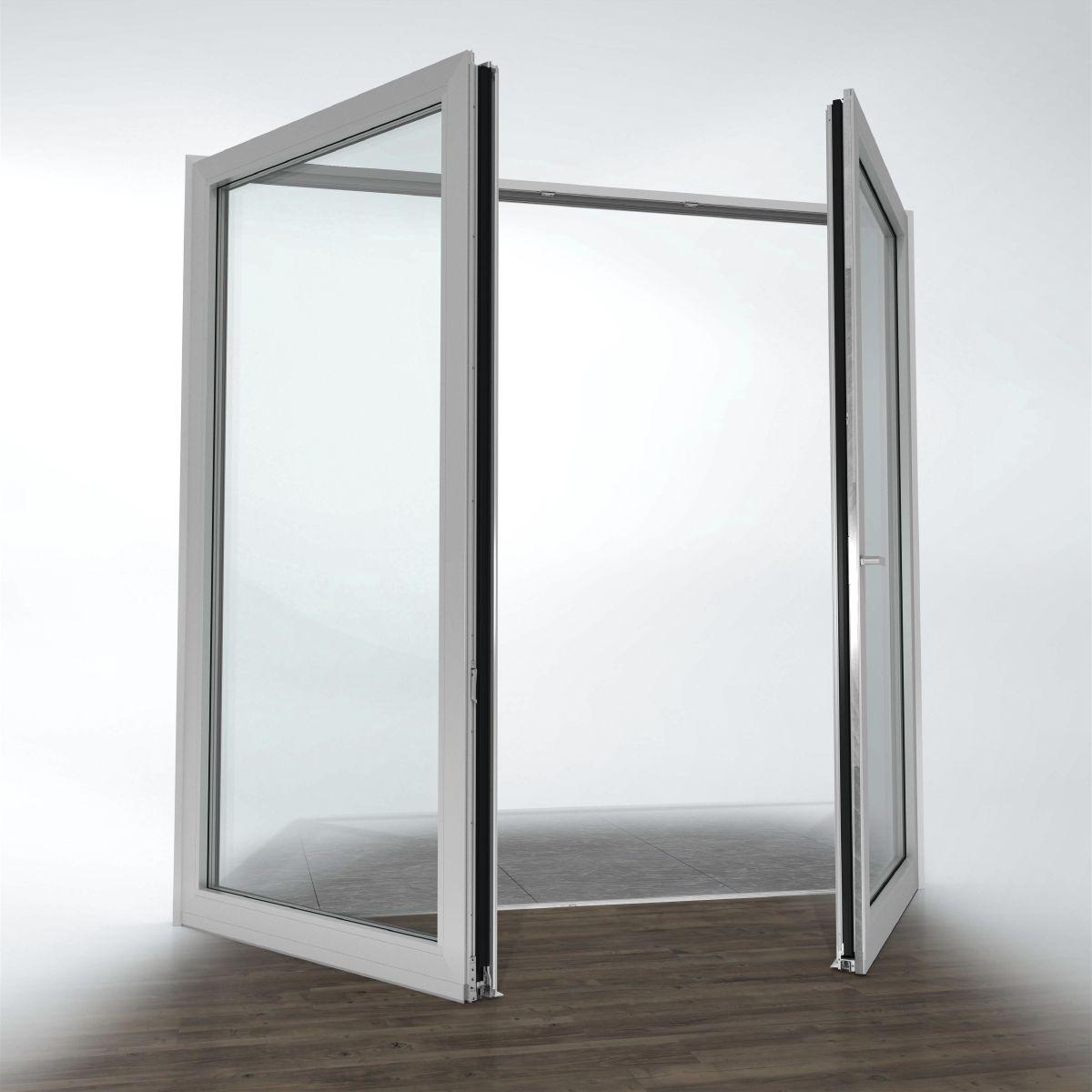

  • Available as 1-leaf or 2-leaf forend variant with zero threshold
Min. face width
91 mm
Max. glass/panel thickness
62 mm
Uf value of frame (≥)
1.5 W/(m²·K)
Max. vent width
1300 mm
Max. vent height
2500 mm
Max. sound reduction index Rwp
44 dB(A)
Air permeability
Class 4
Watertightness
Class 7A, Class 9A
Burglar resistance
Up to RC 2
Wind load resistance
Class C3 / B3, Class C5 / B5
CE marking
Yes
Total basic depth
80 mm
Width of vent frame
80 mm
Max. vent weight
160 kg
Min.-max. vent height
...2500 mm
Min.-max. vent width
...1300 mm
Outer frame face width
51 mm
Vent frame face width
40 mm
Max. face width of mullion
250 mm
Min.-max. face width of mullion
76...250 mm
Max. face width of meeting stile
163 mm
Min.-max. face width of meeting stile
148...163 mm
Min.-max. glass/panel thickness
21...62 mm
Barrier-free (≤) 20 mm
Yes
Zero-level threshold
Yes
Area of application
External use, Residential projects, Commercial projects, Healthcare
Concealed fittings system
Yes
Surface finishes
Powder, Anodised, Paint
Glass composition
Triple glazing
Operating forces
Class 2
Barrier-free operating forces in accordance with DIN 18040
Yes
Opening type: manual, inward-opening
Turn/tilt, Side-hung, Bottom-hung, Double-vent turn/tilt / side-hung, Double-vent side-hung / side-hung, Tilt-before-turn
Opening angle
180 °
Mechanical strength
Class 4
Proof of durability
Class 3
Corrosion protection class for fittings
Class 5
Drainage levels
3
Integrated sun shading
Yes
Security glazing
Yes
Colour-independent
Yes
Shear bond
Yes
Electronic monitoring
Yes
