Schüco window system LivIng Perfect

Precision and innovation perfectly combined: Schüco LivIng Perfect

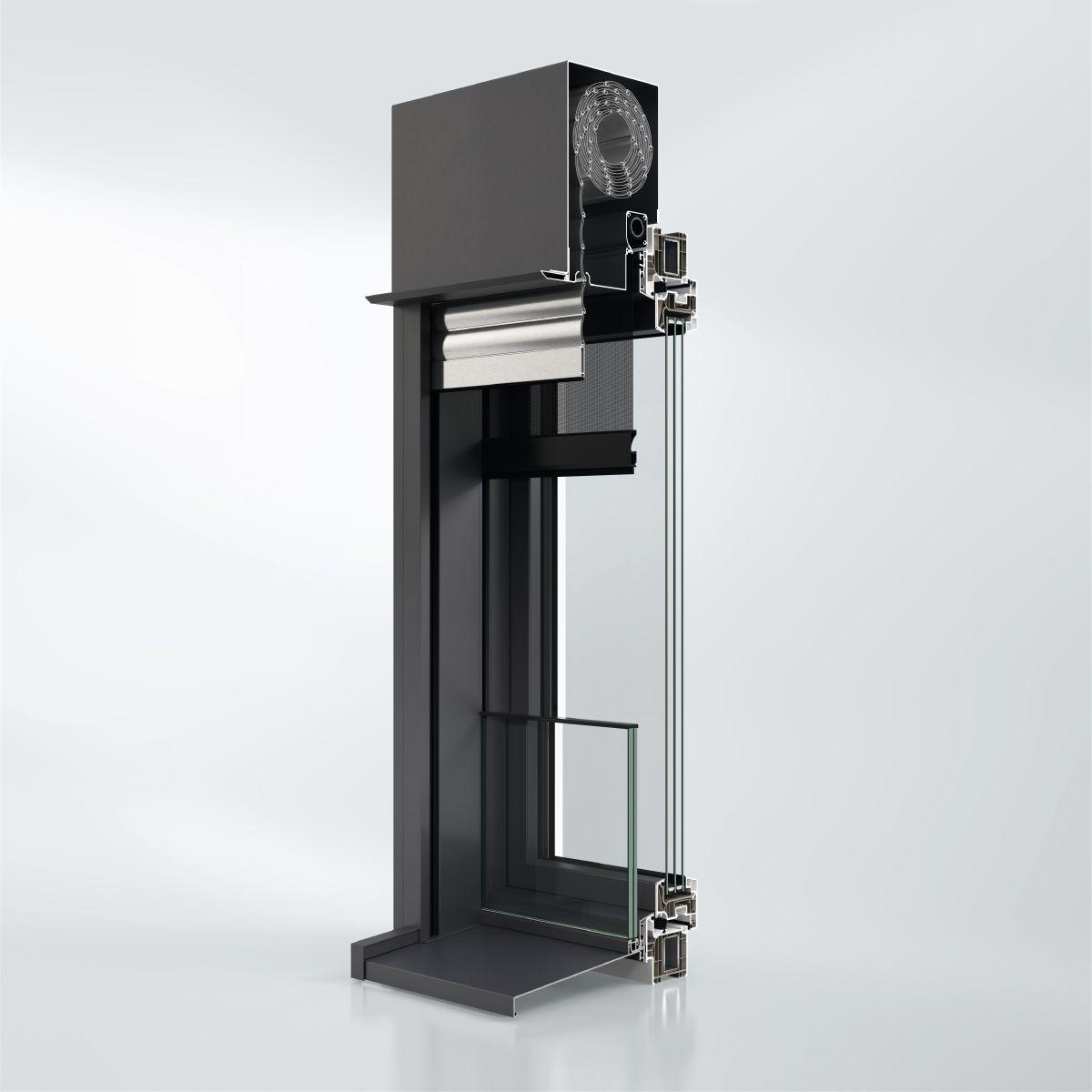

The complete solution from a single source: The Schüco LivIng Perfect PVC-U window system is combined with the sun shading, flyscreen and safety barrier add-ons in the Perfect base system to form a fully integrated unit across all trades. This offers very clear benefits in the construction process. Thanks to the prepared and prefabricated system components, the planning, fabrication and installation work is minimised – with greater reliability and higher cost-effectiveness. And the uniform colour of all the component surfaces of the unit can be selected individually to guarantee aesthetically pleasing solutions to all the demands of modern building projects.

The flexible Schüco Perfect modular solution resolves well-known interface problems between trades in the wall opening with impressive technical and visual precision. The patented drainage kerb piece, which acts as a second drainage level, closes the gaps between trades that otherwise occur. Because of this, Schüco Perfect is cross-trade and has completely reliable interfaces. As the Schüco Perfect unit can be designed using the same attachment details despite the wide variety of possible configurations, the planning of the entire building project is significantly more simple and reliable.

The execution of the construction project is also more efficient because everything is combined into one system or trade. The standardised external attachment enables serial installation, so even large construction projects can be implemented quickly and cost-effectively.

All of the system components can be adjusted, upgraded and replaced, meaning that in the event of a conversion, an external blind could be exchanged for a roller shutter.

  • Can be used for new builds and renovation projects
  • A unique and fully integrated overall architectural concept with maximum standardisation
  • Quick and simplified implementation planning thanks to the modular system
  • Can be flexibly adapted to the installation scenario with maximum individuality
  • High degree of planning reliability and minimal planning work
  • One surface finish for all building parts and no colour or texture differences thanks to the uniform coating
  • All of the fixings are concealed (no visible drainage holes or screw fixings)
  • Very narrow face widths and maximum glass surfaces

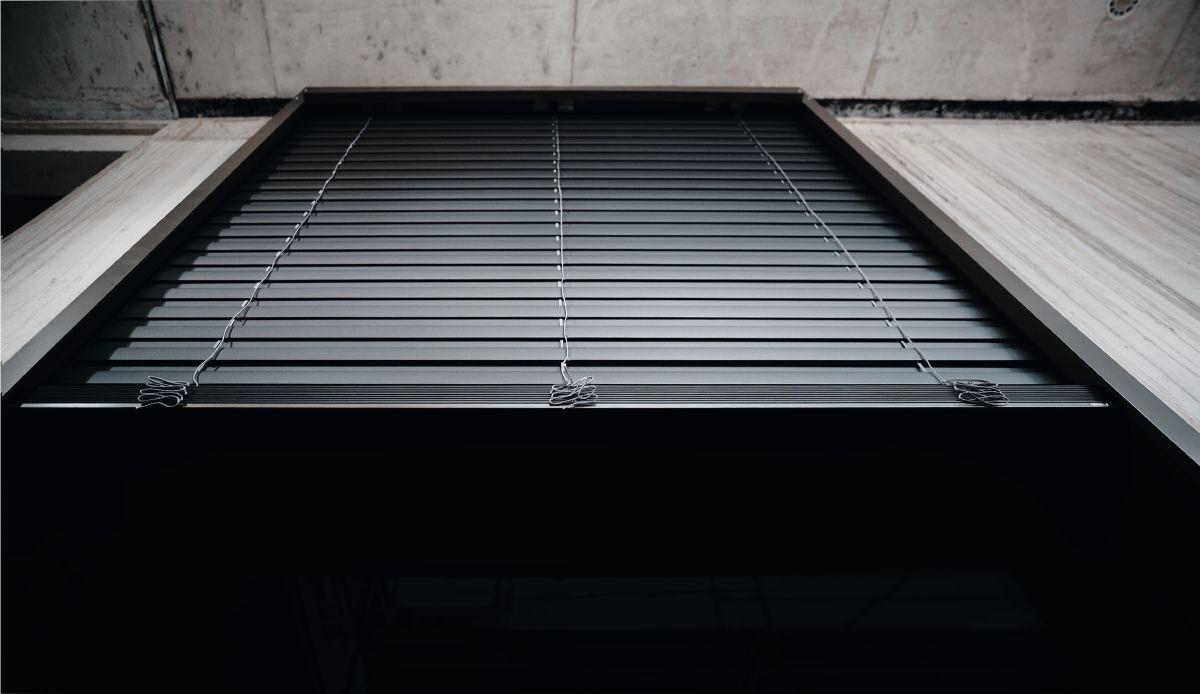

  • Components that can be upgraded and retrofitted: Sun shading (external blind, roller shutter and zip screen) and flyscreens (vertical roller blinds or horizontal sliding pleated blinds)
  • Perfect modularity – both on the outside thanks to a wide range of accessories, and on the inside through the selection of the right material for the respective building project
Min. face width
57 mm
Max. glass/panel thickness
52 mm
Burglar resistance
Up to RC 2
CE marking
Yes
Max. vent weight
120 kg
Min.-max. glass/panel thickness
24...52 mm
Barrier-free (≤) 20 mm
Yes
Zero-level threshold
Yes
Area of application
Residential projects, Commercial projects
Surface finishes
Powder, Anodised, Paint
Glass composition
Triple glazing
Barrier-free operating forces in accordance with DIN 18040
Yes
Opening type: manual, inward-opening
Turn/tilt, Side-hung, Bottom-hung, Fixed light
Drainage levels
3
Integrated sun shading
Yes
Security glazing
Yes
Suitable for safety barrier loading
Yes
