Ideal for warmer climate zones – non-insulated, multifunctional and efficient
As a non-insulated door system, Schüco ADS 65.NI (Non Insulated) is the system of choice for use in warmer climate zones when versatility, design and efficiency are required. Equipped with various components for security and comfort, the aluminium system can also be used as a multifunctional door, optionally integrated in building security and automation systems.
As a bonus, the door system has a wide range of possible uses and designs, including options for the interior: from side-hung, swing and opposed opening doors to stylish all-glass doors. Design components such as standard and angled glazing beads as well as central glazing additionally offer greater architectural freedom.
Homogeneous security solutions are also ensured thanks to compatibility with Schüco systems: Schüco ADS 65.NI, with its identical face widths, can be seamlessly combined with smoke and fire doors.

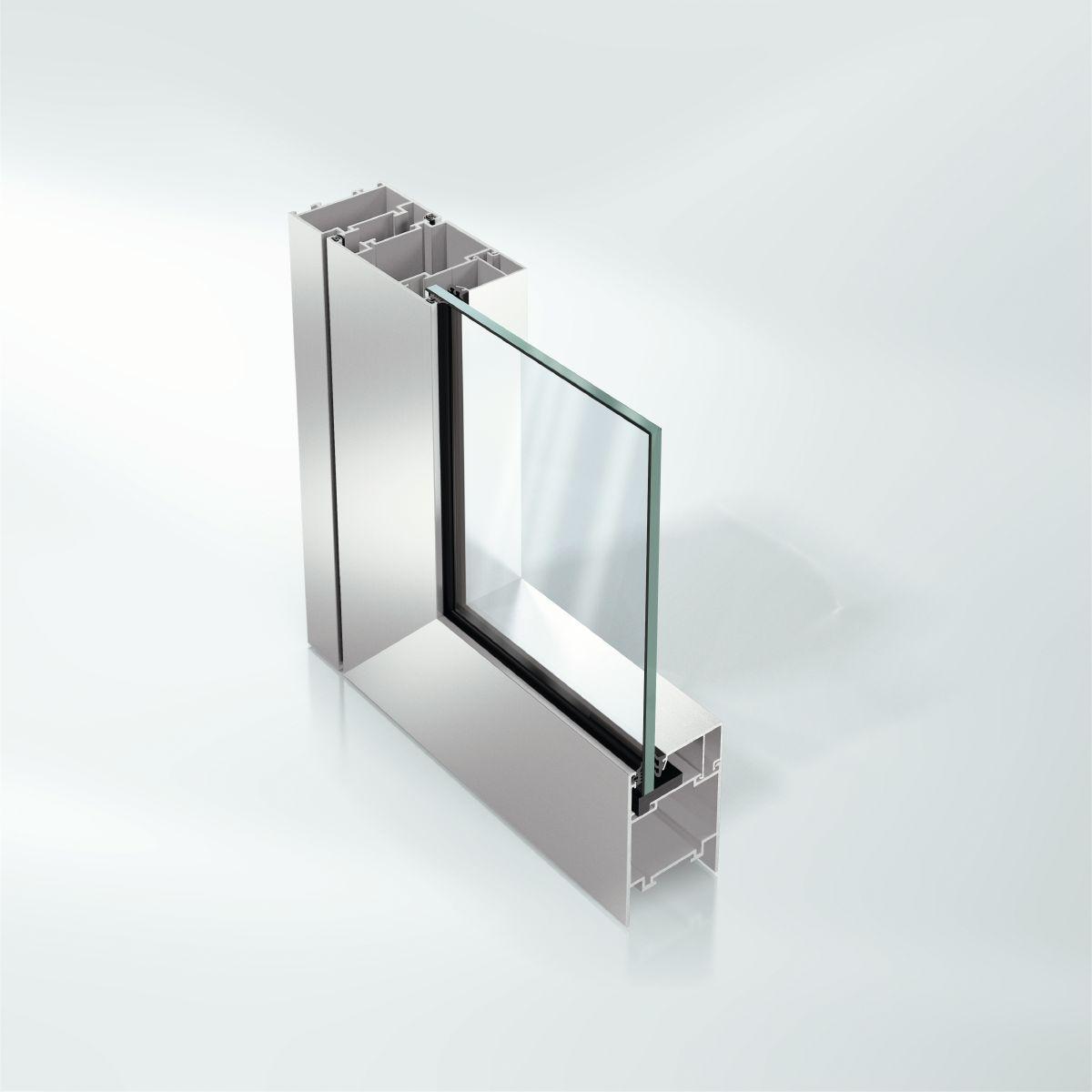

Schüco ADS 65.NI, non-insulated aluminium door and partition wall system
With 65 mm basic depth.
Design features:
The construction is flush-fitted on the outside and inside.
The system must be fitted with square glazing beads.
The door leaves must have a four-sided mitre-cut leaf profile.
The sill is sealed by a gasket that falls into place automatically when the door is closed.
Depending on requirements, a threshold profile and a gasket with lips can also be used.
Profile basic depths:
Outer frame, transom, mullion,
leaf frame and sill 65 mm
Profile face widths:
Outer frame, side / top 59 mm
Outer frame extension 34 mm
Mullion 84 mm
Transom 84 mm
Leaf frame (door) 98 mm
Continuous sill rail 98 mm
Sill 142 mm
