Schüco Door System AD UP Design Edition

Design door for the most demanding requirements in terms of aesthetics and function

Function meets design – the Schüco AD UP Design Edition door system combines a high-quality appearance with convenience for users, for aluminium door solutions which meet any challenge.

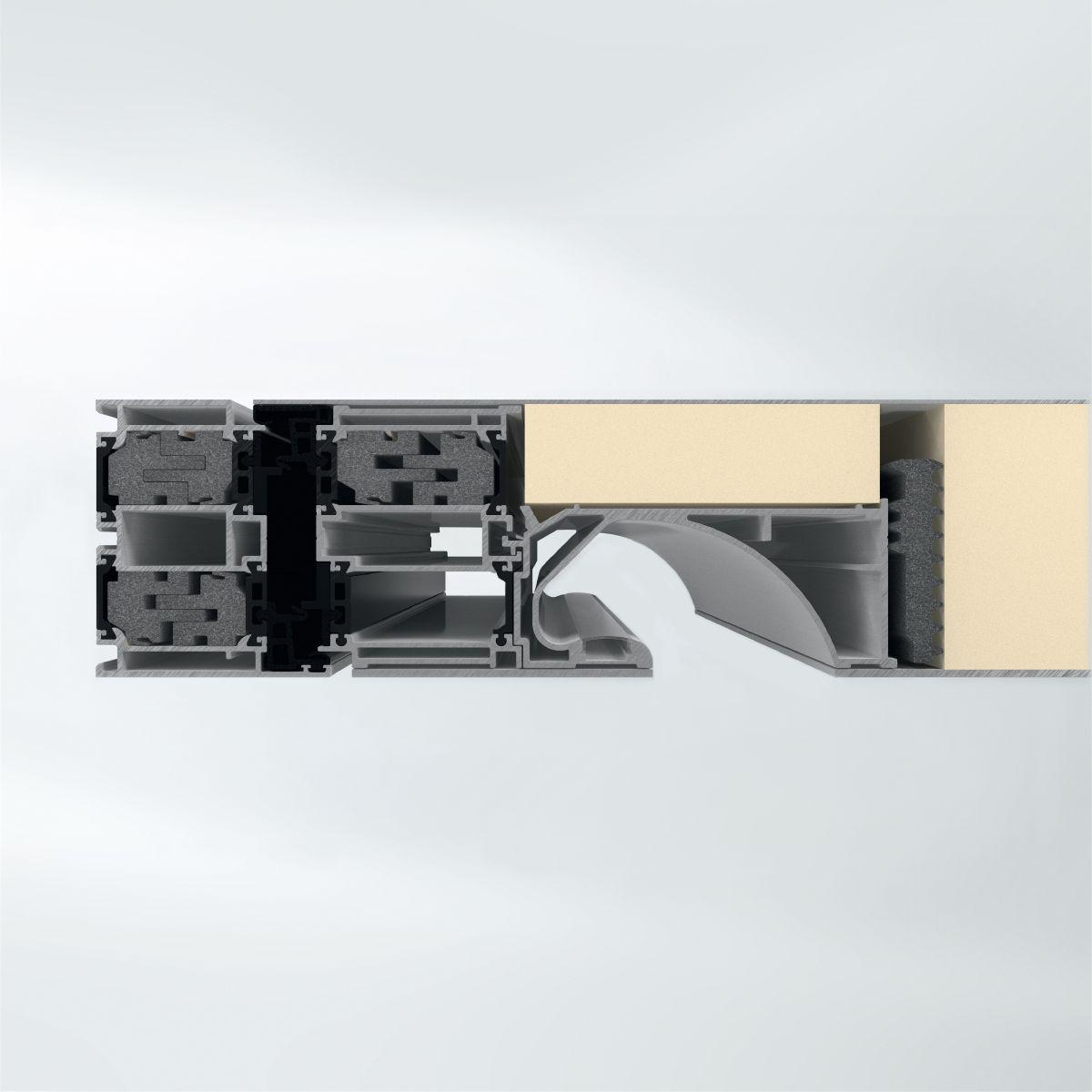

The elegant flush pull grip with homogenous LED illumination gives an impression of grace, while the combination of leaf-enclosing door infills with a high-quality, flush-fitted appearance and the seamless integration of the design profile in the leaf fulfil the highest architectural requirements.

New to the system portfolio: design options integrated in the door infill for all system basic depths offer developers, architects and client additional choices.

All door versions can be designed inward or outward-opening as desired.

Planning benefit

High-quality design feature: fully profile-integrated aluminium door pull with indirect illumination
Integration of modern Schüco door communication and access control systems: e.g. through flush-fitted integration of the Schüco Door Control System (DCS)
Continuous double centre gasket: excellent insulation and sealing properties

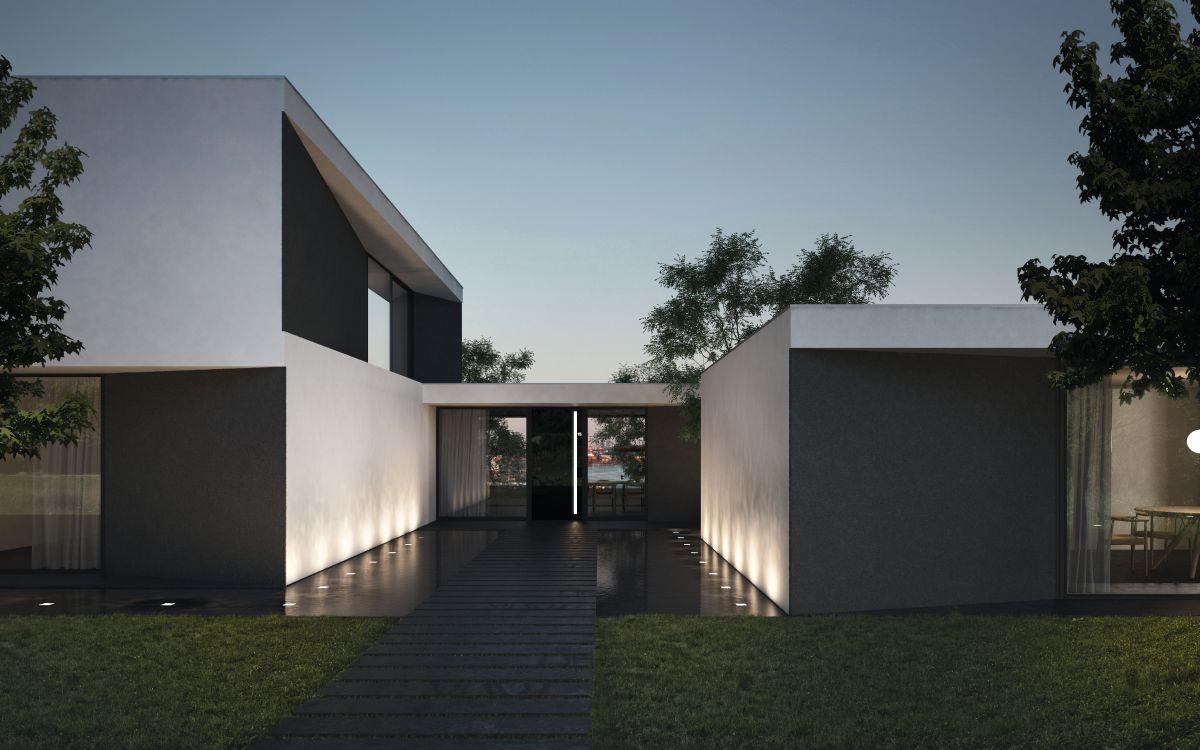

Illuminated flush pull grip: LED strip with various colour temperatures in cold white and warm white

Technical information

CE marking

Yes

Barrier-free (≤) 20 mm

Yes

Area of application

Residential projects, Commercial projects

Concealed fittings system

Yes

Mechanical strength

Class 3

Proof of durability

Class 7, Class 8

FUNCTIONS

Single-vent, Double-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left

Max. width

2500 mm

Max. height

1250 mm

Opening type

Side-hung, Inward and outward, Single and double-vent

CE marking

Yes

Min.-max. height

0...2500 mm

Min.-max. width

0...1250 mm
