Thermally insulated multi-purpose door with timeless design
The Schüco ADS 70.HI (High Insulated) door system combines outstanding thermal Insulation with the benefit of attractive design and fittings options. Thanks to a variety of design options, the aluminium door system can be implemented as a multifunctional door – optionally integrated in building security and automation systems.
It is distinguished by its timeless design, including an SL (Soft Line) version with rounded leaf contours, and can be effortlessly combined with Schüco façade and window systems.
Integrated in a sustainable building concept, the thermally insulated door system is an important step in improving the energy balance of the property while offering maximum design freedom.

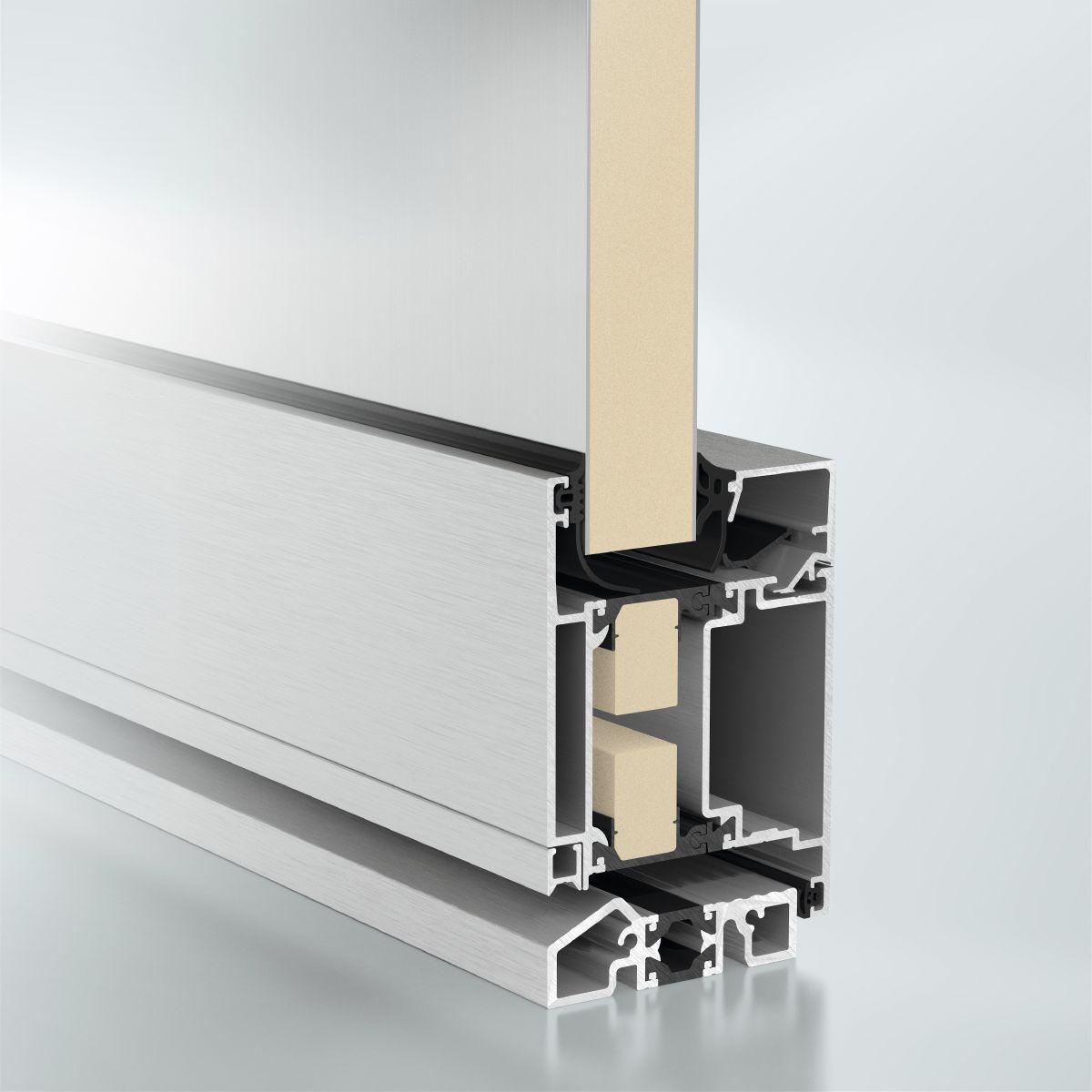

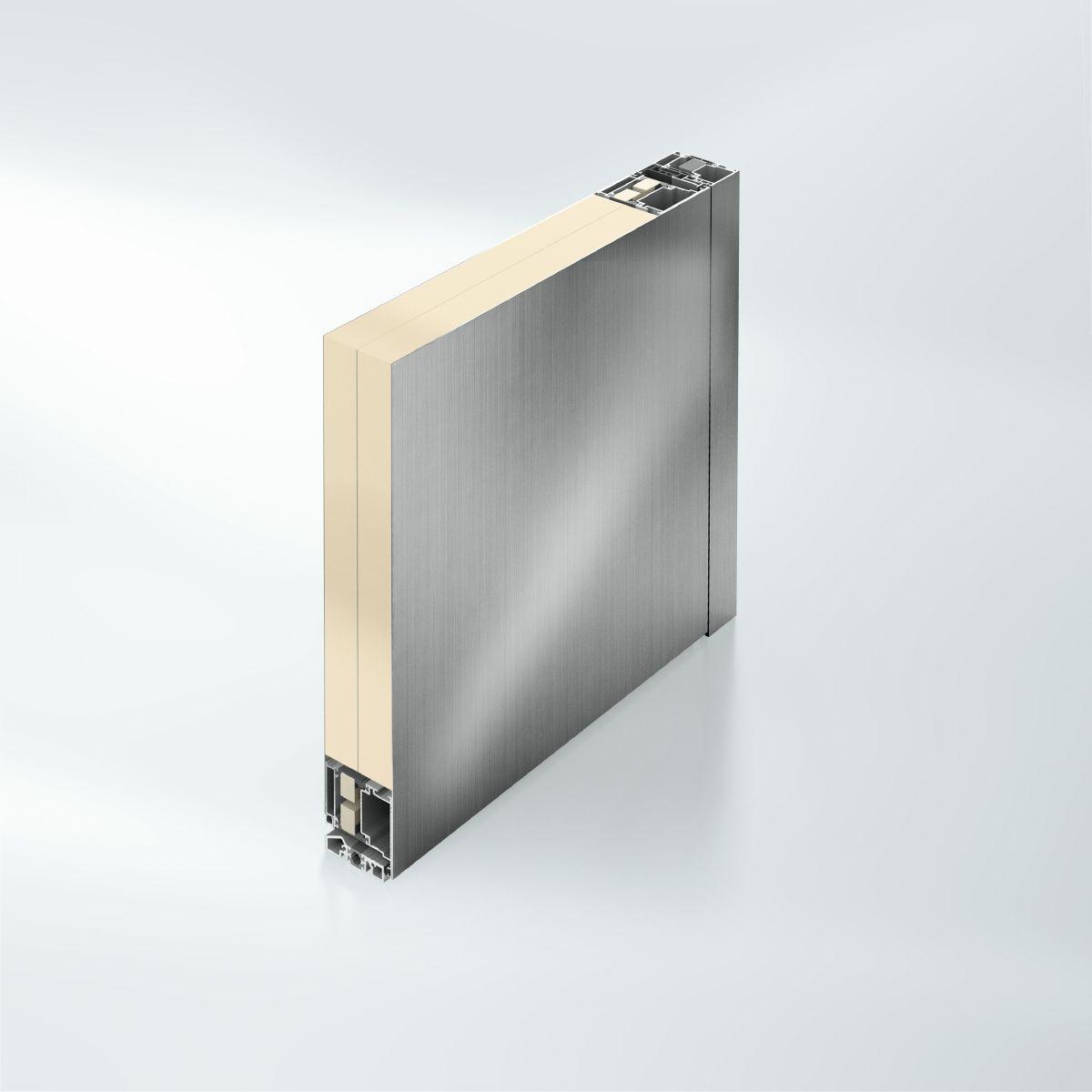

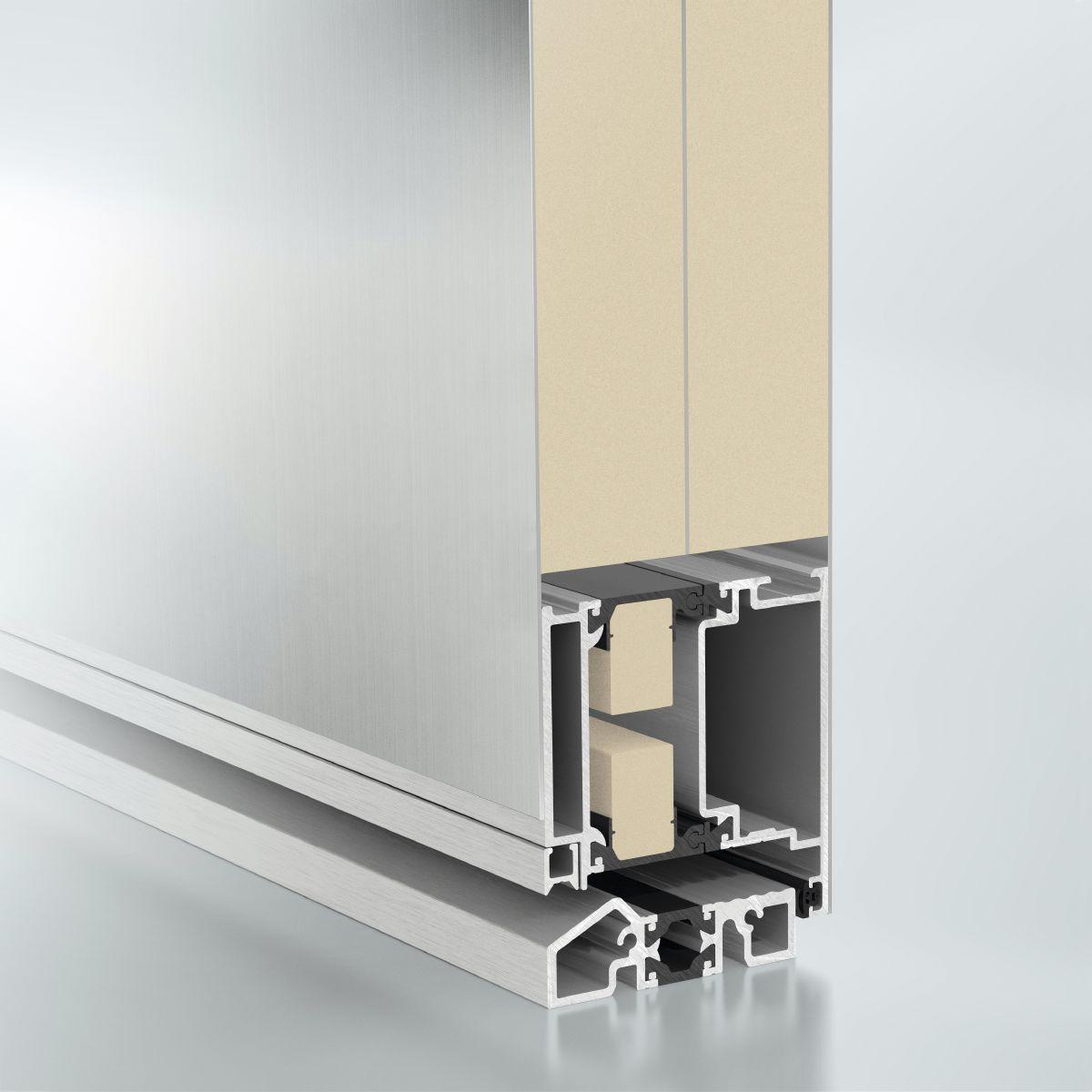

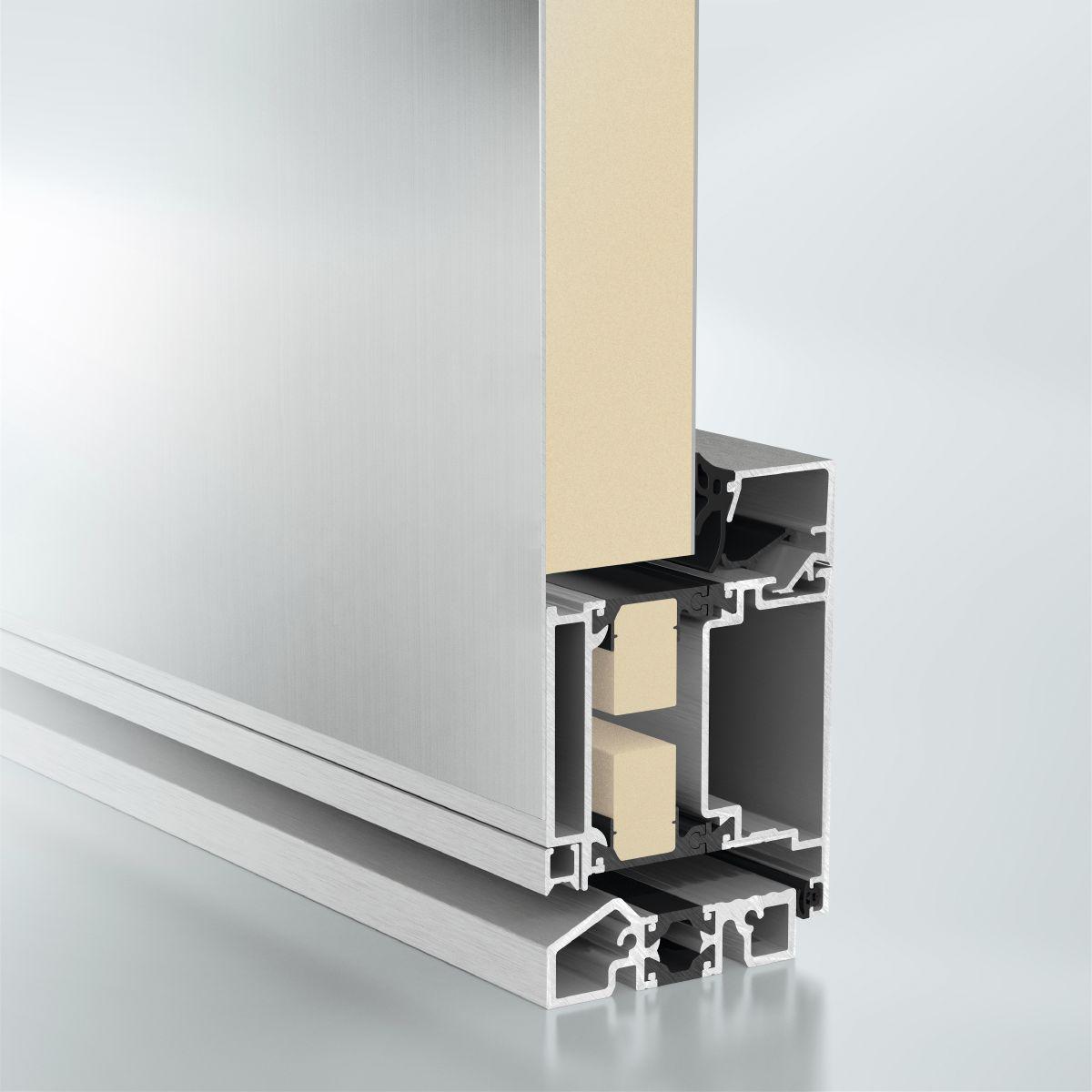

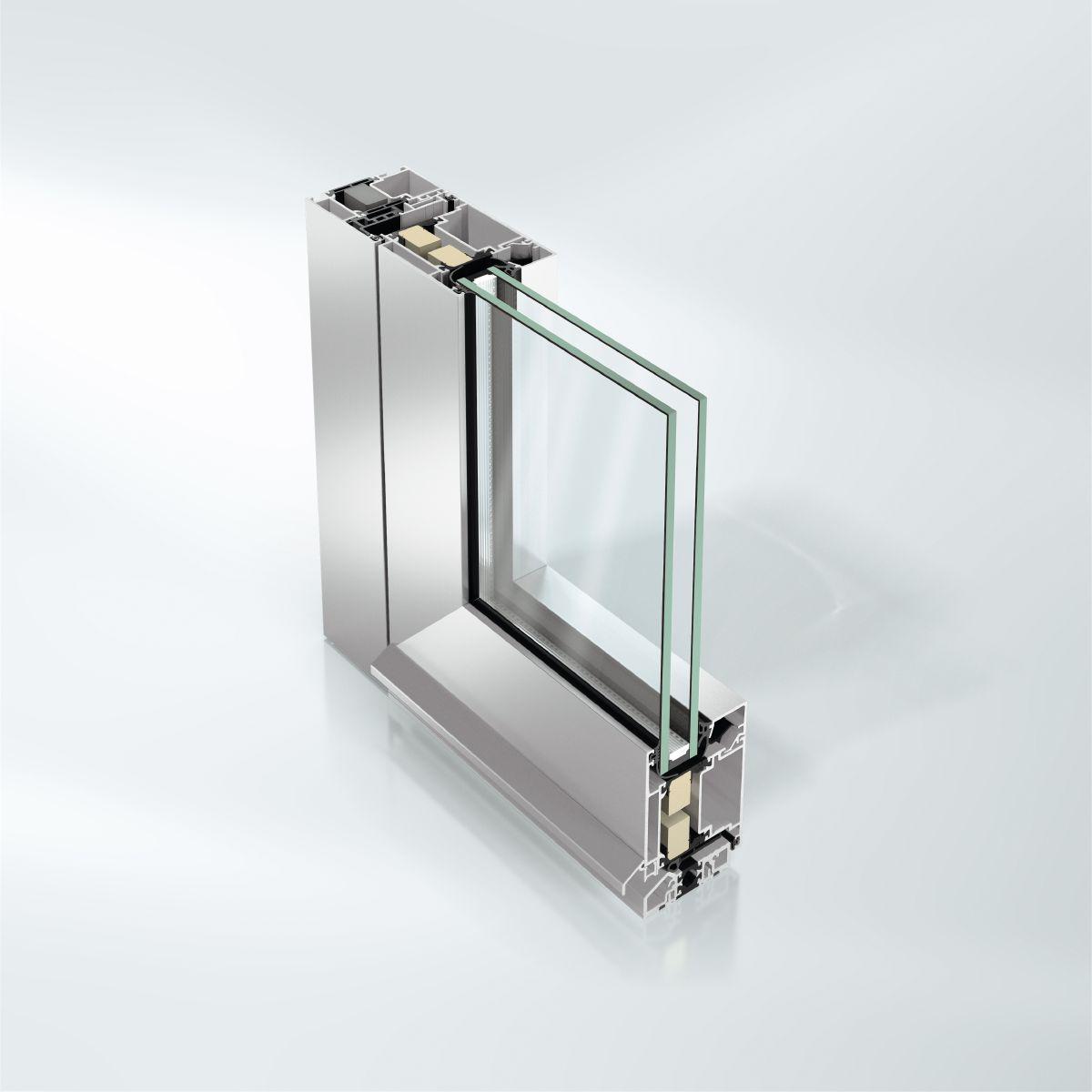

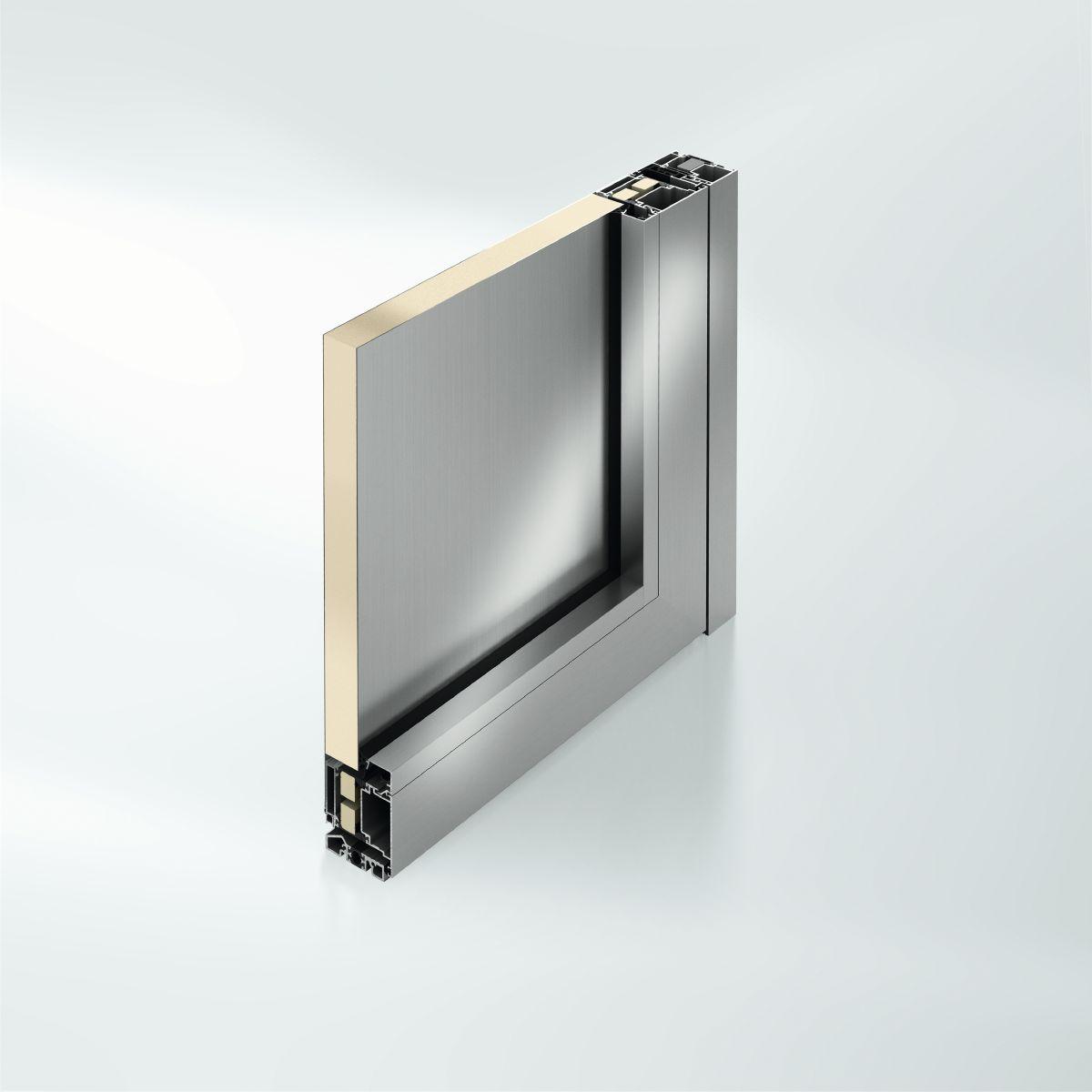

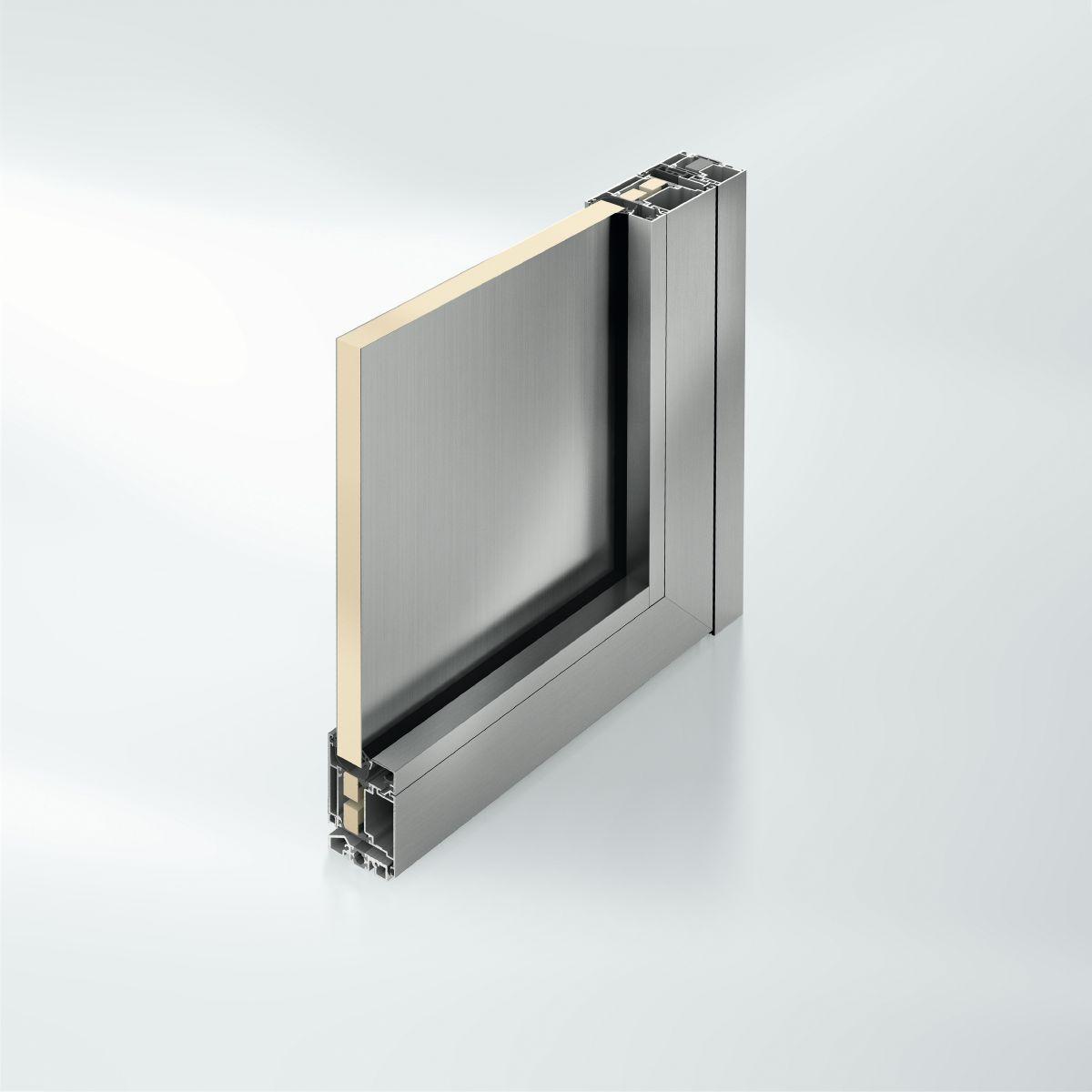

Schüco ADS 70.HI, highly thermally insulated aluminium door system
With 70 mm basic depth.
Design features:
Internal and external flush-fitted door constructions with 5 mm shadow joint on both sides; with 11 mm shadow joint for double-leaf panic doors.
The thermal breaking split insulating bars are fitted with foam insulation for high thermal insulation.
The door leaf profiles are fitted with thermal breaking split insulating bars.
The door leaves must have a four-sided mitre-cut leaf profile.
The system must be fitted with square glazing beads.
For increased thermal insulation, glazing gaskets with fins must be used.
If there are no other requirements specified for the sill by standards / guidelines / local building regulations, the bottom door sill must be fitted with an aluminium/plastic rebate threshold, height 20 mm, and a gasket system for sealing at a test pressure of up to 150 PA in accordance with DIN EN 12208.
Profile basic depths:
Outer frame, mullion, transom 70 mm
Leaf frame (door), flush-fitted 70 mm
Leaf frame (door) with internal rebate 80 mm
Profile face widths:
Outer frame / sill, bottom 106 mm
Outer frame, side and top 79 mm
Mullion 94 mm
Transom 94 mm
Inward-opening leaf frame,
flush-fitted inside and outside,
continuous 73 mm
Outward-opening leaf frame,
flush-fitted inside and outside,
continuous 98 mm
Leaf frame
(Door, with internal rebate) 73 mm
Meeting stile profile 65 mm
Leaf mid-rail 94 mm
