Schüco Door System AD UP 90

Pioneering, high-performance door system for residential and commercial buildings

Designed for the most demanding project-specific solutions in residential and commercial construction: the highly stable Schüco AD UP 90 door system with a 90 mm basic depth is based on a triple-shell construction principle and uses a double central gasket system that ensures the best energy efficiency, insulation and weathertightness properties.

The system guarantees maximum design and planning freedom in implementing functional, comfort and design oriented door solutions for all areas of application, e.g. as a front entrance with leaf-enclosing infills, concealed door hinges and concealed, integrated door communication systems.

Planning benefit

Triple-shell profile composition ensures maximum stability and functional reliability
Excellent thermal insulation
Mechanical durability tests up to 1 million cycles ensure a long service life and a high load-bearing capacity
Range of vent types, concealed hinges in combination with door communication and access control for high degree of planning freedom
Proven system security and comfort
Continuous double centre gasket: excellent insulation and sealing properties

Technical information

Barrier-free (≤) 20 mm

Yes

Zero-level threshold

Yes

Concealed fittings system

Yes

Certificates

cradle2cradle SILVER

Max. width

1250 mm

Max. height

2500 mm

Opening type

Side-hung, Inward and outward, Single and double-vent

CE marking

YES

Min.-max. height

...2500 mm

Min.-max. width

...1250 mm

Gallery

Specification texts

Schüco AD UP 90, highly thermally insulated aluminium door system
with a basic depth of 90 mm.

Design features:

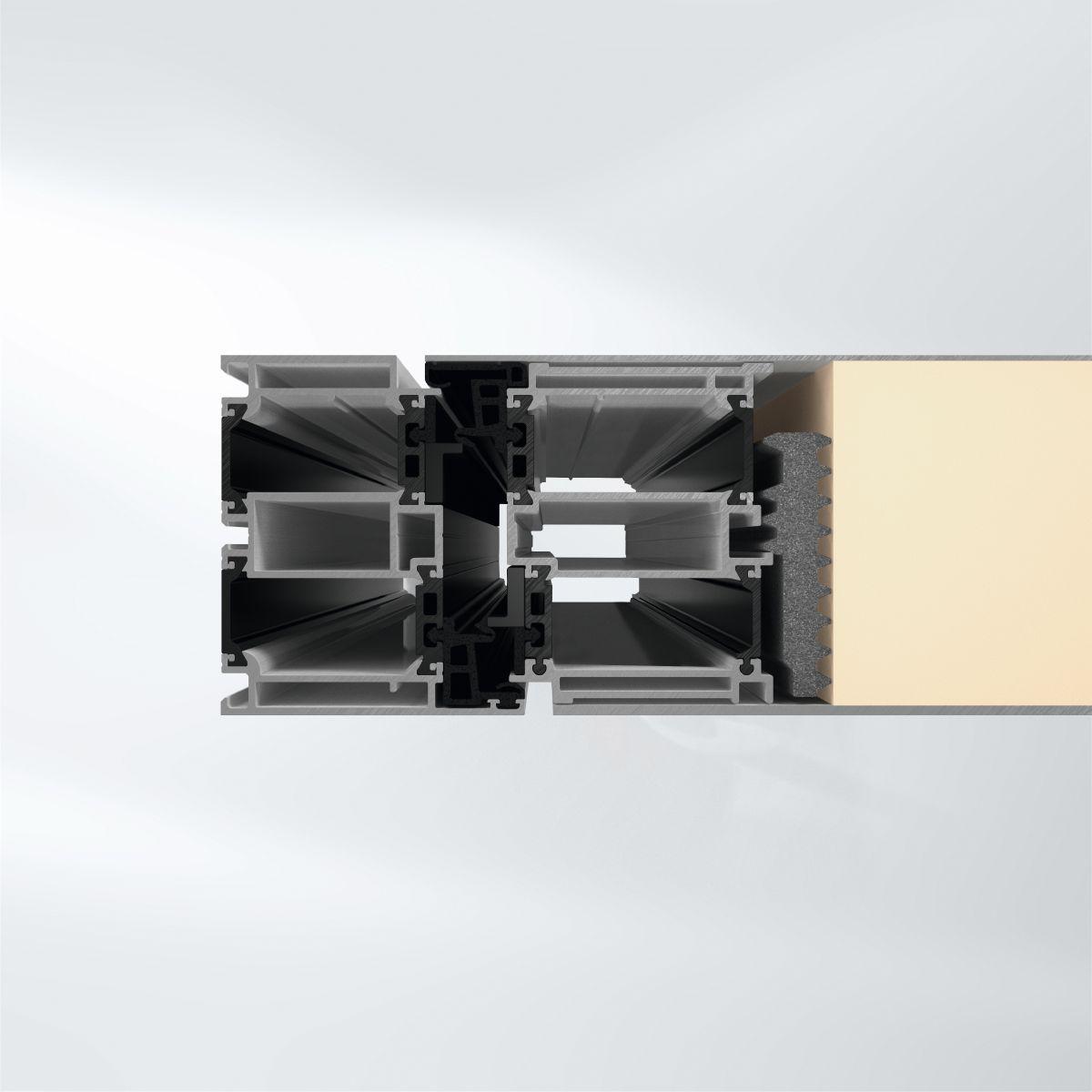

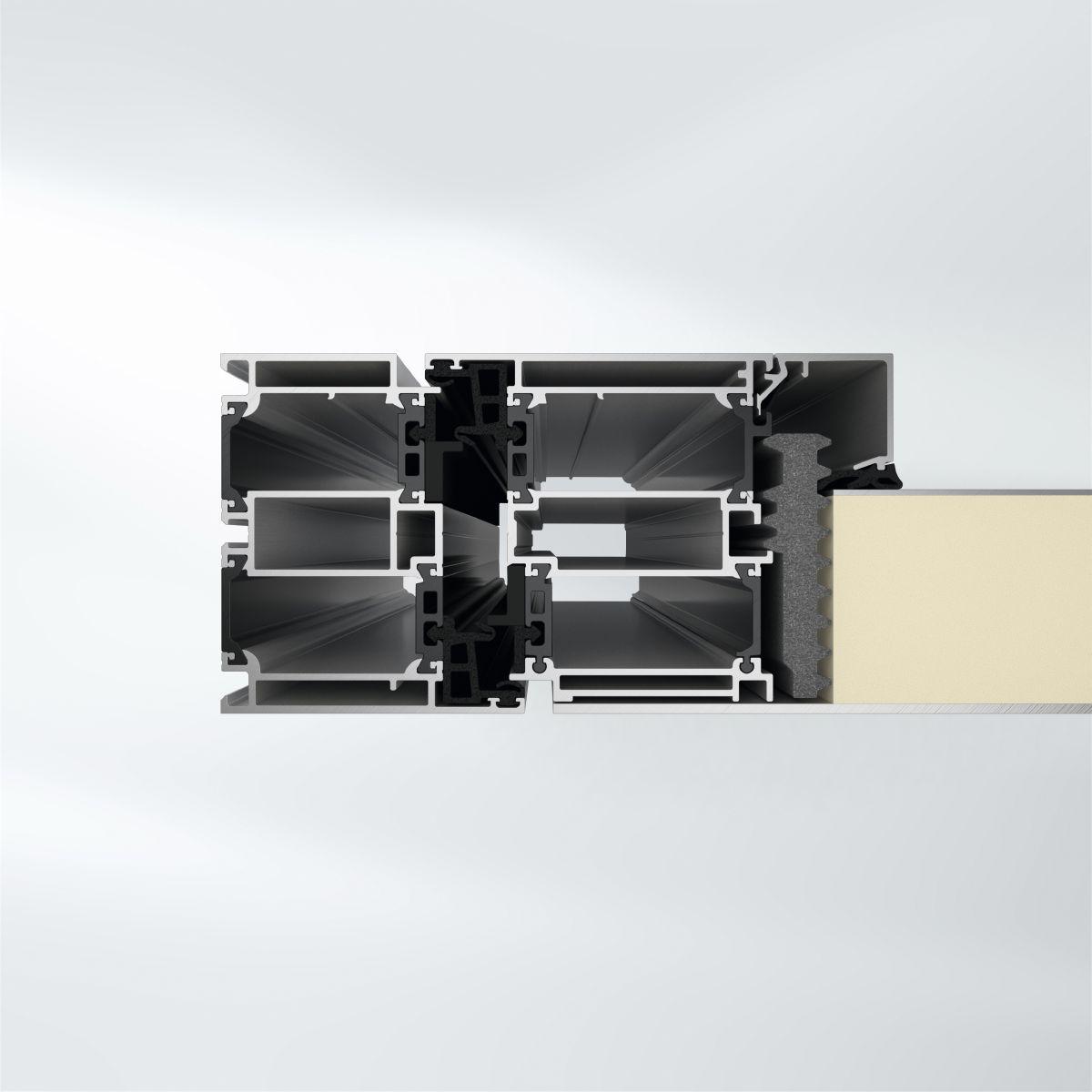

Externally flush-fitted door construction with continuous 7 mm shadow gap on the outside.

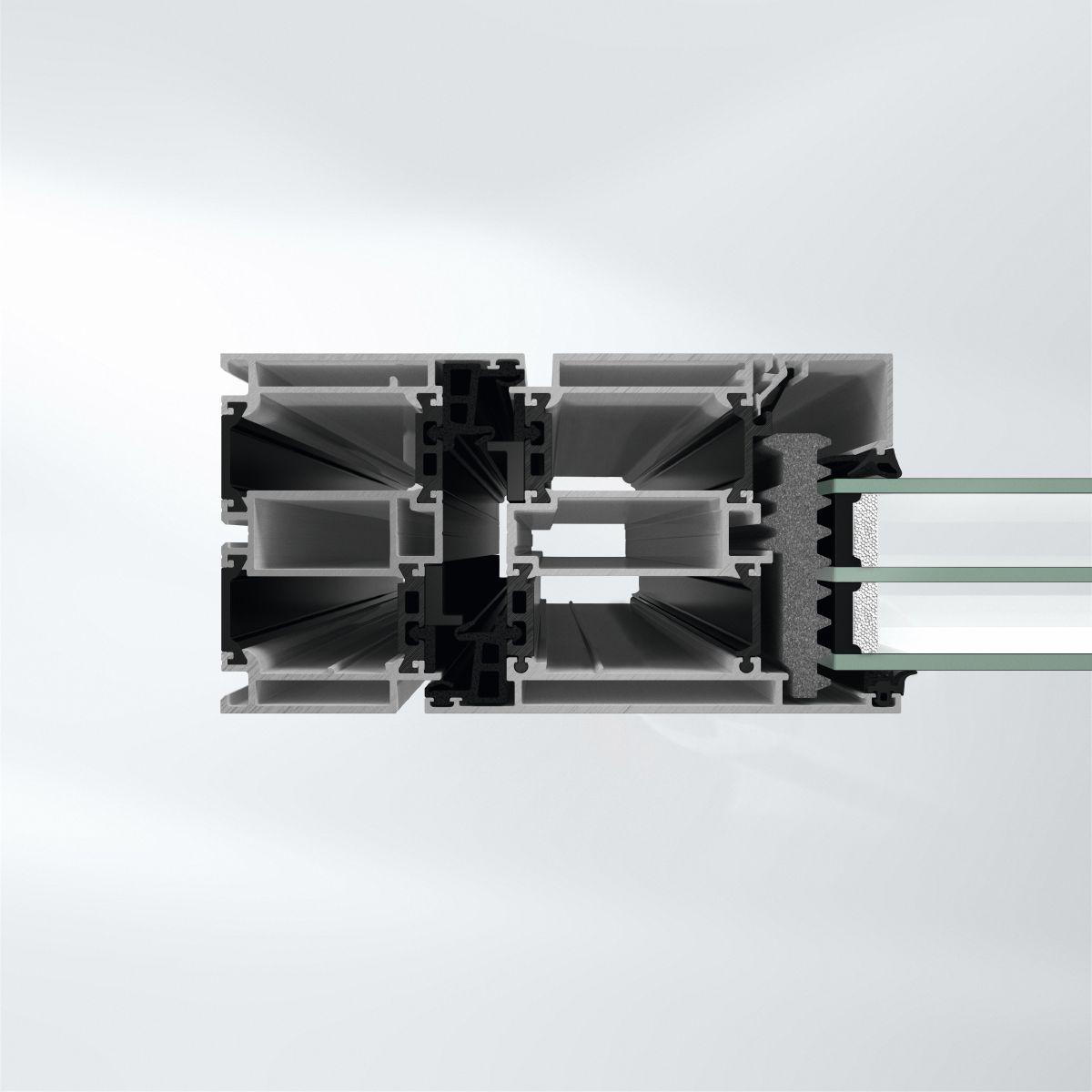

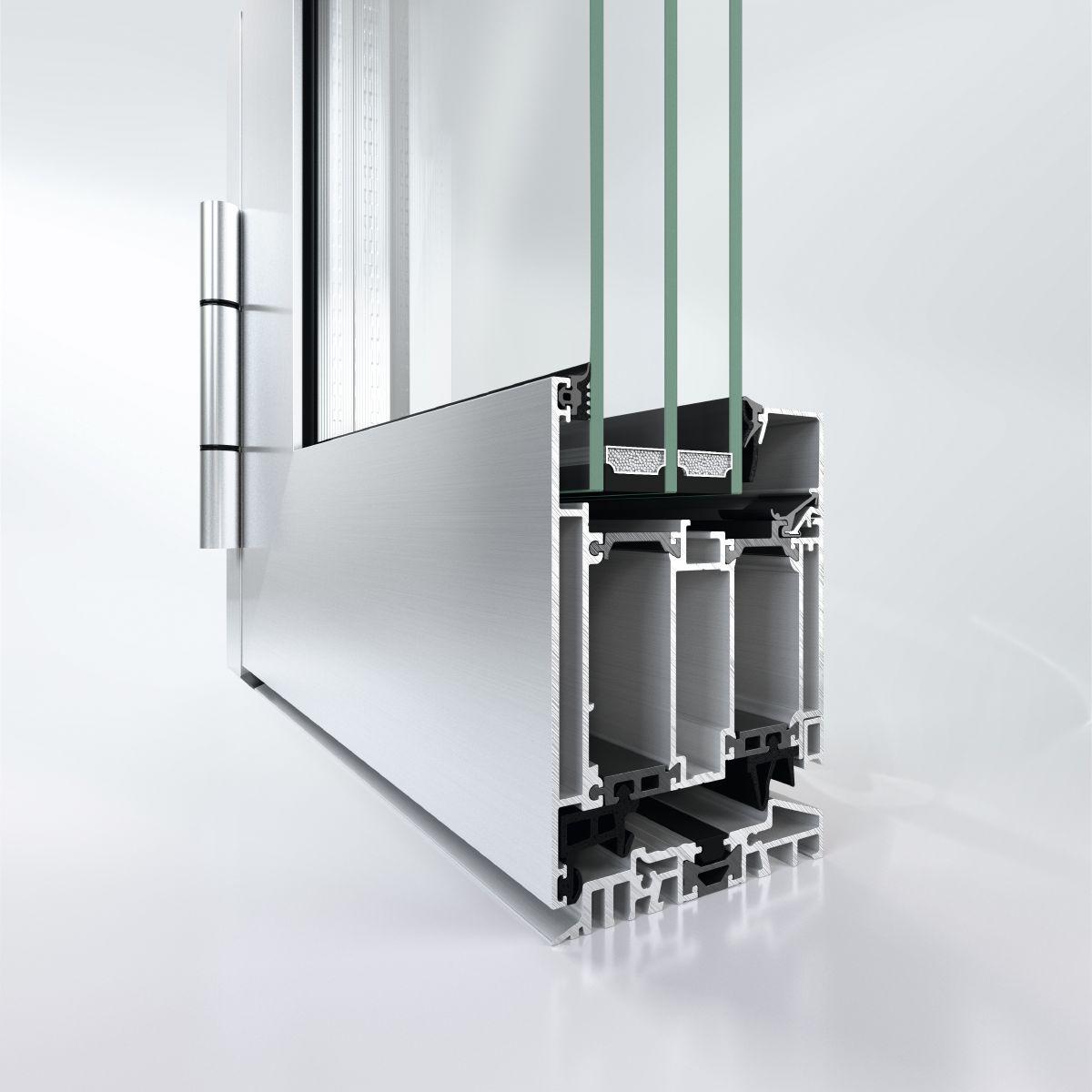

Five-chamber profile construction, arranged symmetrically, consisting of three aluminium shells which are joined by means of special insulating bars without insulating foam.
As hybrid insulating bars with a large fixed proportion between the inner and centre shells and a decoupled outer shell, the door leaf profiles must be designed with “split insulating bars”.
The decoupling must take place between the outer aluminium shell and the insulating bar to reduce the bi-metallic effect.
The door leaves must have a four-sided mitred leaf profile.
The sealing is carried out by two centre gaskets and two rebate gasket levels.
The fittings are installed in the aluminium centre shell, not in the insulating bar.
An attachment to building structure is possible in the middle of the profile via the centre shell.
If there are no other requirements specified for the sill by standards / guidelines / regional building regulations, the bottom door sill must be fitted with a stabilising, thermally broken aluminium threshold in between and corresponding water-resistant moulded pieces.

Profile basic depths:
Outer frame, mullion, transom 90 mm
Leaf frame (door) 90 mm

Profile face widths:
Insert outer frame, inward-
opening door 63 mm
Insert outer frame, outward-
opening door 37 mm
Outer frame / sill, bottom 127 mm
Outer frame, side and top 76 mm
Mullion 108 mm
Transom 108 mm
